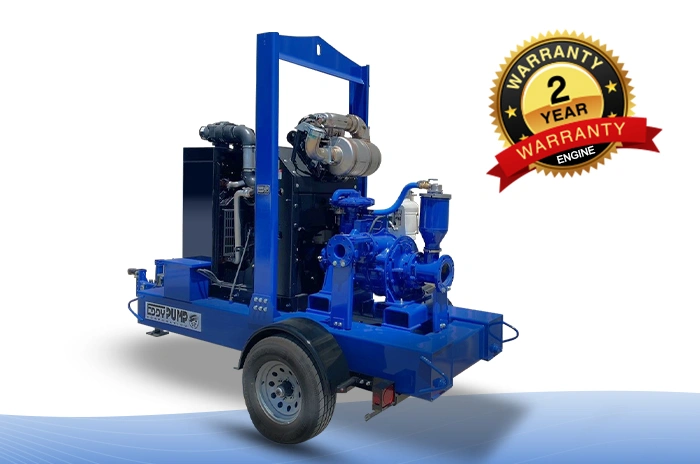

Self-Priming Pump – 6 Inch 118/125-HP
The 6-Inch DSP/HD 6000 Self-Priming Slurry Pump is a rugged, high-capacity workhorse engineered for the heavy-duty pumping of abrasive, high-solids slurries. Driven by a Tier III John Deere 118–125 HP diesel engine, it delivers 450–2,000 GPM at up to 200 ft head. Featuring an 8″ suction, 6″ discharge, and the ability to pass solids up to 5″, this trailer‑mounted unit eliminates clogs and downtime. Built with heavy-duty components—high-chrome, stainless rotor and volute, chromemoly shaft, dual mechanical seals—it’s designed for mining, dredging, wastewater, slurry, and abrasive industrial fluids
Key Features
- Heavy-Duty Pumping Power: Powered by a 118/125 HP John Deere Tier III turbo diesel engine designed for continuous-duty operation.
- High Flow Capacity: Flow rates ranging from 450 to 2000 GPM to meet diverse job site needs.
- Exceptional Solids Handling: Easily passes up to 5-inch solids, reducing the risk of clogging or system downtime.
- Vacuum-Assisted Self-Priming: Dry-start capable with vacuum-assisted priming chamber that automatically removes air from the suction line.
- Robust Construction: High chrome and stainless steel components resist wear from abrasive slurries and harsh environments.
- Built for Mobility: Mounted on a 6K DOT-compliant trailer with heavy-duty tires, lighting package, and lifting jacks for on-site deployment.
- Fuel Efficient Operation: Optimized fuel burn of 6–7 gallons per hour, with a 96-gallon integrated tank for extended runtime.
- Integrated Monitoring: Includes a fuel electronic control panel, flow gauge, work light, and lifting bail.
- Customizable Options: Available with optional metallurgy, electric power units, and trailer or skid mount configurations.
- Made in the USA: Designed, engineered, and manufactured by EDDY Pump in California.
6-inch self-priming slurry pump in
real world applications
How the Pump Works
The key differentiator of this system lies in its patented vacuum-assisted self-priming chamber. On startup, the chamber uses vacuum pressure to evacuate air from the suction hose, drawing fluid into the pump body without manual priming or flooding. Once primed, the pump operates continuously, pushing fluid through the discharge line even in fluctuating conditions. This design eliminates the need for foot valves or complex priming systems, significantly reducing operator workload and risk of failure.
Built for Real-World Use
Here’s what makes it user-friendly:
Starts Automatically
No need to pour water into the pump before use. Just start the engine, and it handles the rest.
Moves Big Debris
Can handle rocks, sand, and sludge, up to 5 inches in size, without getting jammed.
Runs All Day
With a large fuel tank, it can run for 12 to 16 hours straight without needing a refill.
Easy to Tow
Mounted on a rugged trailer, it’s ready to hitch to a truck and move to any job site.
Made for Harsh Jobs
Built strong to perform in construction, mining, dredging, and stormwater projects.
Technical Specifications
- Engine: John Deere 6068HF285 – Tier III, turbocharged, 118–125 HP at 2200 RPM
- Flow Rate: 450–2000 GPM
- Discharge Head: Up to 200 feet
- Suction Size: 8 inches
- Discharge Size: 6 inches
- Solids Handling: Up to 5 inches in diameter
- Slurry Concentration: Handles 40–70% solids by volume
- Seal Type: Dual tungsten or silicon carbide mechanical seals with self-contained flush
- Materials: Rotor and volute available in high chrome, ductile iron, stainless steel, or duplex stainless steel
- Fuel System: 96-gallon tank, approx. 6–7 GPH at full load
- Mounting: Single axle 6K DOT trailer, with heavy-duty hitch, D-ring tie-downs, and lifting bail
STANDARD CONFIGURATION – 6-INCH SELF-PRIMING SLURRY PUMP
- 6-Inch EDDY slurry pump
- 118/125 HP John Deere Tier III diesel engine
- 6K single axle trailer with 16” 10-ply tires
- Integrated 96-gallon fuel tank
- 3-position 2-5/16 HD hitch
- DOT lighting and brake package
- Integrated work light and flow meter
- Dual 8K leveling jacks and lifting bail
- D-Ring tie downs for secure transport
PUMP SPECS
| MIN FLOW | 450 GPM |
| MAX FLOW | 2000 GPM |
| HEAD RANGE | Up to 200 ft |
| DISCHARGE SIZE | 6 inch |
| SUCTION SIZE | 8 inch |
| SOLIDS HANDLING | Solids up to 5 inches |
| MAX SPEED | 1800 RPM |
| PERCENT SOLIDS | Up to 40-70% Solids |
Performance Highlights
- Handles 40 to 70% solids by volume. Ideal for abrasive slurry and tailings.
- Passes solids up to 5 inches. Designed to eliminate clogging in demanding field conditions.
- Delivers 12 to 16 hours of runtime with a built-in 96-gallon fuel tank.
- Vacuum-assisted self-priming. No manual priming or foot valve required.
- Modular and customizable. Choose from trailer or skid mount.
- Engineered for uptime. No close tolerances, patented rotor, and dual mechanical seals.
| PARTS | STANDARD MATERIALS |
| ROTOR | High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless - Various sizes and custom metals available |
| VOLUTE CASING | High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless - Custom metals available |
| SHAFT | Chromoly or Stainless Steel |
| MECHANICAL SEAL | Dual Tungsten or Silicon CarbideMechanical Seal with Self Contained Seal Flushing System |
| BEARING HOUSING | Ductile Iron or Stainless Steel |
ENGINE SPECS
- 118 / 125HP (93kW) Tier III John Deere Diesel Engine – Model 6068HF285 – 2200 RPM•
- Liquid Cooled, 12 Volt Power In-Line 4 Cycle Turbo Charge Diesel
- Electronic Fuel System
- Fuel Electronic Instrumental Control Panel
- 2 Year 2000-Hour Warranty
Pump Curve & Performance Insight
ENGINE PERFORMANCE DATA
| Model | Discharge Size | Suction Size | Power | Flow Range (GPM) | Head Range (ft) | Solids Handling | % Solids by Weight | Max Speed (RPM) | |
|---|---|---|---|---|---|---|---|---|---|
| DSP/HD 3000 | 3" | 4" | 43 HP | 100 - 780 | Up to 130 | Up to 2" | 40-70% | 1800 | ENG |
| DSP/HD 4000 | 4" | 6" | 43 HP | 250 - 1200 | Up to 200 | Up to 3" | 40-70% | 1800 | ENG |
| DSP/HD 4000 | 4" | 6" | 115 HP | 250 - 1200 | Up to 200 | Up to 3" | 40-70% | 1800 | ENG |
| DSP/HD 6000 | 6" | 8" | 115 HP | 450 - 2000 | Up to 200 | Up to 5" | 40-70% | 1800 | ENG |
| DSP/HD 6000 | 6" | 8" | 173 HP | 450 - 2000 | Up to 200 | Up to 5" | 40-70% | 1800 | ENG |
| DSP/HD 8000 | 8" | 10" | 550 HP | 1600 - 5000 | Up to 240 | Up to 7" | 40-70% | 1200 | ENG |
| DSP/HD 10000 | 10" | 12" | 550 HP | 1600 - 5000 | Up to 240 | Up to 9" | 40-70% | 1200 | ENG |
| DSP/HD 12000 | 12" | 14" | 700 HP | 2600 - 7300 | Up to 180 | Up to 11" | 40-70% | 900 | ENG |
Self-Priming Pump Comparison Table
| Model | Size (inches) | HP | Min Flow (GPM) | Max Flow (GPM) | Head Range (ft) | Discharge Size (inches) | Suction Size (inches) | Solids Handling (inches) | Max Speed (RPM) | Percent Solids | Fuel Consumption (GPH) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DSP/HD 3000 | 3 | 43 | 100 | 780 | 130 | 3 | 4 | 3 | 1800 | 40-70% | 1.8 |
| DSP/HD 4000 | 4 | 43 | 250 | 1200 | 200 | 4 | 6 | 3 | 1800 | 40-70% | 1.8 |
| DSP/HD 4000 | 4 | 115 | 250 | 1200 | 200 | 4 | 6 | 3 | 1800 | 40-70% | 6.6 |
| DSP/HD 6000 | 6 | 115 | 450 | 2000 | 200 | 6 | 8 | 5 | 1800 | 40-70% | 10.3 |
| DSP/HD 6000 | 6 | 173 | 450 | 2000 | 200 | 6 | 8 | 5 | 1800 | 40-70% | 10.3 |
| DSP-8000 | 8 | 550 | 1600 | 5000 | 240 | 10 | 12 | 10 | 1200 | 40-70% | nan |
| DSP-10000 | 10 | 550 | 1600 | 5000 | 240 | 10 | 12 | 10 | 1200 | 40-70% | nan |
| DSP-12000 | 12 | 700 | 2600 | 7300 | 180 | 12 | 14 | 12 | 900 | 40-70% | nan |
Industrial Applications
Mining & Mineral Processing
Dredging Projects
Wastewater Treatment
Construction Dewatering
Agriculture
Municipal Stormwater Projects
Food and Pulp Industries
Typical Fluids Pumped
- Thick, abrasive slurries
- High-viscosity sludge
- Wastewater with suspended solids
- Tailings and process waste
- Sand and sediment-laden water
- Chemical and food processing waste
- Oilfield drilling muds
- Agricultural manure slurry
Why Choose EDDY Pump?
- Patented Non-Clog Technology: Moves solids up to 5 inches without risk of jamming.
- Made in the USA: Designed and built in California with full customer support.
- Trailer-Mounted Versatility: Deploys quickly to any job site with DOT-compliant trailer.
- Dual Seal Protection: Dry-run capable for tough field conditions.
- Modular & Customizable: Options for metallurgy, mounting, and power source.
- Decades of Expertise: Over 40 years serving mining, dredging, and heavy industries.
- Full-Service Support: Engineering assistance, installation guidance, and parts availability.
Case Study
Challenge
A busy marine terminal faced a recurring bottleneck during barge offloading operations. The facility received dredged slurry (40–60% solids) by barge, which then had to be pumped to a temporary containment zone located over 300 feet away. Traditional pumps struggled with priming issues and inconsistent performance during tidal fluctuations. The lack of access to constant vacuum assistance also limited equipment choices.
Solution
To overcome these challenges, the terminal deployed the EDDY Pump 6-Inch Self-Priming Pump (125 HP), configured for skid mounting. Key advantages included:
- Self-priming and re-priming capabilities without external vacuum support
- Ability to handle high solids content (up to 3-inch solids) without clogging
- Efficient pumping through long discharge distances using standard 6″ slurry hose
- Low-maintenance, non-clogging rotor design ideal for barge-mounted or dockside setups
The unit was placed dockside and operated continuously during the loading windows, with minimal setup time required.
Result
The installation delivered immediate and measurable benefits:
- Transferred slurry at rates exceeding 100 cubic yards per hour
- Maintained reliable performance across changing tidal conditions
- Reduced barge unloading time by 30%, boosting daily throughput
- Operated with zero priming failures, eliminating delays caused by air-lock or pump resets
The Best Non-Clog and High Solids Slurry Pump on the Market. Since 1984.
We manufacture both pump and dredge equipment for maximum compatibility
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
FAQs
How is the EDDY 6-inch self-priming pump different from a centrifugal pump?
Unlike standard centrifugal pumps, EDDY Pumps use an open rotor and eddy current system to move high-solids slurries without clogging.
Does this pump require manual priming?
No. The integrated vacuum chamber allows the unit to self-prime automatically.
Can this self-priming pump handle sand, gravel, and rocks?
Yes. It can move solids up to 5 inches in diameter, including rocks and debris.
Is this pump suitable for remote or power-scarce locations?
Yes. It runs on diesel and is fully trailer-mounted for mobile field operations.
What are common wear parts?
Rotor, volute, mechanical seal, and suction hose. These are available in wear-resistant metals.
Can I use this pump in saltwater or corrosive fluids?
Yes. Optional stainless steel and duplex construction is available for corrosive environments.
How long can the self-priming pump operate without refueling?
The 96-gallon fuel tank enables extended operation, typically lasting 12–16 hours, depending on the load.
Is this pump easy to transport?
Yes. It comes mounted on a DOT-compliant trailer with lights, jacks, and a towing hitch.
Can I get a custom quote?
Absolutely. Contact EDDY Pump for an application-specific quote and curve.
Is there technical support available?
Yes. EDDY Pump provides U.S.-based engineering and service support.
