Liner-Safe Dredging Options
Liner-Safe Dredge Options are engineered for sediment removal in clay-, poly-, and concrete-lined ponds without damaging the liner. These systems use non-clog EDDY Pump technology to move high-solids slurry while maintaining precise control at the liner surface. Configurations include sleds, subdredges, excavator attachments, cable-deployed systems, and full-scale barge dredges like the T3. Each solution is designed for low ground pressure, controlled contact, and accurate positioning, allowing operators to restore capacity, improve water quality, and extend liner life in the most sensitive containment environments.
Built for Sensitive Dredging Conditions
- Protects clay, poly, and concrete liners using low ground pressure designs and controlled surface contact, preventing punctures, tears, and premature liner failure
- Uses non-clog EDDY Pump technology to move high-solids slurry directly, eliminating the need for screening, dilution, or frequent shutdowns
- Maintains precise dredging depth so operators can remove sediment without exposing or stressing the liner surface
- Supports multiple configurations, including sleds, subdredges, excavator attachments, cable-deployed units, and full-scale barge dredges to match any site condition
- Enables remote and cable-based operation for confined, hazardous, or restricted-access ponds where personnel entry is limited
- Reduces downtime by avoiding clogging, wrapping, and manual cleanouts common with conventional dredge pumps
- Handles abrasive, viscous, and debris-laden material that defeats centrifugal, vortex, and positive displacement pumps
- Scales from small retention ponds to large industrial containment areas without changing core pump technology
- Removes sediment evenly across the liner surface, preventing high spots, gouging, and uneven wear
- Extends liner life while restoring pond capacity, hydraulic performance, and long-term operational reliability
Gallery

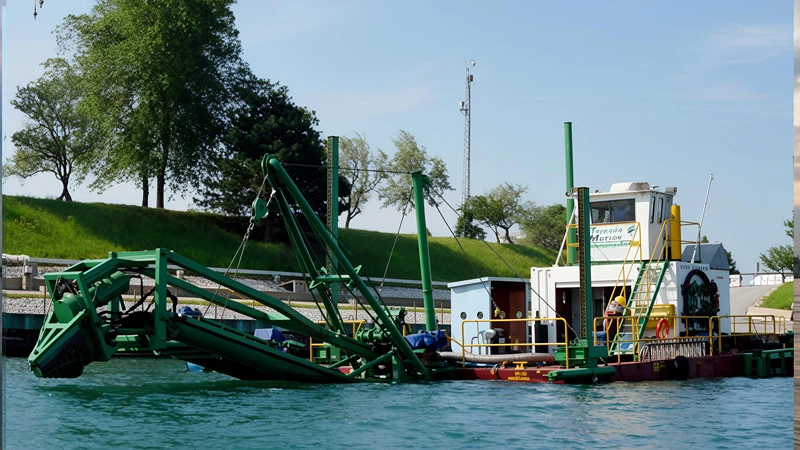

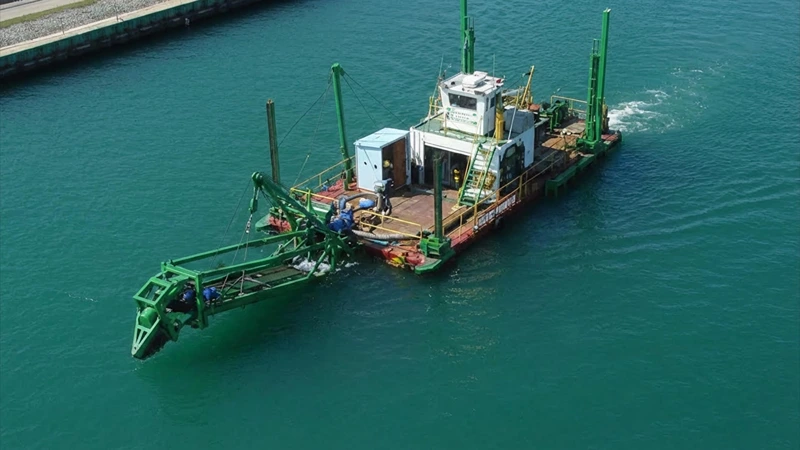

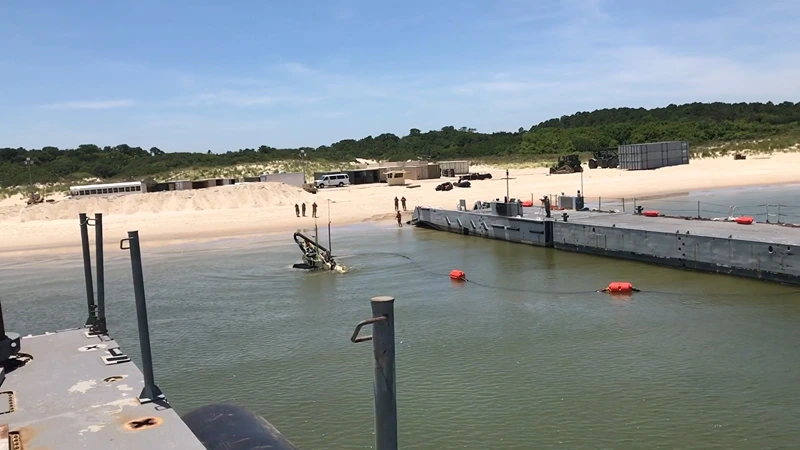

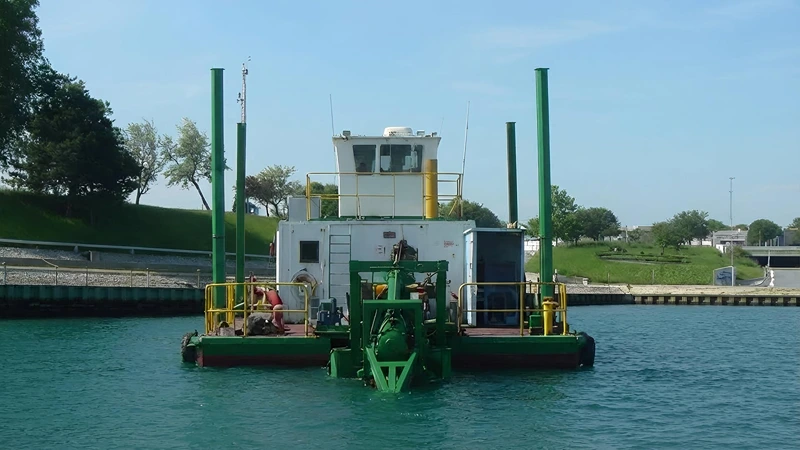

See Liner Safe Dredge Options in Action
Liner-Safe Dredge Options
The Dredge Sled
Excavator Dredge Pump
Subdredge
Cable Deployed Dredge
Auger Dredge
Remote Operated Dredge
Full-Size T3 Liner-Safe Barge Dredge

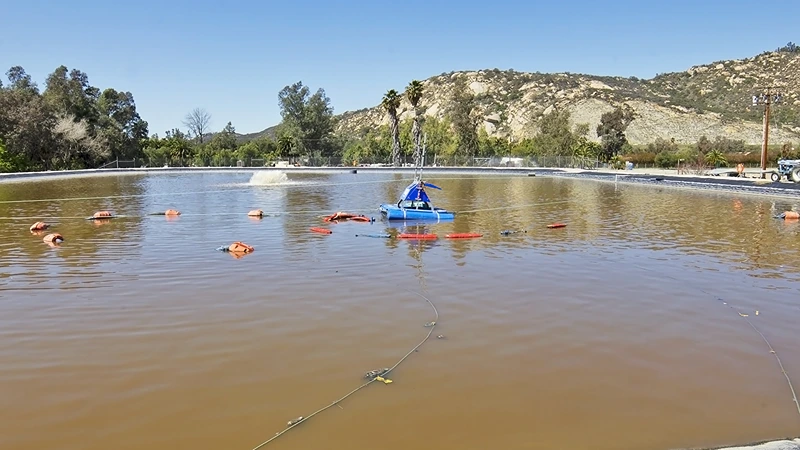

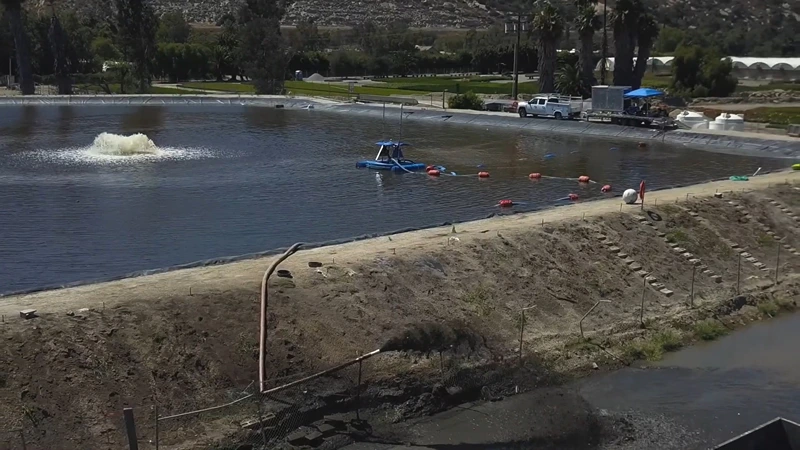

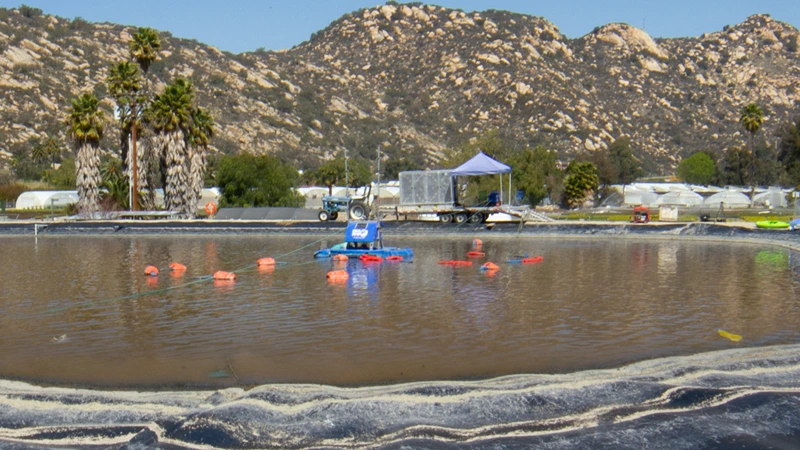

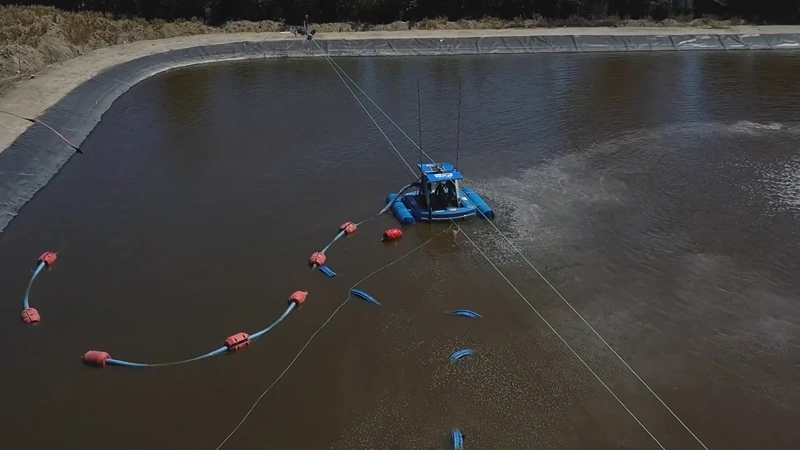

The Dredge Sled
The Dredge Sled is a compact, liner-safe, floating dredging system engineered for shallow-water, lagoons, ponds, and confined basins where conventional dredges cannot operate. It uses patented EDDY Pump technology to move high-solids slurry with minimal turbidity and controlled contact at the bottom, allowing operators to remove sludge, silt, sand, ash, and tailings without damaging clay, poly, or concrete liners. Remote winch control enables precise positioning and depth control from shore, making it ideal for industrial, municipal, mining, and environmental maintenance dredging in sensitive lined environments.
| Parameter | Electric 4-Inch (DSE-4000) | Electric 6-Inch (DSE-6000) | Hydraulic 4-Inch (DSH-4000) | Hydraulic 6-Inch (DSH-6000) |
|---|---|---|---|---|
| Model | DSE-4000 | DSE-6000 | DSH-4000 | DSH-6000 |
| Drive Type | Submersible electric motor with VFD or soft starter | Submersible electric motor with VFD or soft starter | Hydraulic motor via HPU | Hydraulic motor via HPU |
| Pump Size | 4 inch | 6 inch | 4 inch | 6 inch |
| Suction Size | 6 inch | 8 inch | 6 inch | 8 inch |
| Flow Range | 250 to 1200 GPM | 450 to 2500 GPM | 250 to 1200 GPM | 450 to 2000 GPM |
| Maximum Head | Up to 160 ft | Up to 200 ft | Up to 160 ft | Up to 200 ft |
| Solids Handling | Up to 3 inches | Up to 6 inches | Up to 3 inches | Up to 5.5 inches |
| Solids by Volume | Up to 40 to 70 percent | Up to 40 to 70 percent | Up to 40 to 70 percent | Up to 40 to 70 percent |
| Production Rate | 75 to 150 yd³ per hour | 150 to 200 yd³ per hour | 75 to 150 yd³ per hour | 150 to 200 yd³ per hour |
| Maximum Speed | 1800 RPM | 1800 RPM | 1800 RPM | 1800 RPM |
| Maximum Power | 125 HP | 125 HP | 125 HP | 250 HP |
| Standard Depth Range | 1.6 to 16 ft | 1.6 to 16 ft | 1.6 to 16 ft | 1.6 to 16 ft |
| Platform Dimensions | 12.5 ft W x 9.8 ft L x 5.6 ft H | 12.5 ft W x 9.8 ft L x 5.6 ft H | 12.5 ft W x 9.8 ft L x 5.6 ft H | 12.5 ft W x 9.8 ft L x 5.6 ft H |
| Weight Without Pump | 3,307 lbs | 4,307 lbs | 3,307 lbs | 4,307 lbs |
| Included Equipment | Floating sled, traversing cable, winches, solar system, generator | Floating sled, traversing cable, winches, solar system, generator | Floating sled, traversing cable, winches, solar system, generator | Floating sled, traversing cable, winches, solar system, generator |
| Typical Applications | Lagoons, ponds, shallow and confined dredging | Higher volume ponds and industrial sites | Lagoons, ponds, industrial basins | Large ponds, mining, ash, and tailings |
| Spec Sheet | Download PDF | Download PDF | Download PDF | Download PDF |
Excavator Dredge Pump Model Comparison

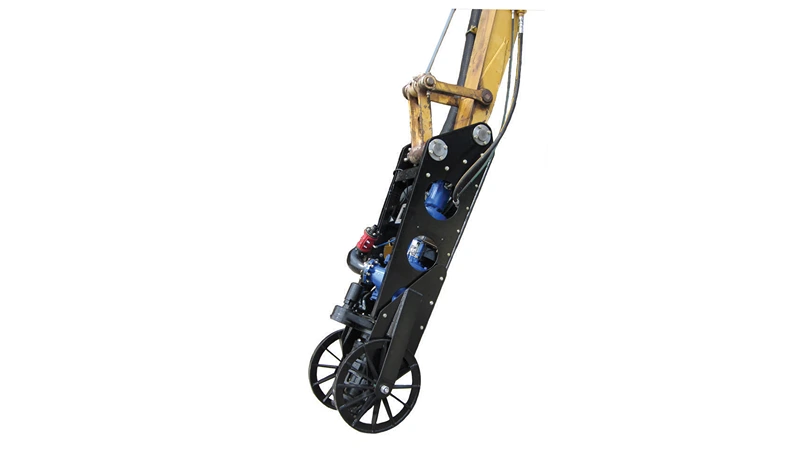

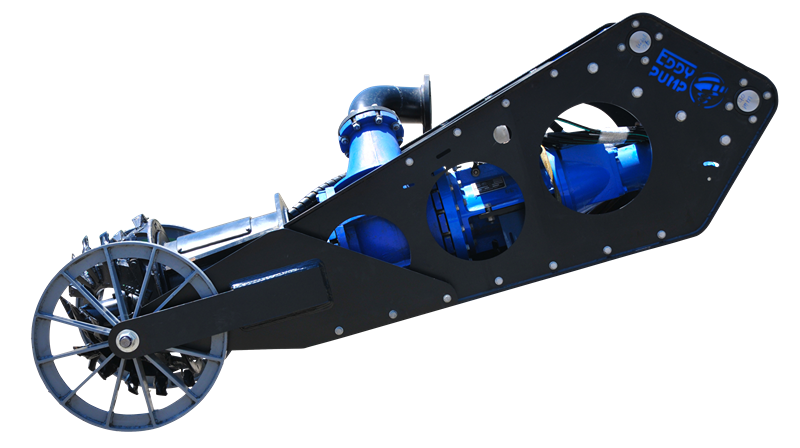

Excavator Dredge Pump
The Excavator Pump Attachment is a liner-safe dredging solution that converts an excavator into a powerful sediment-removal unit, using patented EDDY Pump technology. It mounts directly to the machine boom and uses the excavator’s hydraulics to drive a high-solids slurry pump capable of handling sludge, silt, sand, ash, and tailings while preserving clay, poly, or concrete liners. The design provides precise depth control, reduced turbidity, and remote positioning from the cab, making it suited for ponds, basins, retention areas, and lined environments where conventional dredges cannot safely operate. This attachment enhances productivity with minimal setup, leverages existing equipment, and simplifies maintenance in sensitive dredging applications.
| Specification | 4-Inch EXF 4000 | 6-Inch EXF 6000 | 8-Inch EXF 8000 | 10-Inch EXF 10000 | 12-Inch EXF 12000 |
|---|---|---|---|---|---|
| Min Flow (GPM) | 250 | 450 | 1,400 | 1,600 | 2,600 |
| Max Flow (GPM) | 1,200 | 2,500 | 3,600 | 5,000 | 7,300 |
| Head Range (ft) | Up to 160 | Up to 200 | Up to 230 | Up to 240 | Up to 180 |
| Discharge Size | 4 in | 6 in | 8 in | 10 in | 12 in |
| Suction Size | 6 in | 8 in | 10 in | 12 in | 14 in |
| Solids Handling | Up to 3 in | Up to 5 in | Up to 7 in | Up to 9 in | Up to 11 in |
| Max Speed (RPM) | 1,800 | 1,800 | 1,200 | 1,200 | 900 |
| Solids by Volume | 40–70 % | 40–70 % | 40–70 % | 40–70 % | 40–70 % |
| Production Rate (yd³/hr) | 75–150 | 150–200 | 250–300 | 300–350 | 500–600 |
| Pump Circuit Flow | 35 GPM @ 5,000 PSI (80 cc motor) | 57 GPM @ 5,000 PSI (180 cc motor) | 120 GPM @ 5,000 PSI (500 cc motor) | 120 GPM @ 5,000 PSI (500 cc motor) | 160 GPM @ 5,000 PSI (700 cc motor) |
| Cutter head Circuit Flow | 12–18 GPM @ 5,000 PSI (1340 cc motor) | 12–18 GPM @ 5,000 PSI (1340 cc motor) | 20–28 GPM @ 5,000 PSI (2150 cc motor) | 20–28 GPM @ 5,000 PSI (2150 cc motor) | 20–28 GPM @ 5,000 PSI (2150 cc motor) |
| Excavator Carrier Weight Requirement | 20–45 tons (18,000–40,000 kg) | 20–45 tons (18,000–40,000 kg) | 60–94 tons (54,400–85,000 kg) | 60–94 tons (54,400–85,000 kg) | 60–94 tons (54,400–85,000 kg) |
| Overall Weight (without optional equipment) | 3,300 lbs (1,496 kg) | 4,800 lbs (2,177 kg) | 6,800 lbs (3,084 kg) | 7,500 lbs (3,400 kg) | 9,500 lbs (4,310 kg) |
| Frame + Elbow + Cutter head Only | 1,700 lbs (771 kg) | 1,800 lbs (816 kg) | — | — | — |
| Solids Applications | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures |
| Power Options / Design | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives |
| Spec Sheet | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF |
Subdredge Models Comparison
Subdredge
The Subdredge is a liner-safe, remotely operated dredging system designed for precision sediment removal in ponds, lagoons, basins, and other water bodies where access is restricted or liners must be preserved. It integrates patented EDDY Pump technology with a compact frame and cable deployment to position the unit accurately along the bottom without direct human entry. The Subdredge moves high-solids slurry with minimal turbidity while protecting clay, poly, and concrete liners. Its adaptable rigging and shore-based control make it ideal for industrial, municipal, mining, and environmental maintenance dredging in sensitive environments.
| Specification | 4-Inch Subdredge | 6-Inch Subdredge | 8-Inch Subdredge | 10-Inch Subdredge | 12-Inch Subdredge |
|---|---|---|---|---|---|
| Min Flow (GPM) | 250 | 450 | 800 | 1200 | 1800 |
| Max Flow (GPM) | 1200 | 2000 | 4000 | 5000 | 7000 |
| Max Head (ft) | 160 | 200 | 200 | 200 | 200 |
| Discharge Size | 4 in | 6 in | 8 in | 10 in | 12 in |
| Suction Size | 6 in | 8 in | 10 in | 12 in | 14 in |
| Max Solids Handling | 3 in | 5 in | 7 in | 9 in | 11 in |
| Max Speed (RPM) | 1800 | 1800 | 1800 | 1800 | 1200 |
| Solids by Volume | 40–70% | 40–70% | 40–70% | 40–70% | 40–70% |
| Production Rate (yd³/hr) | 75–150 | 150–200 | 250–300 | 300–350 | 500–600 |
| Max Horsepower (HP) | 125 | 250 | 500 | 500 | 1000 |
| Pump Circuit Requirements | 32–35 GPM @ 5000 PSI (80cc) | 75 GPM @ 4000 PSI (180cc) | 130–150 GPM @ 5000 PSI (500cc) | 120–160 GPM @ 5000 PSI (500cc) | 160–200 GPM @ 5000 PSI (750cc) |
| Cutterhead Circuit Requirements | 12–15 GPM @ 5000 PSI | 12–20 GPM @ 5000 PSI | 12–20 GPM @ 5000 PSI | 12–20 GPM @ 5000 PSI | 12–20 GPM @ 5000 PSI |
| Spec Sheet | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF |
Electric Cable-Deployed Jetting Ring Pump Comparison
Cable Deployed Dredge
The Cable Mounted Dredge Pump is a liner-safe, flexible dredging solution that suspends an EDDY Pump from cables for precise sediment removal in ponds, lagoons, basins, and hard-to-reach areas. It uses remote cable deployment to position the pump at exact depths while preserving clay, poly, or concrete liners. Patented EDDY Pump technology moves high-solids slurry with minimal turbidity, reducing downtime and eliminating clogging. The system is ideal for industrial, municipal, mining, and environmental maintenance dredging where equipment access is limited or where controlled, gentle liner contact is critical for safe and efficient sediment removal.
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr) | Max Speed (RPM) | Solids by Volume | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight | Motor HP | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JPE 4000 | 4 inch | 250–1200 | 200 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,300 | 20–45 tons | 100 | Download PDF |
| JPE 6000 | 6 inch | 450–2000 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons | 150 | Download PDF |
| JPE 8000 | 8 inch | 800–4000 | 200 | 7 | 250–300 | 1800 | 40–70% | 100 | 6,800 | 60–94 tons | 450 | Download PDF |
| JPE 10000 | 10 inch | 1200–5000 | 200 | 9 | 300–350 | 1800 | 40–70% | 100 | 7,500 | 60–94 tons | 450 | Download PDF |
| JPE 12000 | 12 inch | 1800–7000 | 200 | 11 | 500–600 | 1800 | 40–70% | 100 | 9,500 | 30+ tons | 700 | Download PDF |
Hydraulic Cable-Deployed Jetting Ring Pump Comparison Table
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr) | Max Speed (RPM) | Solids by Volume | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JPH 4000 | 4 inch | 250–1200 | 160 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,300 | 20–45 tons | Download PDF |
| JPH 6000 | 6 inch | 450–2500 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons | Download PDF |
| JPH 8000 | 8 inch | 1400–3600 | 230 | 7 | 250–300 | 1200 | 40–70% | 100 | 6,800 | 60–94 tons | Download PDF |
| JPH 10000 | 10 inch | 1600–5000 | 240 | 9 | 300–350 | 1200 | 40–70% | 100 | 7,500 | 20+ tons | Download PDF |
| JPH 12000 | 12 inch | 2600–7300 | 180 | 11 | 500–600 | 900 | 40–70% | 100 | 9,500 | 30+ tons | Download PDF |
Auger Dredge Pumping System Comparison

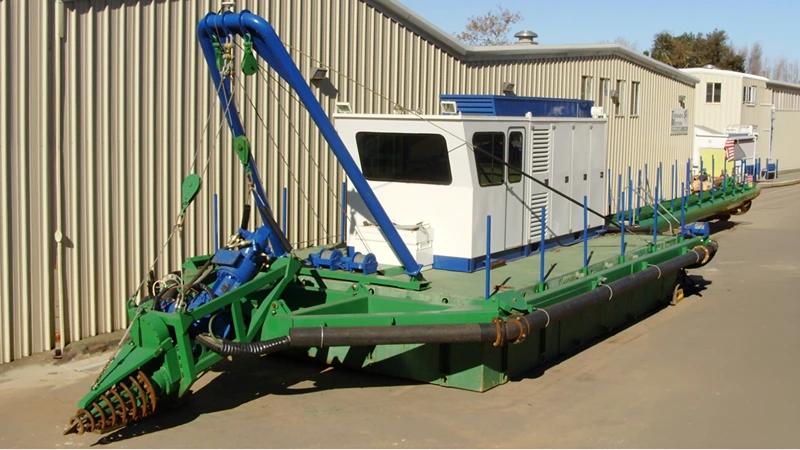

Auger Dredge
The Auger Dredge is a liner-safe dredging platform that combines rotary cutting with high-solids slurry pumping to remove sediment from ponds, basins, and industrial water bodies. Mounted on a floating barge, the auger breaks up compacted sludge, sand, and debris while controlling liner contact to protect clay, poly, or concrete surfaces. Patented EDDY Pump technology moves slurry with minimal turbidity and clogging, enabling efficient removal of heavy deposits. Cable-based positioning and smooth auger action deliver controlled dredging depth from shore, making the system well-suited for sensitive lined environments and confined sites where precision and liner preservation are critical.
| Model | Discharge Size | Suction Size | Flow Range (GPM) | Head Range (ft) | Solids Handling | Solids by Volume | Production Rate (yd³/hr) | Spec Sheet |
|---|---|---|---|---|---|---|---|---|
| HD4000 | 4 inch | 6 inch | 250 – 1200 | Up to 160 | 3 inches | 40–70% | 75–150 | Download PDF |
| HD6000 | 6 inch | 8 inch | 450 – 2500 | Up to 200 | 5 inches | 40–70% | 150–200 | Download PDF |
| HD8000 | 8 inch | 10 inch | 1400 – 3600 | Up to 230 | 7 inches | 40–70% | 250–300 | Download PDF |
| HD10000 | 10 inch | 12 inch | 1600 – 5000 | Up to 240 | 9 inches | 40–70% | 300–350 | Download PDF |
| HD12000 | 12 inch | 14 inch | 2600 – 7300 | Up to 180 | 11 inches | 40–70% | 500–600 | Download PDF |

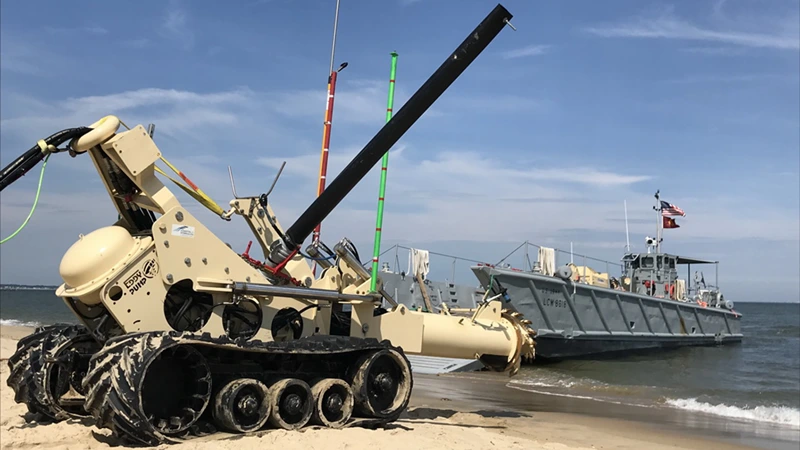

Remote Operated Dredge
The Autonomous Dredge is a remote-operated, unmanned dredging system that delivers precision sediment removal with minimal human intervention. It uses patented EDDY Pump technology and onboard winch control to navigate a predefined dredging path, raise and lower the pump, and regulate RPM, enabling continuous slurry, sludge, and high-solids pumping at up to 4000 GPM and over 200 ft of head. The system anchors with multiple cables, pulls itself along the dredging route, and deploys the pump via cable to depths of up to 100 ft, maintaining non-clogging performance and reducing downtime. All EDDY dredges are powered by industrial EDDY Pumps sized from 4 to 12 inches to match project production requirements.
| Parameter | AD-4000 (4-Inch) | AD-6000 (6-Inch) | AD-8000 (8-Inch) | AD-10000 (10-Inch) | AD-12000 (12-Inch) |
|---|---|---|---|---|---|
| Pump Size | 4 inch | 6 inch | 8 inch | 10 inch | 12 inch |
| Drive Options | 125 HP Electric or Diesel | 250 HP Electric or Diesel | 500 HP Electric or Diesel | 500 HP Electric or Diesel | 700 HP Electric or Diesel |
| HPU | 75 HP | 75 HP | 75 HP | 75 HP | 100 HP |
| Min Flow | 250 GPM | 450 GPM | 1400 GPM | 1600 GPM | 2600 GPM |
| Max Flow | 1200 GPM | 2500 GPM | 3600 GPM | 5000 GPM | 7300 GPM |
| Head Range | Up to 160 ft | Up to 200 ft | Up to 230 ft | Up to 240 ft | Up to 180 ft |
| Discharge Size | 4 inch | 6 inch | 8 inch | 10 inch | 12 inch |
| Suction Size | 6 inch | 8 inch | 10 inch | 12 inch | 14 inch |
| Solids Handling | Up to 3 in | Up to 5 in | Up to 7 in | Up to 9 in | Up to 11 in |
| Solids by Volume | Up to 40–70% | Up to 40–70% | Up to 40–70% | Up to 40–70% | Up to 40–70% |
| Max Speed | 1800 RPM | 1800 RPM | 1200 RPM | 1200 RPM | 900 RPM |
| Production Rate | 75–150 yd³/hr | 150–200 yd³/hr | 250–300 yd³/hr | 300–350 yd³/hr | 500–600 yd³/hr |
| Included Platform | Floating dredge with cutterhead or auger, shore-mounted pilot house | Floating dredge with cutterhead or auger, shore-mounted pilot house | Floating dredge with cutterhead or auger, shore-mounted pilot house | Floating dredge with cutterhead or auger, shore-mounted pilot house | Floating dredge with cutterhead or auger, shore-mounted pilot house |
| Typical Applications | Lagoons, ponds, confined dredging | Industrial ponds, mining, and ash | Large ponds, mining, tailings | High-production dredging | Large-scale industrial dredging |
| Spec Sheet | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF |
Technical Specification for T3 – 5 Wire Liner-Safe Dredge

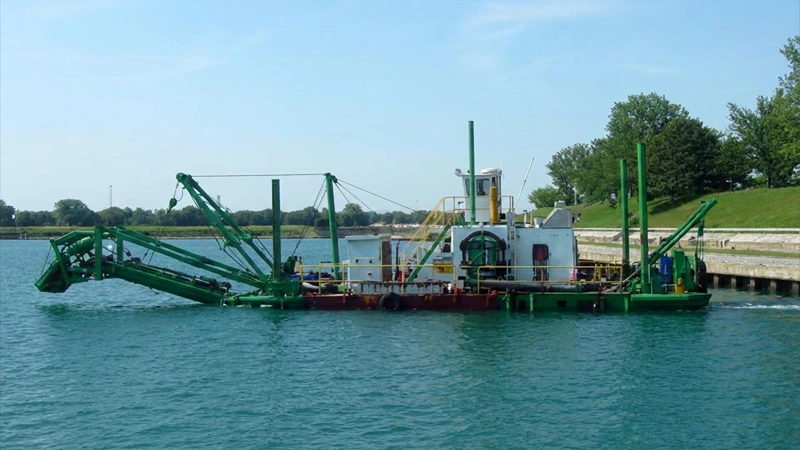

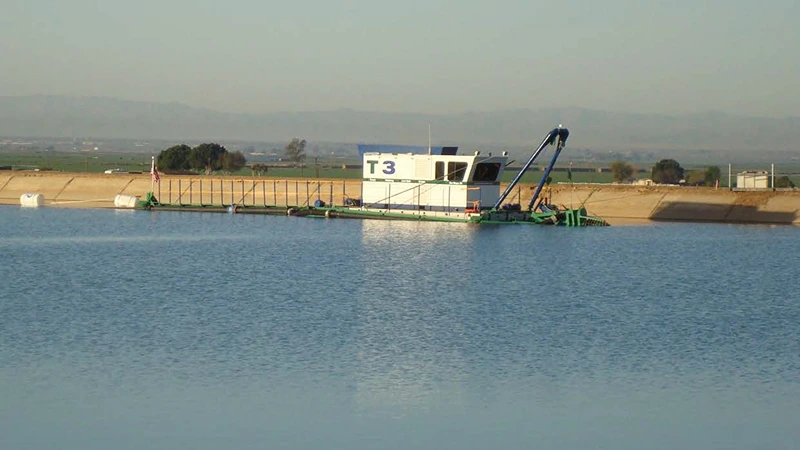

Full-Size T3 Liner-Safe Barge Dredge
The T3 Liner-Safe Barge Dredge is a full-size production dredge engineered for the most sensitive lined environments and the largest containment projects. Built around a 6-inch Heavy Duty High-Chrome EDDY Pump, it delivers 150 to 250 cubic yards per hour while operating safely on clay, concrete, and poly liners. Its five-wire, spud-free deployment and swinging ladder eliminate liner penetration, while RTK GPS and load-cell feedback provide precise depth and position control. Powered by a 300 HP Cat C9, the T3 combines high-volume solids removal with true liner-safe performance.
Performance Specifications
- Pump Type: 6-Inch Heavy Duty High-Chrome EDDY Pump
- Drive Power: 180 HP pump, powered by 300 HP Cat C9 diesel engine
- Production Rate: 150 to 250 cubic yards per hour
- Maximum Digging Depth: Up to 25 ft
- Typical Swing Width: 100 ft
Physical Specifications
- Overall Weight: Approx. 70,000 lbs
- Assembled Length (LOA): 82 ft in liner-safe configuration, 45 ft in spud configuration
- Assembled Width: 18 ft 9 in
- Dredge Height: 15 ft 5 in
Liner-Safe Configuration
- Deployment System: Five-wire liner-safe configuration
- Wire Layout: 3-position wires and 2 swing wires
- Spud-Free Operation: Eliminates liner penetration
- Alternate Mode: Spud configuration removes 37 ft of length and three-position wires
Power and Controls
- Prime Mover: 300 HP Cat C9 diesel engine
- Auxiliary Power: 7.5 kW diesel generator
- Operator Station: Enclosed pilot house with joystick-enabled pilot chair and lever panel
- Interface: HMI screen for system monitoring and settings
- Software Support: PC monitor for Hypack, Dredgepack, or WinOps dredging management
Included Equipment and Sensors
- RTK GPS for sub-centimeter positioning
- 8-Inch magnetometer-type flowmeter
- Rotating suction head with or without cutting teeth
Required Equipment
- 8-Inch HDPE discharge pipeline
- Optional Equipment
- Automated wireless booster pump for long discharge pipelines
- In-situ densitometer for real-time process monitoring and control
Mobilization
- Transport: All components are non-permit transportable over road
- Setup Time: Typical mobilization in one day
Liner-Safe Dredging Across Industries
Retention Ponds and Stormwater Basins
Lined retention ponds and stormwater basins accumulate sediment, organic matter, and debris, reducing capacity and hydraulic performance. Liner-Safe Dredge Options allow operators to remove buildup without draining the pond or risking liner damage. Low-ground-pressure designs, controlled contact, and precise positioning enable safe volume restoration while preserving clay, poly, and concrete liners.
Wastewater and Treatment Lagoons
Municipal and industrial treatment lagoons rely on intact liners to protect surrounding soil and groundwater. Liner-safe dredging systems remove biosolids and sludge while maintaining continuous plant operation. Subdredges, sleds, and cable-deployed systems enable targeted removal in confined basins, extending lagoon service life and improving treatment efficiency without disrupting the liner.
Mining Tailings and Process Ponds
Mining operations use lined ponds to contain tailings, slurry, and process water. These environments demand high-solids handling without compromising containment barriers. Liner-Safe Dredge Options scale from compact systems to full barge dredges, allowing safe removal of dense, abrasive material while maintaining liner integrity in critical containment zones.
Coal Ash and Industrial Waste Ponds
Coal ash, byproduct, and industrial waste ponds require routine sediment management under strict environmental controls. Liner-safe dredging enables the removal of compacted ash and sludge without puncturing synthetic or clay liners. Non-clog EDDY Pump technology ensures consistent transport of heavy material while maintaining controlled contact at the liner surface.
Environmental Remediation Sites
Remediation projects often involve lined containment areas where sediments must be removed without disturbing isolation barriers. Liner-Safe Dredge Options provide remote, low-impact dredging for hazardous or restricted-access environments. Cable-deployed and autonomous systems allow precise depth control and uniform removal across sensitive surfaces.
Industrial Process and Cooling Ponds
Power plants, refineries, and manufacturing facilities depend on lined process ponds for cooling and waste handling. Sediment buildup reduces efficiency and increases maintenance risk. Liner-safe dredging systems restore capacity and flow paths without shutdowns, enabling operators to maintain compliance while protecting long-term liner performance.

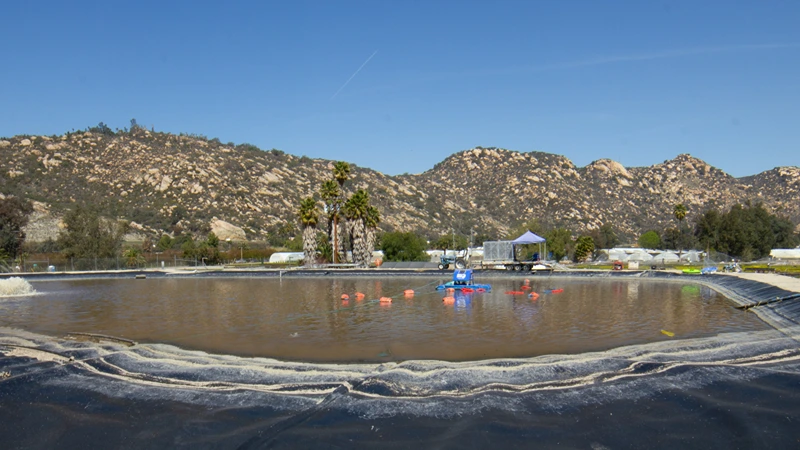

Auger Dredge in a Food Processing Waste Pond
Case Study
The Problem
A large food processing facility relied on a poly-lined waste pond to manage organic byproducts, washdown water, and suspended solids from daily operations. Over time, heavy organic material settled and compacted along the pond floor, reducing effective storage volume and disrupting downstream treatment processes. Odor complaints increased, and the facility began approaching regulatory thresholds for overflow risk. Draining the pond was not an option, as it would halt production and require costly temporary containment. Mechanical excavation posed a significant risk of tearing the liner, resulting in environmental exposure and costly repairs.
The Solution
The facility deployed a liner-safe Auger Dredge powered by EDDY Pump. The floating platform allowed in-situ dredging while operations continued. The rotating auger gently loosened compacted organic material without gouging or stressing the liner surface. As material was conditioned, the EDDY Pump transported dense slurry at high solids concentration directly to shore, eliminating the need for dilution water. Cable-based positioning provided precise depth control and consistent coverage across the basin, ensuring uniform removal without liner contact pressure spikes.
The Result
The pond’s full working capacity was restored without draining, shutdowns, or liner damage. Odor levels dropped significantly as stagnant organic buildup was removed. Treatment efficiency improved, and the facility reduced the frequency of emergency maintenance. By establishing a liner-safe dredging routine, the plant eliminated future production disruptions, reduced disposal costs, and extended the service life of the containment system.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Talk To About Any Question?
Frequently Asked Questions
What makes a dredge system “liner-safe”?
Liner-safe dredge systems are engineered to remove sediment without puncturing, tearing, or scuffing clay, poly, or concrete liners. They use low-ground-pressure designs, controlled contact at the bottom, and precise positioning methods, such as cable deployment, floating platforms, or remote operation, to preserve liner integrity during dredging.
What types of liners can these systems operate on?
Liner-Safe Dredge Options are designed for clay liners, geomembrane liners (HDPE and PVC), and concrete-lined basins. Each configuration is matched to liner type, depth, and site conditions to ensure safe operation without surface damage.
What materials can be dredged from lined ponds?
These systems handle sludge, biosolids, silt, sand, grit, tailings, fly ash, coal ash, and industrial byproducts. EDDY Pump technology moves slurry at high solids concentrations, typically 40 to 70 percent by volume, without clogging or excessive dilution.
Can liner-safe dredging be done without draining the pond?
Yes. Liner-safe systems are designed for in-situ dredging, allowing sediment removal while the pond remains operational. This prevents shutdowns, avoids dewatering, and maintains continuous plant or site operations.
How is the dredging depth controlled to prevent liner damage?
Depth is managed using cable systems, winches, GPS positioning, and operator feedback from shore or a control station. These controls maintain consistent contact pressure and prevent over-penetration, ensuring sediment is removed without stressing the liner.
Which liner-safe dredge configuration is right for my site?
Options range from compact Dredge Sleds and Subdredges to excavator attachments, cable-deployed pumps, Auger Dredges, Autonomous Dredges, and full-scale barge dredges like the T3.
What pump sizes are available across the Liner-Safe product range?
All liner-safe systems use industrial EDDY Pumps ranging from 4-inch to 12-inch. Smaller pumps are suited to confined and shallow environments, while larger pumps support high-production industrial and mining applications.
How do liner-safe systems differ from conventional dredges?
Conventional dredges rely on spuds, high cutting forces, or aggressive excavation, all of which can damage liners. Liner-safe systems eliminate bottom penetration, reduce surface pressure, and use controlled movement combined with non-clog pumping for safer, more predictable results.
Are these systems suitable for hazardous or restricted environments?
Yes. Many configurations operate remotely from shore or from a protected control station. This allows dredging in contaminated, hazardous, or restricted-access basins without placing personnel in the water or on unstable surfaces.
How do liner-safe dredge systems reduce downtime and operating costs?
Non-clog EDDY Pump technology eliminates frequent blockages and the need for manual cleanouts. High-solids pumping reduces water usage and disposal volume. Combined with continuous operation and minimal site disruption, this results in faster projects, fewer shutdowns, and lower total operating costs.
HD (Heavy Duty) Slurry Pumps / Dredge Equipment
Related Products
For assistance Call 619-404-1916 and let us help match your project
with the right pump.
