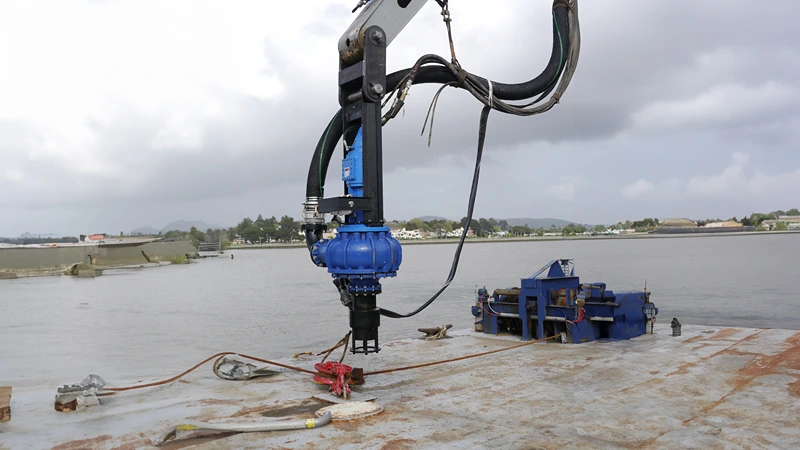

Cable or Barge Deployed Dredge Pump with Water Jetting
Cable-mounted dredge pumps deliver high-capacity solids handling from 4-inch through 12-inch sizes with both hydraulic and electric power options. Designed for dense slurry and abrasive materials, they typically deliver up to 7,000 GPM and production rates of up to 600 cubic yards per hour, handle solids up to 11 inches, and operate at depths of up to 100 ft. Jetting ring agitators fluidize compacted sediment for maximum throughput, and patented non-clog rotor technology ensures continuous pumping with minimal downtime. These rugged systems integrate easily with cranes, excavators, or barge-mounted A-frames to support demanding dredging, mining, and industrial slurry applications.
Design and Performance Highlights
- High solids handling capability with typical operation at 40–70% solids by weight
- Non-clog pumping design allows passage of large solids up to 11 inches in diameter, depending on size.
- Available in multiple sizes from 4 inches to 12 inches for scalable dredging output
- Supports high flow rates up to 7,000 GPM for high production dredging
- Cable-mounted configuration enables deployment to depths up to 100 ft
- Integrated jetting ring agitator fluidizes compacted sediment for improved slurry consistency
- Electric and hydraulic drive options to match site power and operational requirements
- Designed for abrasive, high specific gravity, and high viscosity materials
- Heavy-duty construction for continuous submerged operation in harsh environments
- Compatible with cranes, excavators, barges, and A-frame deployment systems
- Adjustable jetting flow and pattern to suit varying sediment conditions
- Sealed bearing and shaft system supports submerged operation and controlled dry running
- Reduced clogging risk improves uptime and lowers maintenance requirements
- Supports long discharge pipelines and elevation changes with stable flow performance
- Optional monitoring and instrumentation for flow, pressure, and operational control
EDDY Pump’s High-Performance Dredge Pump Solutions
CABLE DEPLOYED PUMPS AND BARGE MOUNTED DREDGE PUMPS
| Hydraulic Specs | PDF  | PDF  |
|---|---|---|
| 4-inch JPH-4000 | ENG  | ESP |
| 6-inch JPH-6000 | ENG | ESP |
| 8-inch JPH-8000 | ENG | ESP |
| 10-inch JPH-10000 | ENG | ESP |
| 12-inch JPH-12000 | ENG | ESP |
Gallery

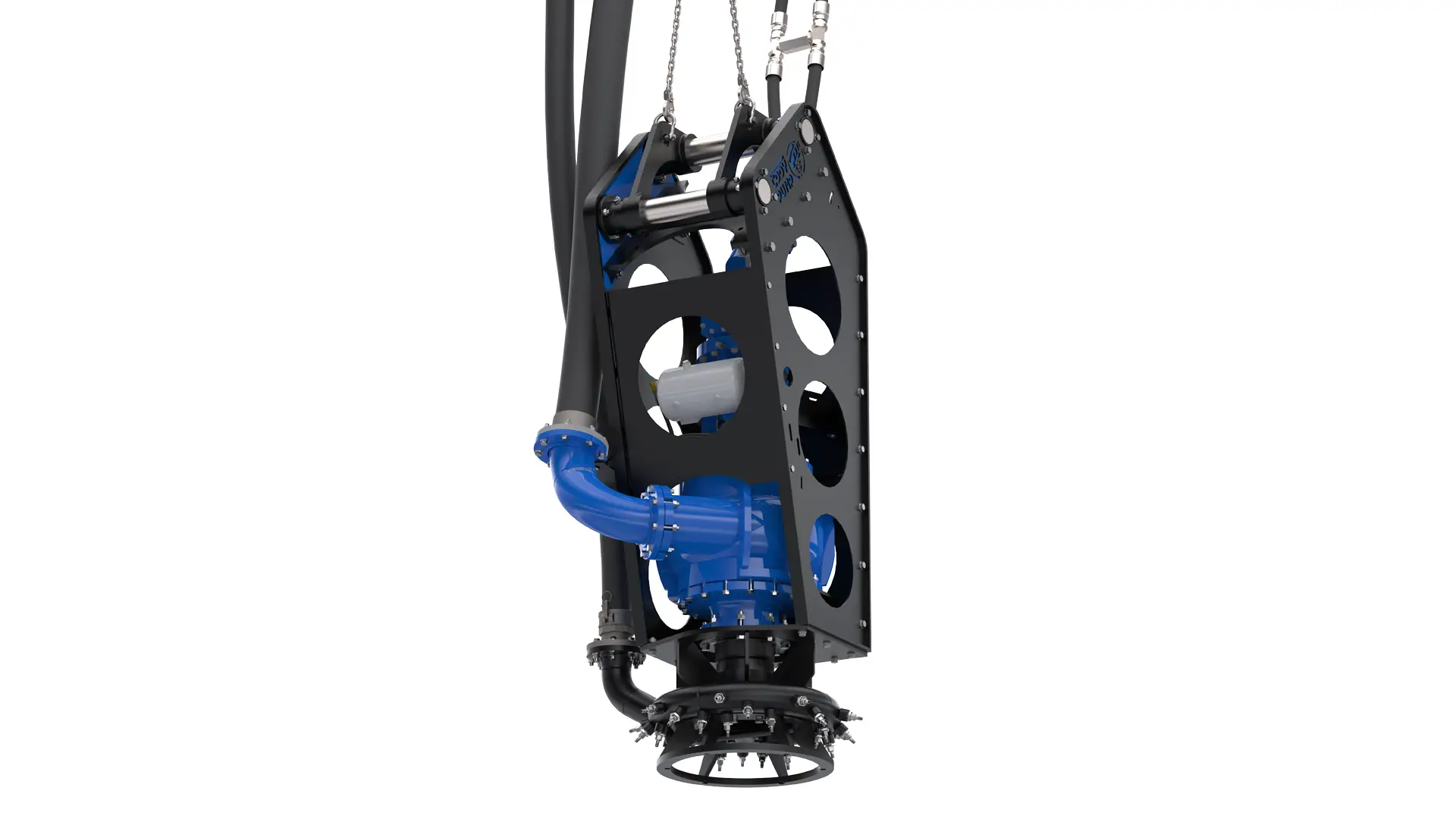

Cable or Barge Deployed Dredge Pump with Water Jetting
Technical Specifications for Hydraulic Cable Deployed Pump
Performance Specifications
- Flow Range: 250–7,300 GPM
- Head Range: Up to 240 ft
- Maximum Solids Diameter: Up to 11 inches
- Production Rate: 75–600 cubic yards per hour
- Percent Solids: 40–70%
- Maximum Operating Speed: 900–1800 RPM
- Maximum Dredging Depth: Up to 100 ft
Physical Specifications
- Suction Size Range: 6–14 inches
- Weight (without optional equipment): 3,300–9,500 lbs (1,496–4,310 kg)
- Overall Length Range: 113–191 inches (2.87–4.85 m)
- Overall Width Range (with discharge mounted): 38–71 inches (0.97–1.80 m)
- Overall Height Range: 37–60 inches (0.94–1.50 m)
- Standard Jetting Ring Diameter: 36 inches (0.91 m)
- Carrier Requirement: 20–94 ton class machines
Power and Drive Requirements
- Hydraulic Flow Requirement: 35–200 GPM
- Hydraulic Pressure Requirement: Up to 5,000 PSI
- Hydraulic Motor Size Range: 80–750cc
- Electric Drive Option: Available (site power dependent)
Technical Specifications for Electric Cable Deployed Pump
Performance Specifications
- Flow Range: 250–7,000 GPM
- Head Range: Up to 200 ft
- Maximum Solids Diameter: Up to 11 inches
- Production Rate: 75–600 cubic yards per hour
- Percent Solids: 40–70%
- Maximum Operating Speed: Up to 1800 RPM
- Maximum Dredging Depth: Up to 100 ft
Physical Specifications
- Discharge Size Range: 4–12 inches
- Suction Size Range: 6–14 inches
- Weight (without optional equipment): 3,300–9,500 lbs (1,496–4,310 kg)
- Overall Length Range: 133–191 inches (3.38-4.85 m)
- Overall Width Range (with discharge mounted): 38–71 inches (0.97–1.80 m)
- Overall Height Range: 37–60 inches (0.94-1.52 m)
- Standard Jetting Ring Diameter: 36 inches (0.91 m)
- Carrier Requirement: 20–94 ton class machines
Electric Power Requirements
- Motor Power Range: 100–700 HP
- Power Supply: Generator with VFD
- Electrical Configuration: Application dependent
Common Accessories for Hydraulic and Electric Dredge Pumps
Jetting Ring Water System
- Water Pump Flow: 400–1,000 GPM
- Maximum Water Pressure: 150 PSI
| 5Jetting Ring Size | Number of Jets | Flow per Jet (GPM) | Total Flow (GPM) | Velocity (ft/sec) | Inlet Flange Size | Inlet Flange Bolts | Part Number |
|---|---|---|---|---|---|---|---|
| Small Ring | 16 | 47.5 | 760 | 108 | 3" | 4 Bolt, 150# Class | EXF4K 16 16025 |
| Large Ring | 28 | 27 | 760 | 62 | 4" | 8 Bolt, 150# Class | EXF6K/8K/10K 28 12882 |
ENGINEERING ASSETS
Technical Drawings & Resources
EDDY Pump 16-Jet Ring Head Specs Sheet – 3″ Inlet
EDDY Pump 28-Jet Ring Head Specs Sheet – 4″ Inlet
Instrumentation and Safety
- Hydraulic Pressure Gauge: 0–6,000 PSI
- Discharge Pressure Gauge: 0–150 PSI
- RTK/GPS Integration: Available
- Safety Protection: Crossover check valve
Optional Accessories
- Quick Prime Valve: 24V air system required
- Pivot Mounted Hose Carrier: Available
- Liner Safe Roller Attachment: Available
- Self-Cleaning Mud Guard: Available
- Recirculation System: Available
Electric Cable-Deployed Jetting Ring Pump Comparison
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr) | Max Speed (RPM) | Percent Solids | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight | Motor HP |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JPE 4000 | 4 inch | 250–1200 | 200 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,300 | 20–45 tons | 100 |
| JPE 6000 | 6 inch | 450–2000 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons | 150 |
| JPE 8000 | 8 inch | 800–4000 | 200 | 7 | 250–300 | 1800 | 40–70% | 100 | 6,800 | 60–94 tons | 450 |
| JPE 10000 | 10 inch | 1200–5000 | 200 | 9 | 300–350 | 1800 | 40–70% | 100 | 7,500 | 60–94 tons | 450 |
| JPE 12000 | 12 inch | 1800–7000 | 200 | 11 | 500–600 | 1800 | 40–70% | 100 | 9,500 | 30+ tons | 700 |
Hydraulic Cable-Deployed Jetting Ring Pump Comparison Table
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr) | Max Speed (RPM) | Percent Solids | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| JPH 4000 | 4 inch | 250–1200 | 160 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,300 | 20–45 tons |
| JPH 6000 | 6 inch | 450–2500 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons |
| JPH 8000 | 8 inch | 1400–3600 | 230 | 7 | 250–300 | 1200 | 40–70% | 100 | 6,800 | 60–94 tons |
| JPH 10000 | 10 inch | 1600–5000 | 240 | 9 | 300–350 | 1200 | 40–70% | 100 | 7,500 | 20+ tons |
| JPH 12000 | 12 inch | 2600–7300 | 180 | 11 | 500–600 | 900 | 40–70% | 100 | 9,500 | 30+ tons |
Applications Across Industries
Dredging and Marine Construction
Cable-mounted dredge pumps are widely used in marine dredging and construction projects for sediment removal, channel deepening, and harbor maintenance. Their ability to operate at depth, handle dense slurry, and integrate with barges, cranes, and A-frame systems makes them well-suited for offshore and inland waterway projects.
Mining and Mineral Processing
In mining operations, these pumps handle abrasive slurries, including tailings, sand, and mineral concentrates. High solids capability and large particle handling support continuous material transfer from pits, ponds, and processing areas, while the non-clog design reduces downtime in demanding, high-wear mining environments.
Sand and Aggregate Operations
Sand and aggregate producers use cable-mounted dredge pumps to recover material from pits, rivers, and reservoirs. High flow rates and consistent slurry transport enable efficient extraction of sand, gravel, and silt, supporting both production dredging and material transfer to processing or stockpiling locations.
Environmental Remediation
For environmental dredging and remediation projects, cable-mounted pumps provide controlled sediment removal in lakes, lagoons, and contaminated waterways. The jetting ring system helps loosen compacted material while maintaining stable flow, supporting sediment management, restoration, and cleanup operations with reduced disruption to surrounding areas.
Oil and Gas
In oil and gas applications, these pumps are used for handling drilling mud, slop, tank bottoms, and contaminated slurries. Their ability to move high-viscosity, high-solids materials makes them suitable for upstream, midstream, and downstream support operations, including cleanup, transfer, and waste handling.
Power Generation and Industrial Ash Handling
Cable-mounted dredge pumps are commonly applied in fly ash and coal ash management for power plants. They transport dense ash slurries from ponds and containment areas, supporting plant maintenance, environmental compliance, and long-distance slurry transfer with consistent performance.
Municipal and Industrial Wastewater
Municipal and industrial facilities use these pumps for sludge removal, lagoon cleaning, and basin maintenance. High solids handling and submerged operation enable efficient transfer of thick sludge, grit, and biosolids, helping facilities maintain capacity, reduce manual cleanup, and support long-term system reliability.
Flood Control and Water Management
In flood control and water management projects, cable-mounted dredge pumps assist with sediment from channels, reservoirs, and retention basins. Their depth capability and high production rates support preventive maintenance and restoration efforts to improve flow capacity and reduce flood risk.
Maintaining Berth Depth in an Active Coastal Port
Case Study
The Problem
A coastal port authority struggled to maintain the required berth depth along an active docking area with constant vessel traffic. Fine silt, sand, and debris accumulated along the berth face, reducing clearance for ships. The restricted work zone and tight operating envelope ruled out cutter dredges and large mechanical equipment, while shutting down port operations was not feasible.
The Solution
EDDY Pump’s hydraulic cable-mounted dredge pump was suspended from a crane and positioned precisely along the berth line. The pump’s non-clog design and integrated jetting ring agitator fluidized compacted sediment, allowing stable slurry intake and controlled material removal. Hydraulic power from site equipment enabled continuous operation without disrupting vessel movements.
The Result
Berth depth was restored and maintained without interrupting port operations. The system delivered consistent dredging output, eliminated pipeline blockages, and reduced maintenance intervention. The port authority achieved a flexible, low-impact dredging solution suited for ongoing berth maintenance in high-traffic marine environments.
