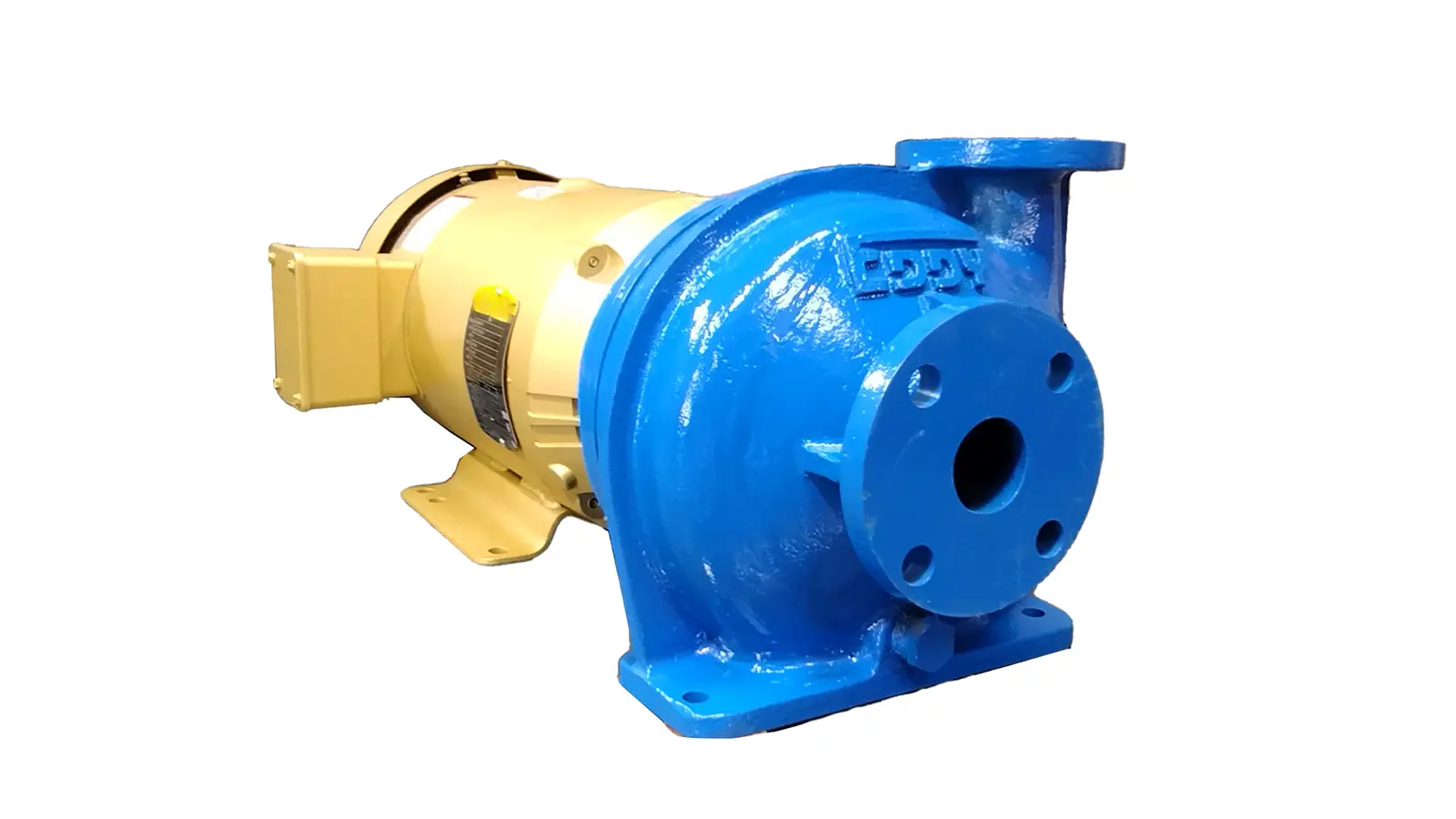

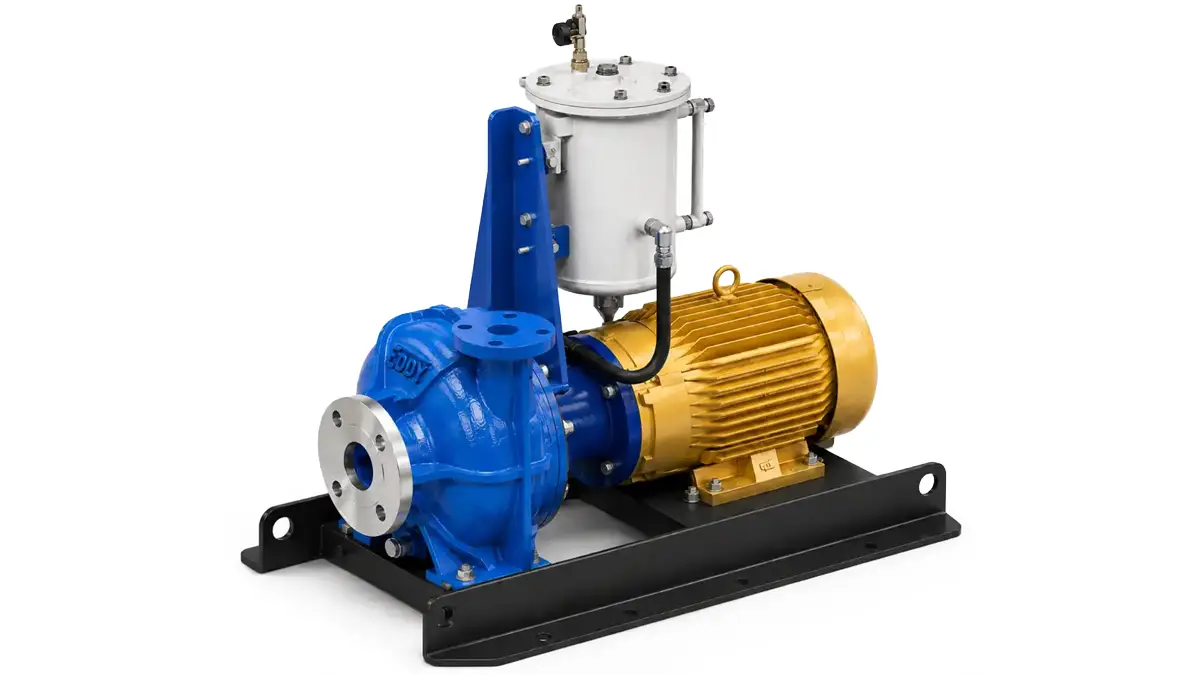

2-Inch Slurry Pump (3×2)
The EDDY Pump 2-Inch Slurry Pump is a heavy-duty, non-clog solution engineered for high-solids pumping in demanding industrial environments. Built around EDDY Pump’s patented open rotor design, it moves slurries with up to 70% solids by weight and handles particles up to 1.75 inches without plugging, depending on solid type and application. This pump delivers flow rates from 50 to 390 GPM and head up to 90 feet, making it well-suited for abrasive, viscous, and high-specific-gravity materials. Available in multiple wear-resistant materials and power options, the 2-inch slurry pump is designed for reliable performance where conventional pumps fail.

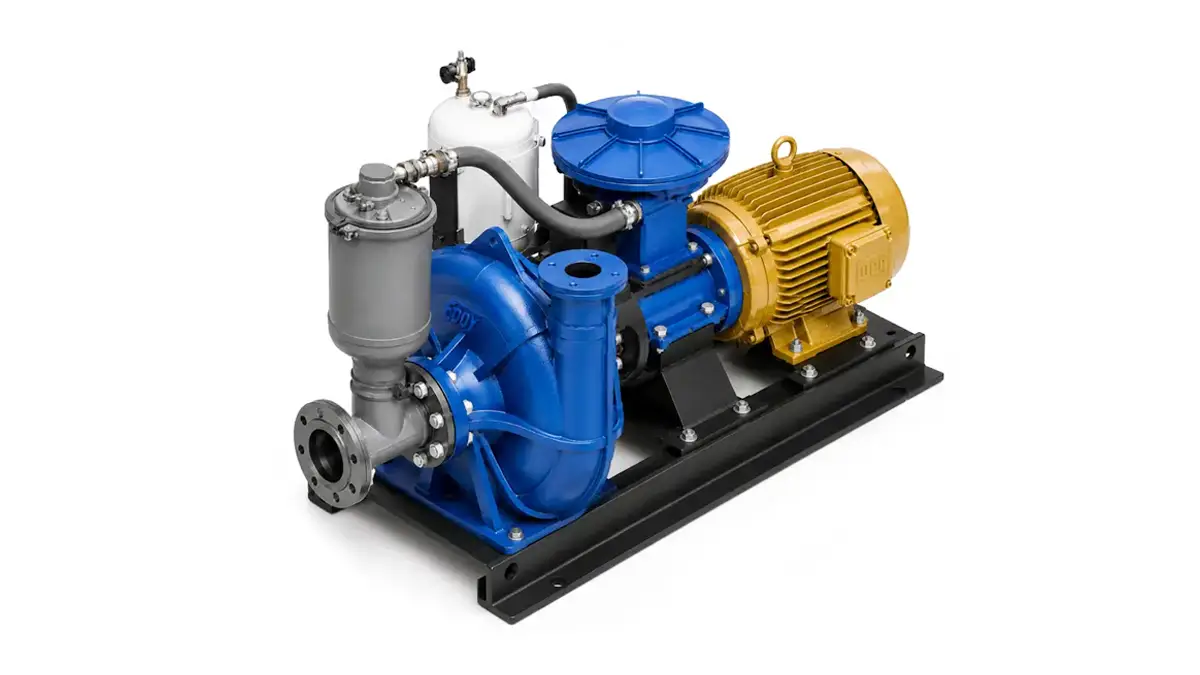

Model: HD-2000 (3″ Suction by 2″ Discharge) | Close Coupled | 1800 RPM
Why the 2-Inch EDDY Pump Performs Better
- Non-clog open rotor design allows large solids to pass through without blockage, reducing downtime and maintenance
- Handles high solids concentrations up to 70%, unlike conventional centrifugal pumps
- Capable of pumping solids up to 1.75 inches, depending on solid type and application, making it suitable for abrasive and debris-laden slurries
- Flow range from 50 to 390 GPM with head capability up to 90 feet for flexible deployment across applications
- Operates effectively with high viscosity and high specific gravity materials
- Wear-resistant construction options, including high chrome, ductile iron, and stainless steel for extended service life
- Dual mechanical seal with self-contained flushing system improves seal reliability in abrasive conditions
- Suitable for vertical or horizontal installation, allowing adaptability to different site layouts
- Designed for continuous-duty industrial use in harsh operating environments
Learn Why the 2-Inch EDDY Pump Delivers Higher Production and More Uptime
The EDDY Pump 2-Inch Slurry Pump is engineered specifically for high-solids, abrasive pumping where small pumps typically clog, lose efficiency, or fail prematurely. Built around EDDY Pump’s patented open rotor technology, this pump moves slurry with up to 70 percent solids by weight while maintaining stable flow rates from 50 to 390 GPM. Unlike conventional centrifugal or vortex pumps that rely on tight clearances, the ultra-recessed adjustable rotor allows solids up to 1.75 inches (depending on solid type and application) to pass through without plugging, even as material size and consistency fluctuate.
This ability to pass large solids directly translates into higher production rates and reduced downtime. The pump continues to operate in debris-laden, viscous, and high-specific-gravity slurries, where frequent shutdowns are common with traditional designs. By eliminating internal clog points and reducing wear concentration, the 2-inch EDDY Pump maintains uptime, lowers maintenance frequency, and supports continuous industrial operation in demanding environments such as mining, wastewater, dredging, and process industries.

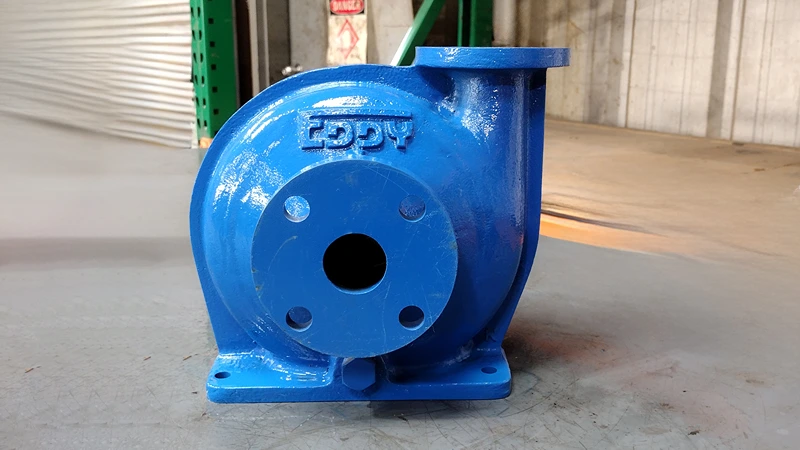

Gallery

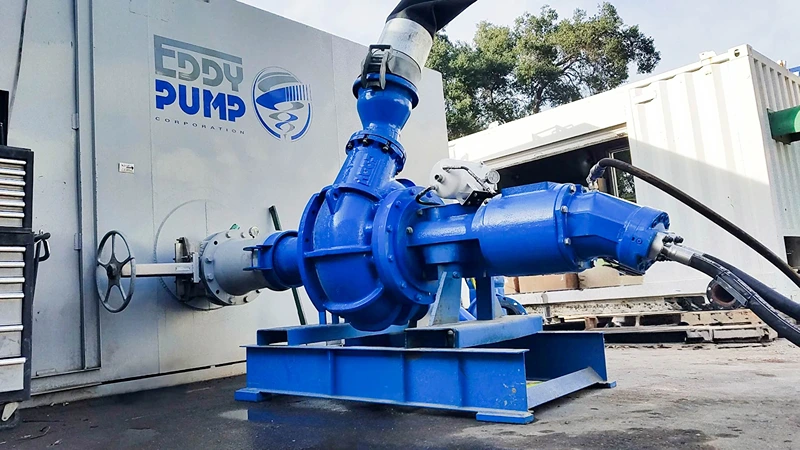

2-Inch Slurry Pump (3×2) In Action
Technical Specifications
Performance Specifications
- Flow Range: 50 – 390 GPM
- Head Range: Up to 90 ft
- Solids Handling: Up to 1.75 inches
- Percent Solids by Weight: Up to 70%
- Production Rate: 15-45 yd³/hr
- Motor Speed: 1800 RPM
Physical Specifications
- Discharge Size: 2-inch
- Suction Size: 3-inch
- Pump Orientation: Can be deployed horizontally or vertically

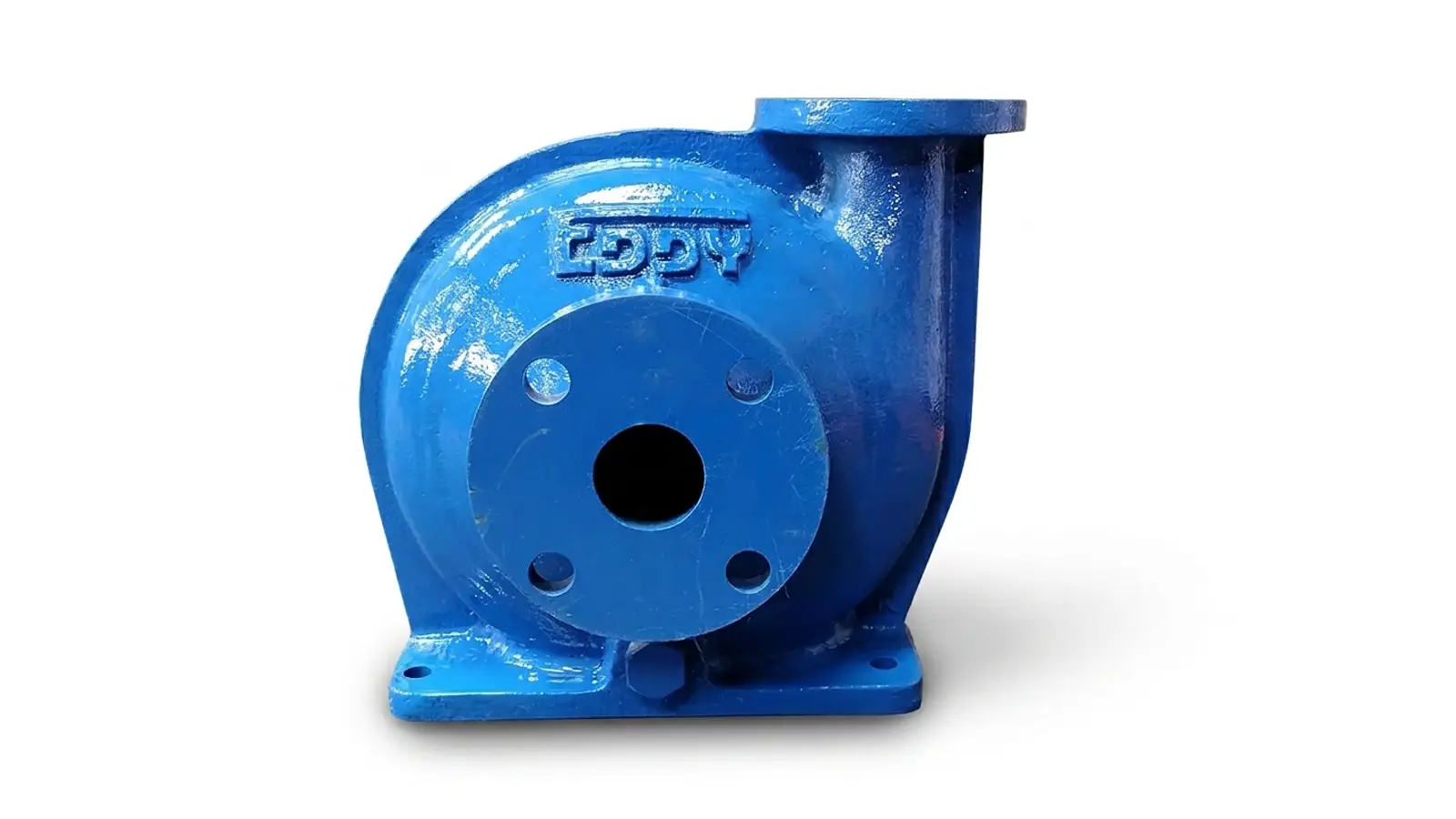

Material Construction

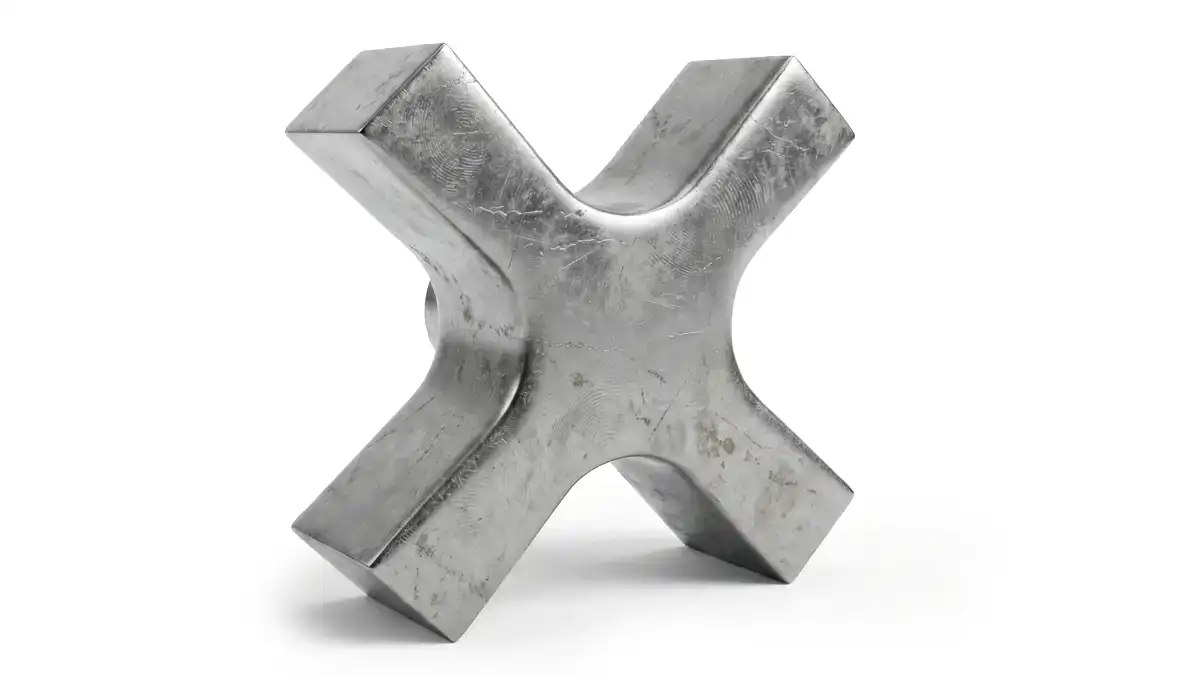

- Rotor: High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless
- Volute Casing: High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless
- Shaft: Chromoly or Stainless Steel
- Mechanical Seal: Dual Tungsten Carbide or Silicon Carbide with self-contained seal flushing system
- Bearing Housing: Ductile Iron or Stainless Steel

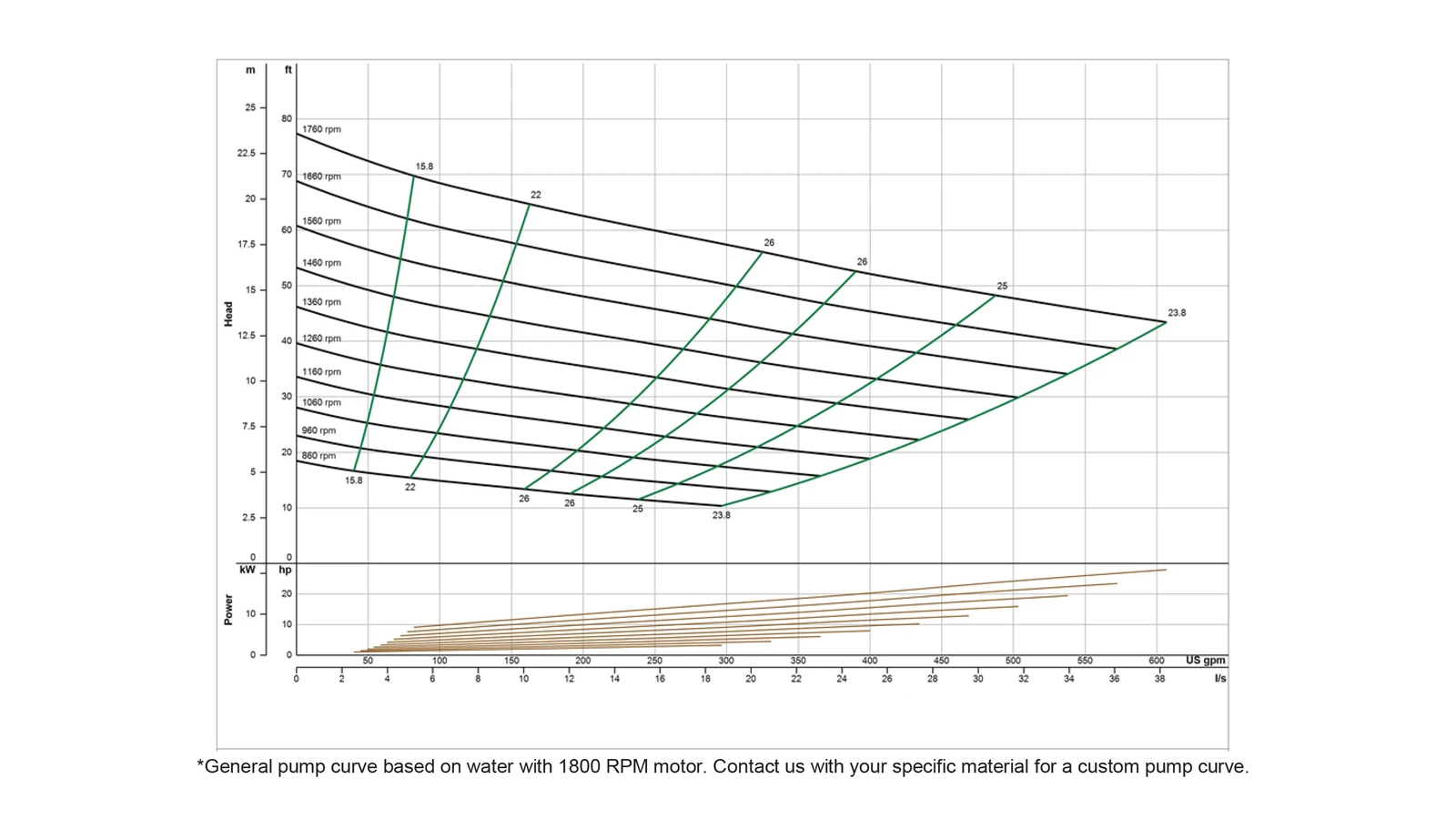

EDDY Pump – 2 Inch HD-2000 Heavy Duty Slurry Pump – Pump Curve
PUMP CURVE
The pump curve for the 2-Inch EDDY Pump illustrates its ability to deliver consistent flow across a wide operating range while handling high solids content. With flow rates up to 390 GPM and head capability reaching 90 feet at 1800 RPM, the curve reflects stable performance under varying discharge conditions. Unlike conventional pumps, actual performance remains reliable when pumping abrasive slurries, sludge, and high specific gravity materials. Custom pump curves can be developed based on the specific material, solids concentration, and operating conditions of each application.
Slurry Pump Models Comparison with 2-Inch Pump
| Model | Discharge Size | Suction Size | Flow Range (GPM) | Head Range (ft) | Solids Handling | % Solids by Weight | Production Rate (yd³/hr) | PDF  | PDF  |
|---|---|---|---|---|---|---|---|---|---|
| HD-1000 | 1 inch | 1.5 inch | 1 – 200 | Up to 170 | Up to 0.75 inch | 40–70% | 0–15 | ENG | |
| HD-2000 | 2 inch | 3 inch | 50 – 390 | Up to 90 | Up to 1.75 inches | 40–70% | 15–45 | ENG | ESP |
| HH-2000 | 2 inch | 3 inch | 100 – 600 | Up to 350 | Up to 1.75 inches | 40–70% | 25–60 | ENG | |
| HD-3000 | 3 inch | 4 inch | 100 – 780 | Up to 130 | Up to 2 inches | 40–70% | 45–75 | ENG | ESP |
| HD-4000 | 4 inch | 6 inch | 250 – 1200 | Up to 160 | Up to 3 inches | 40–70% | 75–150 | ENG | ESP |
| HD-5000 (5x5) | 5 inch | 5 inch | 400 – 1800 | Up to 225 | Up to 4 inches | 40–70% | 100–175 | ENG | |
| HD-5000 (5x6) | 5 inch | 6 inch | 400 – 1800 | Up to 225 | Up to 4 inches | 40–70% | 100–175 | ENG | |
| HD-6000 | 6 inch | 8 inch | 450 – 2500 | Up to 200 | Up to 5 inches | 40–70% | 150–200 | ENG | ESP |
| HD-8000 | 8 inch | 10 inch | 1400 – 3600 | Up to 230 | Up to 7 inches | 40–70% | 250–300 | ENG | ESP |
| HD-10000 | 10 inch | 12 inch | 1600 – 5000 | Up to 240 | Up to 9 inches | 40–70% | 300–350 | ENG | ESP |
| HD-12000 | 12 inch | 14 inch | 2600 – 7300 | Up to 180 | Up to 11 inches | 40–70% | 500–600 | ENG | ESP |
Industries Served
Mining
The 2-inch slurry pump is well suited for mining operations that require reliable handling of abrasive slurries, tailings, and process water with high solids content. Its non-clog design supports continuous operation in sump transfer, tailings management, and dewatering tasks where fine and coarse solids are present.
Sand and Aggregates
In sand and aggregate operations, this pump handles grit, sand mixtures, and wash plant slurry without frequent blockages. It performs consistently in pit dewatering, slurry transfer, and material recovery processes where conventional pumps struggle with wear and clogging.
Oil and Gas
The pump supports oil and gas applications involving drilling muds, produced water, and abrasive waste streams. Its ability to move high specific gravity fluids makes it suitable for drilling support, tank cleaning, and slurry transfer in upstream and midstream operations.
Chemical Processing
Chemical plants benefit from the pump’s ability to handle viscous and solids-laden fluids without tight internal tolerances. It is commonly used for waste transfer, byproduct handling, and slurry movement where reliability and reduced maintenance are critical.
Paper and Pulp
In paper and pulp facilities, the 2-inch slurry pump manages fibrous slurries, sludge, and process waste efficiently. Its open rotor design prevents fiber buildup and plugging, supporting stable operation in stock preparation and waste handling systems.
Fly Ash and Coal Ash
The pump is effective in fly ash and coal ash handling applications where abrasive solids and dense slurries are common. It supports ash pond transfer, sump pumping, and waste slurry movement while minimizing wear-related downtime.
Wastewater and Sludge Handling
Municipal and industrial wastewater operations use this pump for sludge transfer, grit removal, and solids-heavy waste streams. Its non-clog performance and high solids capability make it reliable for treatment plants and industrial effluent systems.
Dredging and Sediment Removal
For small-scale dredging and sediment removal tasks, the pump handles sand, silt, and slurry efficiently. It is often used in portable or confined setups where consistent solids movement and compact pump size are required.
Food Processing Waste Stream Management – Our Case Study
The Problem
The facility generated dense organic waste slurries containing peels, pulp, fats, skins, and fibrous byproducts from multiple processing lines. These materials varied in consistency throughout the day and repeatedly caused conventional pumps to clog or lose prime. Frequent shutdowns were required for manual cleaning, increasing labor costs and disrupting production schedules, especially during peak throughput periods.
The Solution
An EDDY Pump 2-inch slurry pump was deployed to move waste slurry from floor collection points and sumps to centralized treatment and digestion tanks. The EDDY Pump open rotor design, with wide internal clearances, allowed fibrous and stringy materials to pass through without plugging. The pump maintained stable flow even as solids concentration and viscosity fluctuated, eliminating the need for constant operator intervention.
The Result
Unplanned stoppages were reduced, and waste transfer became a continuous, predictable process. Maintenance frequency dropped, labor demands for cleanup decreased, and overall plant uptime improved. The facility gained better control over waste handling while supporting higher production rates without increasing system complexity.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Questions? Talk to an Engineer
Frequently Asked Questions
What materials can the 2-Inch EDDY Pump slurry pump handle?
The 2-inch EDDY Pump slurry pump is designed to move abrasive slurries, sludge, grit, sand mixtures, drilling mud, organic waste, and other high solids materials. Its open rotor design allows it to handle variable consistency fluids that would clog or wear out conventional pumps.
How much solids can this pump handle?
This pump can handle slurry with solids concentrations ranging from approximately 40 to 70 percent by weight, depending on the material characteristics. This makes it suitable for applications where conventional centrifugal pumps lose efficiency or fail entirely.
What is the maximum solids size the 2-Inch pump can pass?
The 2-inch slurry pump can pass solids up to approximately 1.75 inches in diameter. This capability reduces the need for upstream screening and minimizes the risk of clogging in debris-laden applications.
What flow rate and head range does this pump operate in?
The pump operates within a flow range of roughly 50 to 390 GPM, with head capability up to 90 feet. Actual performance depends on slurry density, solids concentration, and discharge conditions.
How does the EDDY Pump design differ from a standard centrifugal pump?

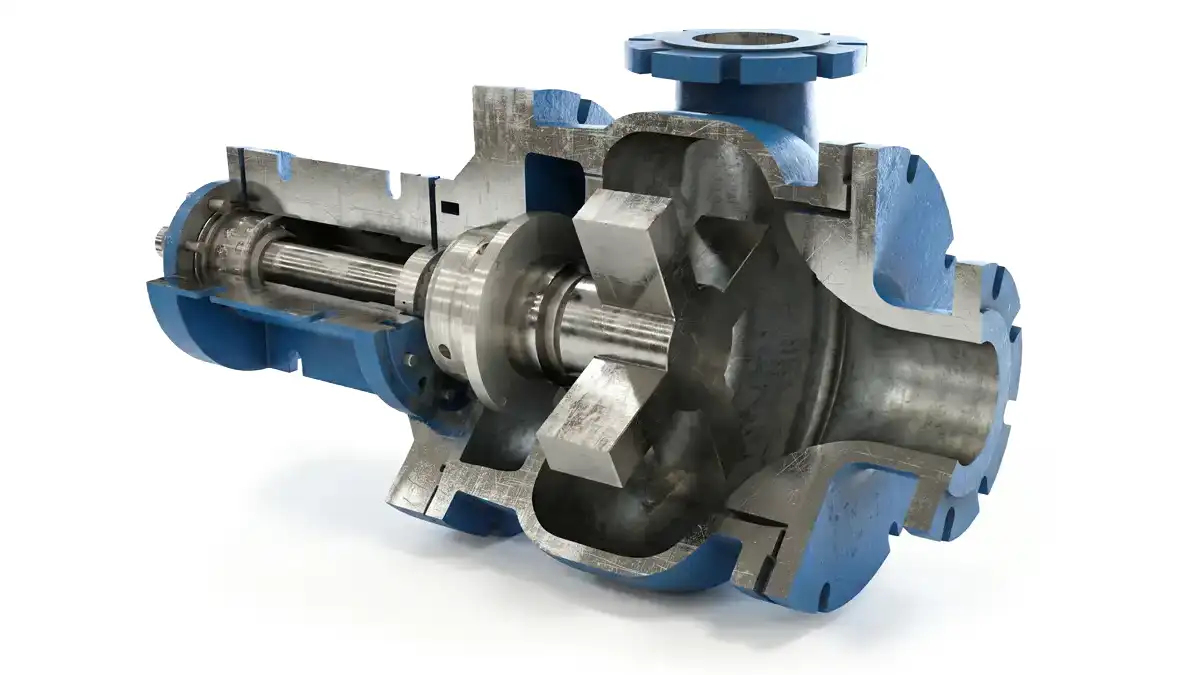

Unlike centrifugal pumps that rely on tight clearances and high velocity, the EDDY Pump uses a patented open rotor design that creates a powerful vortex. This allows solids to pass through freely while maintaining performance in abrasive and high viscosity conditions.
Can the pump be installed vertically or horizontally?
Yes, the 2-inch EDDY Pump slurry pump can be installed in either vertical or horizontal orientations. This flexibility allows it to be integrated into sumps, pits, portable skids, or fixed industrial systems.
What materials are available for wear components?
Wear components such as the rotor and volute are available in high chrome, ductile iron, stainless steel, duplex stainless, and other custom alloys. Material selection is based on abrasion level, corrosion potential, and operating environment.
How does the seal system perform in abrasive applications?
The pump is equipped with a dual mechanical seal system using tungsten carbide or silicon carbide faces, along with a self-contained seal flushing system. This design improves seal life and reliability when pumping abrasive slurries.
What maintenance is required for this pump?
Routine maintenance typically involves periodic inspection of wear components and seals, based on operating hours and material abrasiveness. Due to the non-clog design, maintenance frequency is generally lower than with conventional slurry pumps. Read More
Is a custom pump curve available for specific applications?
Yes, custom pump curves can be developed based on the actual slurry being pumped, including solids concentration, particle size, and specific gravity. This ensures accurate sizing and reliable performance for each application.
