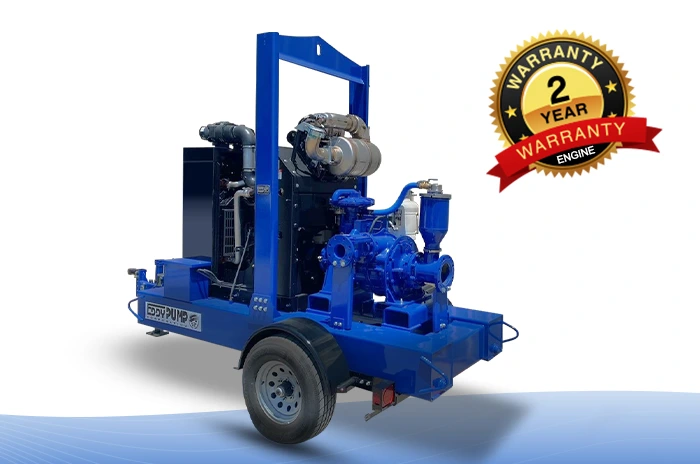

Self-Priming Pump – 4 Inch 118/125-HP
Engineered for aggressive slurry and solids handling, the DSP/HD 4000 features a 4-inch EDDY Pump powered by a 118/125 HP John Deere diesel engine. Delivering up to 1,200 GPM and 200 ft of head, it handles up to 70% solids by weight and 3-inch debris with no clogging. Built on a trailer with heavy-duty components, it’s ideal for high-volume dewatering, transferring mining slurry, and handling industrial sludge.
4-Inch EDDY Self-Priming
Key Features of the DSP/HD 4000 Self-Priming Pump
- High-Solids Handling Performance: Pumps slurries with up to 40–70% solids by weight and particles up to 3 inches in diameter, minimizing clogging and maximizing material throughput.
- Powerful Diesel Engine: Equipped with a 118/125 HP John Deere turbocharged diesel engine, delivering consistent power across variable RPMs with fuel-efficient performance.
- Self-Priming Operation: Designed for dry suction lift applications without the need for additional priming systems, reducing setup time and operator intervention.
- Extreme Abrasion Resistance: Volute and rotor constructed from high chrome, ductile iron, or stainless steel options—built to withstand highly abrasive and corrosive materials.
- Dual Mechanical Seal with Flush System: This system features tungsten or silicon carbide seals with an integrated flushing system, providing extended dry-run capability and reduced maintenance risk.
- Heavy-Duty Mobile Configuration: Mounted on a 6,000 lb-rated DOT trailer with 96-gallon fuel tank, dual leveling jacks, work light, and integrated lifting bail for rapid field deployment.
- Customizable Materials & Sizes: Available in multiple metallurgy options and rotor configurations to match specific fluid characteristics, pH levels, and abrasiveness.
- High Flow & Head Capability: Delivers flow rates from 250 to 1,200 GPM with total dynamic head up to 200 ft—optimized for demanding slurry pumping environments.
- Integrated Gauges & Tie-Downs: Includes flow gauge, engine control panel, work light, and four D-ring tie-downs for secure transport and field monitoring.
- Low Maintenance, High Reliability: Engineered to reduce wear, simplify service intervals, and operate continuously under harsh industrial conditions.
Gallery
4-inch self-priming slurry pump in
real world applications
Youtube not loading? Try our alternate video player
How the Pump Works
The 4-Inch DSP/HD 4000 self-priming pump features EDDY Pump’s patented open rotor design, which generates a powerful eddy current inside the volute. This vortex motion allows the pump to move high-viscosity fluids and slurries with minimal restriction, even those containing solids up to 3 inches in diameter.
Its key advantage lies in the vacuum-assisted self-priming system. At startup, the vacuum chamber evacuates air from the suction line, enabling the pump to draw fluid without the need for manual priming or foot valves. Once primed, the system maintains a consistent flow—even through fluctuating suction conditions—eliminating the need for complex priming hardware and minimizing operator intervention.
Vacuum-Assisted Startup
Built for Real-World Use
The DSP pump 4000 series is designed for reliable performance in the harshest environments—from construction and mining sites to flood remediation and slurry transfer operations.
Here’s why it stands out:
- Automatic Priming: A vacuum-assisted chamber eliminates the need for manual priming. Simply start the engine, and the pump takes care of the rest.
- Solids-Handling Power: Moves sludge, gravel, sand, and debris up to 3 inches with minimal wear or clogging.
- Extended Runtime: A 96-gallon fuel tank delivers up to 12–16 hours of operation on a full load, reducing refueling downtime.
- Towable & Portable: Trailer-mounted with DOT lighting, heavy-duty hitch, and integrated lifting bail for easy site relocation.
- Built to Last: Corrosion-resistant metallurgy and no-close-tolerance design mean fewer breakdowns and longer service intervals.
Technical Specifications
- Powered by a 118–125 HP John Deere Tier III turbocharged diesel engine
- Delivers a flow range of 250 to 1,200 gallons per minute (GPM)
- Capable of generating a discharge head up to 200 feet
- 6-inch suction inlet and 4-inch discharge outlet
- Handles solids up to 3 inches in diameter without clogging
- Pumps slurries with 40–70% solids by weight
- Equipped with dual mechanical seals (tungsten or silicon carbide) and a self-contained flush system
- Constructed from high chrome, ductile iron, stainless steel, or duplex stainless steel for abrasion and corrosion resistance
- Includes a 96-gallon integrated fuel tank, consuming approximately 6–7 gallons per hour at full load
- Mounted on a DOT-rated single-axle 6K trailer with leveling jacks, hitch, and lifting bail for field mobility
Integrated Lifting Bail
Standard Configuration – 4-Inch DSP/HD 4000 Self-Priming Pump
- 4-Inch EDDY Self-Priming Slurry Pump
- 118/125 HP John Deere Tier III Diesel Engine
- 6K Single Axle DOT-Compliant Trailer
- 96-Gallon Integrated Fuel Tank
- 3-Position 2-5/16” Heavy-Duty Hitch
- DOT Lighting and Braking Package
- Dual 8K Leveling Jacks + Integrated Lifting Bail
- Work Light, Flow Meter, and 4 D-Ring Tie-Downs
EDDY Pump – 4 Inch Self-Priming Pump – Pump Curve
PUMP CURVE
For the 4-inch 118/125-HP self-priming pump, the pump curve shows how the unit transitions from vacuum priming into sustained pumping. It is used to identify efficient operating zones across changing suction lifts, long discharge runs, and high-solids slurry conditions while minimizing fuel use and avoiding off-curve operation.
Pump Construction & Materials
| PARTS | STANDARD MATERIALS |
| ROTOR | High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless - Various sizes and custom metals available |
| VOLUTE CASING | High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless - Custom metals available |
| SHAFT | Chromoly or Stainless Steel |
| MECHANICAL SEAL | Dual Tungsten or Silicon CarbideMechanical Seal with Self Contained Seal Flushing System |
| BEARING HOUSING | Ductile Iron or Stainless Steel |
Dry Prime Efficiency
ENGINE SPECS
- 118 / 125HP Diesel Engine
- Liquid Cooled, 12 Volt Power In-Line 4 Cycle Turbo Charge Diesel
- Electronic Fuel System
- Manual Control Panel
- 2-Year 2000-Hour Warranty
Self-Priming Pump Comparison Table
| Model | Discharge Size | Suction Size | Power | Flow Range (GPM) | Head Range (ft) | Solids Handling | % Solids by Weight | Max Speed (RPM) | |
|---|---|---|---|---|---|---|---|---|---|
| DSP/HD 3000 | 3" | 4" | 43 HP | 100 - 780 | Up to 130 | Up to 2" | 40-70% | 1800 | ENG |
| DSP/HD 4000 | 4" | 6" | 43 HP | 250 - 1200 | Up to 200 | Up to 3" | 40-70% | 1800 | ENG |
| DSP/HD 4000 | 4" | 6" | 115 HP | 250 - 1200 | Up to 200 | Up to 3" | 40-70% | 1800 | ENG |
| DSP/HD 6000 | 6" | 8" | 115 HP | 450 - 2000 | Up to 200 | Up to 5" | 40-70% | 1800 | ENG |
| DSP/HD 6000 | 6" | 8" | 173 HP | 450 - 2000 | Up to 200 | Up to 5" | 40-70% | 1800 | ENG |
| DSP/HD 8000 | 8" | 10" | 550 HP | 1600 - 5000 | Up to 240 | Up to 7" | 40-70% | 1200 | ENG |
| DSP/HD 10000 | 10" | 12" | 550 HP | 1600 - 5000 | Up to 240 | Up to 9" | 40-70% | 1200 | ENG |
| DSP/HD 12000 | 12" | 14" | 700 HP | 2600 - 7300 | Up to 180 | Up to 11" | 40-70% | 900 | ENG |
4-inch self-priming slurry pump
Industrial Applications
The DSP/HD 4000 Self-Priming Pump is built for high-performance pumping in harsh, solids-laden environments. Its ability to handle heavy slurries, abrasives, and large debris makes it ideal for the following industries:
Mining and Mineral Processing
Handles tailings, slurry transfer, and dewatering operations with high-solids content. Ideal for moving dense mineral suspensions and minimizing downtime due to clogging.
Construction and Site Dewatering
Pumps water mixed with silt, sand, or gravel from excavations, foundation pits, and tunnels—keeping job sites operational and dry.
Wastewater Treatment and Municipal Sludge
Efficiently transfers biosolids, sludge, and grit from treatment lagoons or clarifiers. Supports continuous operation in municipal and industrial wastewater systems.
Dredging and Sediment Removal
Suited for shallow dredging, pond cleanup, or canal maintenance where portability and self-priming capability reduce setup time and equipment complexity.
Oil & Gas Operations
Moves thick drilling muds, tank-bottom sludge, or oily wastewater with minimal maintenance, even in remote and rugged field locations.
Power Generation and Ash Handling
Used for pumping fly ash, bottom ash, or slurry mixtures in coal-fired and thermal power plants. Built to withstand corrosive and abrasive waste byproducts.
Industrial Manufacturing and Pulp & Paper
Transfers high-viscosity process waste, fiber-rich slurry, or abrasive chemicals in demanding industrial environments.
Why Choose EDDY Pump?
- Patented Non-Clog Technology: Moves solids up to 5 inches without risk of jamming.
- Made in the USA: Designed and built in California with full customer support.
- Trailer-Mounted Versatility: Deploys quickly to any job site with a DOT-compliant trailer.
- Dual Seal Protection: Dry-run capable for tough field conditions.
- Modular & Customizable: Options for metallurgy, mounting, and power source.
- Decades of Expertise: Over 40 years serving mining, dredging, and heavy industries.
- Full-Service Support: Engineering assistance, installation guidance, and parts availability.
Case Study Portable Slurry Pumping at Frac Site
Challenge
A fluid services contractor needed a rugged, portable pumping solution to clean out multiple frac tanks at a remote well pad. The tanks contained abrasive drilling mud and bentonite-barite slurry with high solids content. Previous pump setups required frequent maintenance and failed to run continuously in demanding field conditions.
Solution
The contractor deployed the 4-Inch DSP/HD 4000 self-priming pump, mounted on a DOT-rated single-axle trailer. Its high chrome rotor and volute withstood the abrasive slurry, while the vacuum-assisted self-priming system eliminated the need for external priming tools. With a 96-gallon fuel tank and 12–14 hours of runtime, the unit was perfectly suited for remote, off-grid operations.
Result
- Completed 10 frac tank cleanouts in just 3 days
- Zero clogging or downtime, even with high-viscosity slurry
- Fuel-efficient performance reduces on-site refueling needs
- Operators praised its ease of transport and setup, reducing manpower needs by 25%
- Extended equipment life due to abrasion-resistant materials and a sealed flush system
The Best Non-Clog and High Solids Slurry Pump on the Market. Since 1984.
We manufacture both pump and dredge equipment for maximum compatibility
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Frequently Asked Questions
What types of materials can this 4-inch self-priming pump handle?
The high-head self-priming pump is designed for high-solids applications and can handle slurries, sludge, drilling mud, sand mixtures, and debris with solids up to 3 inches in diameter and up to 70% solids by weight.
Is the pump truly self-priming?
Yes. It features a vacuum-assisted self-priming chamber that eliminates the need for manual priming, foot valves, or flooding. It can prime and re-prime automatically during operation.
What kind of engine powers the system?
The pump is powered by a 118/125 HP John Deere Tier III turbocharged diesel engine, built for durability, fuel efficiency, and continuous-duty performance.
How long can the pump operate on a full tank?
With a 96-gallon integrated fuel tank, the industrial self-priming pump can run for approximately 12 to 16 hours, depending on load and operating speed.
What size trailer is included in the standard configuration?
The pump is mounted on a DOT-compliant single-axle 6K-rated trailer, complete with a heavy-duty hitch, integrated leveling jacks, tie-downs, and road lighting for easy towing and field deployment.
Does it require frequent maintenance?
No. The open rotor design eliminates close tolerances and reduces wear and tear. Combined with dual mechanical seals and high-chrome materials, the unit is built for low-maintenance, long-term operation.
What kind of solids or slurry concentrations can it handle?
It can handle slurries with 40–70% solids by weight, including abrasive or high-viscosity materials commonly found in mining, dredging, or wastewater applications.
Is the pump suitable for continuous operation?
Yes. The engine and pump system are designed for extended duty cycles, featuring sealed bearings, flushable mechanical seals, and robust materials that enable continuous operation in demanding environments.
Can the pump be customized for different applications?
Yes. You can choose from different material options (high chrome, stainless steel, duplex SS), trailer or skid mounts, monitoring add-ons (flow meter, gauges), and hose packages based on your needs.
How do I know if this is the right pump for my project?
Provide your flow rate, head, material type, and application details to the EDDY Pump team. They’ll assist with pump selection, custom curve generation, and system configuration for optimal performance.
