Real-World Applications of Doppler Shift Flow Meters in Dredging and Slurry Pumping

Dredging and slurry pumping operations rely heavily on precise and reliable flow measurements. Whether you’re deepening a harbor, reclaiming land, or moving tailings in a mining operation, knowing the exact flow rate of your slurry mixture is essential to maximizing efficiency, minimizing downtime, and avoiding costly equipment failures.

Flow measurement in these environments, however, is anything but straightforward. Slurries are abrasive, often contain large solids, and can vary greatly in density and viscosity. Traditional flow meters struggle under these conditions, either failing prematurely or delivering unreliable data.

This is where the Doppler shift flow meter shines. Designed to handle harsh environments and fluid mixtures with entrained solids or air bubbles, this meter offers a non-invasive, accurate, and robust solution for flow monitoring in dredging and mining operations. In this article, we’ll explore the technology behind the Doppler shift ultrasonic flow meter, its advantages in real-world settings, and how it integrates seamlessly with heavy-duty slurry pumps like those from EDDY Pump. The use of a Doppler shift calculator is a critical companion tool for these meters, further enhancing their effectiveness in the field. Whether you’re using a Doppler shift flow meter, a Doppler shift ultrasonic flow meter, or a Doppler frequency shift flow meter, understanding their real-world applications is vital.

The Role of Doppler Flow Meters in Harsh Environments

Dredging and slurry transport systems face some of the toughest operating conditions in industrial fluid handling. High-solid-content mixtures, corrosive chemicals, and uneven material loads present unique challenges that can quickly wear down or disrupt standard monitoring tools.

Understanding the Environment

Let’s break down the conditions typical of a dredging or slurry system:

• Abrasive Slurries: Sand, silt, rocks, and industrial byproducts rapidly erode the internal components of traditional meters.
• Variable Density & Viscosity: Slurry composition can change rapidly depending on dredging depth or ore body composition.
• Suspended Solids & Bubbles: High solid loads and entrained gas can interrupt signal transmission in many types of meters.
• Harsh Installation Conditions: Remote locations, limited access, and the presence of vibration, electrical noise, and extreme weather demand rugged equipment.

Why Doppler Flow Meters Work

The Doppler-shift ultrasonic flow meter operates by emitting high-frequency sound waves into a pipe and measuring the frequency shift that occurs as the waves bounce off moving particles or bubbles in the slurry. This frequency shift—known as the Doppler effect—is directly proportional to the velocity of the slurry.

Because the meter relies on reflections from suspended solids or air, it works better in dirty, turbulent flows. Additionally, these meters are non-intrusive and clamp onto the outside of the pipe, meaning there’s no contact with the abrasive fluid and minimal wear over time. When paired with a Doppler shift calculator, operators can convert the data into real-time volumetric flow information, enhancing system control. The Doppler frequency shift flow meter is ideal for operations involving constant fluctuations in slurry composition.

Key Performance Benefits

• Non-invasive installation eliminates downtime and avoids contamination risks.
• Durability in abrasive and chemically aggressive environments.
• Low maintenance due to the lack of moving parts or internal contact.
• Real-time monitoring to optimize pump performance and system control.
• Enhanced data integration when using a Doppler shift calculator for operational analysis.
• The Doppler frequency shift flow meter supports stable performance across a variety of challenging conditions.

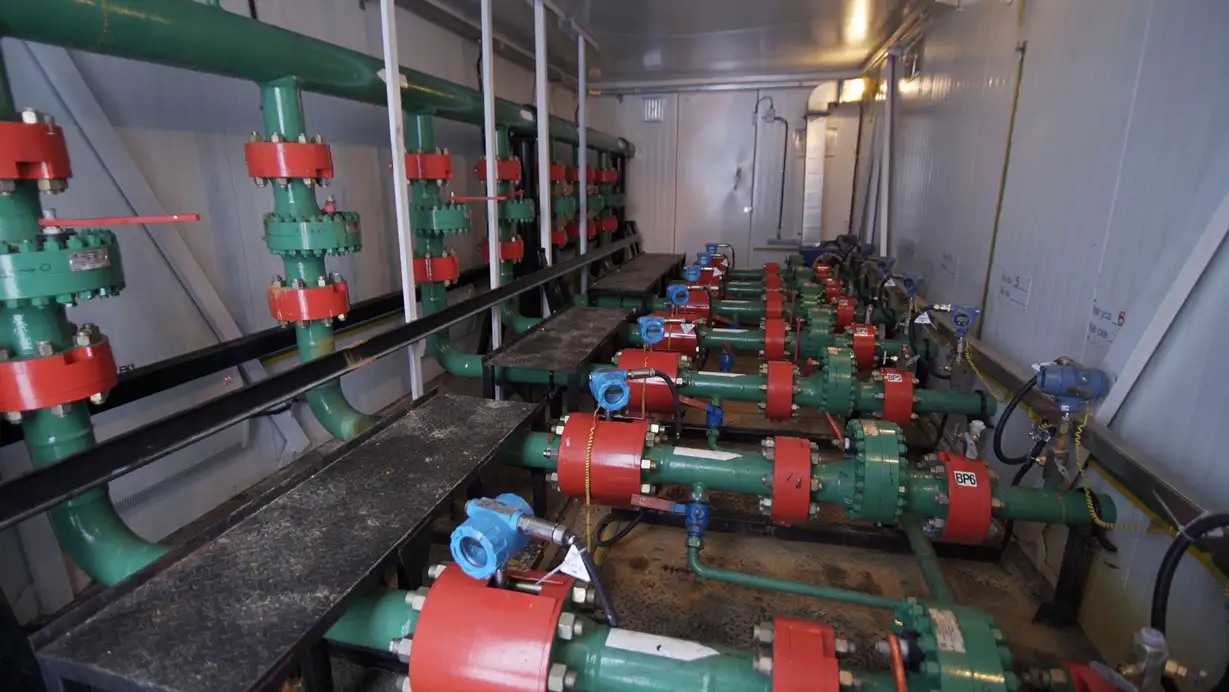

Comparing Flow Measurement Technologies

Selecting the right flow meter for slurry applications can be the difference between a smooth operation and constant troubleshooting. While other meters have strengths, the Doppler shift flow meter offers distinct advantages in slurry-heavy and dredging applications.

Limitations of Traditional Flow Meters

• Mechanical Meters (Turbine, Paddle Wheel): These meters are highly vulnerable to abrasion and clogging. Solids in the slurry wear down moving parts, leading to frequent failure.
• Transit-Time Ultrasonic Meters: While useful for clean liquids, these meters require a homogeneous, bubble-free flow for accurate readings. Slurries with entrained solids or air disrupt their performance.
• Magnetic Flow Meters (Magmeters): Effective with conductive fluids, magmeters are commonly used in slurry systems. However, they are expensive, require invasive installation, and may suffer from coating or buildup on the electrodes.

The Doppler frequency shift flow meter overcomes these issues by functioning optimally when particles or gas bubbles are present in the fluid, which is exactly what characterizes dredging and mining operations. The Doppler shift ultrasonic flow meter is not only more durable in these environments but also easier to install and maintain. Operators can further enhance accuracy and system feedback by integrating a Doppler shift calculator into their monitoring routines. A Doppler shift flow meter can offer reliable, actionable insights even in the presence of variable solids and debris.

Case Study 1: Using Doppler Flow Meters in a Dredging Project

Project Background

A large-scale dredging operation was launched along the Gulf Coast with the goal of deepening a heavily trafficked shipping channel. This critical infrastructure project aimed to improve access for larger commercial vessels and enhance maritime logistics for the region. The scope of work involved removing over 500,000 cubic yards of sediment, primarily consisting of fine silt and sand, over a scheduled period of six months.

To handle the abrasive and high-volume nature of the material, the contractor utilized a barge-mounted dredging platform equipped with a high-capacity EDDY Pump. Known for its non-clogging design and efficiency in handling heavy slurries, the EDDY Pump played a central role in ensuring consistent material removal and transport through high-density slurry lines to a designated disposal area.

Flow Meter Integration

To maintain efficiency, monitor operational health, and ensure compliance with project specifications, Doppler-shift ultrasonic flow meters were integrated into the dredging system. These flow meters were strategically installed on both the suction and discharge lines of the pump system.

Engineers selected Doppler flow meters for several key reasons: they are non-intrusive, require no direct contact with the slurry, and can be clamped externally onto the HDPE pipelines already in use. This allowed for seamless integration into the system without interrupting dredging operations. The Doppler flow meters continuously measured flow velocity by analyzing frequency shifts in ultrasonic waves as they reflected off suspended particles within the slurry—a method well-suited to the high-solid-content conditions of dredging.

Results

• Efficiency Gains:

Operators used real-time flow velocity data from the Doppler flow meters to make on-the-fly adjustments to dredge RPMs and nozzle orientation. This data-driven approach optimized the slurry density throughout the project, improving overall material throughput while reducing fuel consumption by 12%. The ability to fine-tune system performance in real time contributed to significant operational gains.

• Reduced Maintenance Requirements:

The Doppler shift flow meters operated flawlessly for the entire six-month duration without the need for recalibration or servicing. Since these meters contain no moving parts and do not contact the slurry directly, they were unaffected by abrasive wear or clogging—common issues with mechanical flow meters in dredging environments.

• Improved Compliance and Reporting:

Continuous flow monitoring allowed for highly accurate documentation of the sediment volume removed. This real-time data was essential for meeting both regulatory agency guidelines and client reporting standards. A Doppler shift calculator was used to convert flow velocity into volumetric totals, simplifying compliance documentation. Even with fluctuating slurry densities, the Doppler frequency shift flow meters provided reliable feedback, ensuring data consistency throughout the operation.

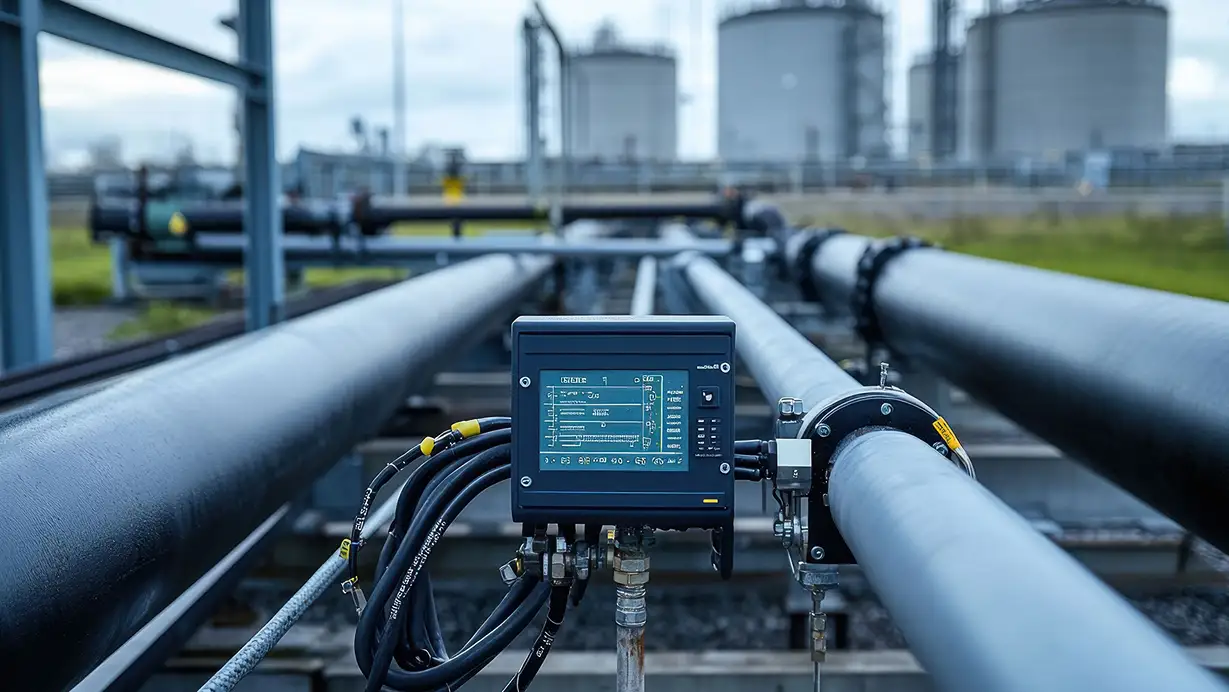

Case Study 2: Slurry Pump Monitoring in a Mining Operation

Problem

A large-scale copper mining operation in South America faced significant operational challenges related to its tailings disposal system. The facility used a complex network of long-distance pipelines to transport abrasive slurry—a mixture of water and fine waste particles—from the processing plant to a remote tailings pond. However, due to the lack of accurate and continuous flow monitoring, operators struggled with unpredictable flow rates. This often resulted in over-pressurization of the pumps, excessive wear on pipeline interiors, and frequent blockages. Each blockage required unscheduled shutdowns and costly maintenance, which directly impacted production efficiency and operating costs.

Solution

To address these issues, the mine’s engineering team deployed Doppler-shift ultrasonic flow meters at strategic points across the slurry pipeline network. These flow meters were chosen specifically for their ability to measure the velocity of abrasive and solid-laden fluids—conditions that are typically difficult for conventional flow meters to handle. By analyzing the frequency shift of ultrasonic signals reflected off particles in the slurry, these meters deliver accurate, real-time flow velocity data. This allowed the control room team to monitor pipeline performance and make immediate operational adjustments continuously. A Doppler shift calculator was also integrated to help interpret the data and streamline pump speed optimization.

Outcome

The implementation of the Doppler shift flow meters led to several measurable improvements:

• Reduced Downtime:

The frequency of pipe blockages dropped by 60%, largely due to the team’s ability to adjust pump speeds proactively based on real-time flow data. This reduction in clogging events significantly minimized unplanned downtime.

• Improved System Control:

Operators gained remote visibility over the entire slurry transport system. With flow meters transmitting continuous data, they could make informed decisions from a central control hub without needing to inspect pipeline sections physically.

• Cost Savings:

Over one quarter, the mine reported maintenance cost savings of approximately $85,000. These savings were attributed to decreased wear on pumps and pipes, reduced labor for emergency maintenance, and better system optimization. The insights provided by the Doppler frequency shift readings helped ensure smoother operation, especially during periods of peak output.

Leveraging Doppler Shift Calculators for Accuracy

While Doppler shift flow meters are user-friendly, achieving optimal accuracy depends on proper calibration and understanding of how to interpret the data.

Real-Time Calculations in the Field

Many Doppler-shift ultrasonic flow meters now include built-in Doppler-shift calculators or allow integration with handheld devices and control systems. These calculators take inputs such as:

• Pipe material and diameter
• Slurry density
• Transducer frequency and angle

Based on the measured frequency shift, the Doppler shift calculator computes flow velocity and totalized flow, which can then be logged or used in control loops. The Doppler frequency shift flow meter relies on the accurate interpretation of Doppler signal returns to maintain reliable measurements. Combining a Doppler shift flow meter with regular calculator usage enables more proactive maintenance and optimization.

Operator Usage

Technicians can use handheld Doppler frequency shift flow meters during initial system setup or leave them permanently installed for ongoing monitoring. Real-time velocity readings allow teams to fine-tune pump speed, valve positions, and even dredge positioning for maximum material throughput.

Tips for Calibration and Adjustment

• Ensure proper transducer alignment—angle matters for accuracy.
• Check for minimum particle size and concentration—some Doppler shift flow meters require a baseline level of reflectivity.
• Regularly verify the pipe condition—buildup or damage can affect signal quality.
• Use data logging and trending—identify patterns that predict wear or performance drops.

Using a Doppler shift calculator regularly during operations also helps detect anomalies early, such as a sudden drop in velocity or unexpected changes in volumetric flow. Every Doppler-shift ultrasonic flow meter benefits from a calibrated and context-aware operational plan.

EDDY Pump + Doppler Meter: A Smart Pairing

When it comes to pumping challenging materials, EDDY Pump’s non-clogging, high-efficiency design pairs perfectly with the rugged capabilities of the Doppler-shift ultrasonic flow meter.

Enhancing Performance

EDDY Pumps are designed to move high-viscosity, high-solid-content slurries without relying on close tolerances or impellers. The Doppler frequency shift flow meter complements this by providing continuous, non-intrusive feedback on system performance.

With Doppler shift flow monitoring:

• Operators can find the ideal RPM-to-flow sweet spot.
• Pump wear can be tracked by monitoring changes in flow efficiency.
• Unusual flow rate drops can indicate suction blockages or discharge restrictions.
• Doppler shift calculators allow users to analyze field data and improve operations instantly.
• A Doppler shift flow meter offers compatibility with existing EDDY Pump systems.

Custom Solutions for Demanding Clients

Whether it’s a dredge operator working in a remote river system or a mining company needing 24/7 system oversight, the EDDY Pump + Doppler shift flow meter combination provides a tailored solution that meets regulatory, performance, and durability standards.

Packages can include:

• Pre-calibrated Doppler shift ultrasonic flow meters matched to your pipe specs.
• Integration with SCADA systems for full automation.
• Enclosure options for offshore or corrosive environments.
• Wireless telemetry for remote operation.
• Built-in Doppler shift calculators for real-time field analysis.

Remote Monitoring and Automation

Thanks to digital integration capabilities, the Doppler shift flow meter can feed data directly into automation systems. This opens the door for AI-driven pump control, predictive maintenance, and even mobile alerts for operators in the field. The use of a Doppler shift calculator becomes even more valuable in these scenarios, providing live insight for smarter decisions. As demand for smart infrastructure grows, this synergy between sensors and software becomes a powerful asset. Whether using a Doppler shift ultrasonic flow meter or a Doppler frequency shift flow meter, the results speak for themselves.

Conclusion

Flow measurement is a foundational element of any successful dredging or slurry pumping operation. In environments where abrasion, density changes, and solids content wreak havoc on traditional flow meters, the Doppler shift flow meter stands out as a proven, practical solution.

From real-time performance monitoring to long-term operational savings, doppler-shift ultrasonic flow meters offer dredging and mining professionals a way to improve accuracy, extend equipment life, and meet production goals with confidence. The Doppler frequency shift flow meter not only ensures smoother operations but also supports better regulatory compliance and project efficiency.

When paired with a robust system like the EDDY Pump—designed to thrive in the harshest conditions—the Doppler shift flow meter becomes more than just a monitoring tool. It becomes a central part of a smart, efficient, and cost-effective pumping solution. With help from a Doppler shift calculator, operators are empowered with instant, actionable data that improves outcomes across the board. A comprehensive approach that combines a Doppler-shift ultrasonic flow meter with a Doppler frequency-shift flow meter guarantees the best possible insights for industrial slurry systems.

Looking to enhance your dredging or slurry transport operations? Explore our integrated EDDY Pump and Doppler shift ultrasonic flow meter packages for a turnkey solution that brings precision and power to your system. Contact our engineering team today for a custom setup that fits your project. Contact Us Now!

FAQs

1. Can a Doppler flow meter detect early signs of slurry buildup before a clog occurs?

Answer: Yes, by continuously tracking real-time flow velocity, the meter can reveal gradual declines in throughput that often precede clogging. Trending this data alerts operators to rising risk, without waiting for a full blockage.

2. Is it possible to use a Doppler meter on temporary setups or rotating equipment?

Answer: Absolutely. Since the unit is clamp-on and non-intrusive, it can be quickly attached, detached, and moved between pipelines or onto rotating dredge arms, offering flexible monitoring without halting operations.

3. How does the Doppler flow meter support remote or unmanned operation?

Answer: Integrated with wireless telemetry and SCADA compatibility, the meter transmits live flow data remotely. Pumps can be adjusted automatically, and alerts sent to operators, enabling tight control over distant or autonomous dredging sites.

4. Can the Doppler meter help tailor pump RPM for optimized energy use?

Answer: Yep. With accurate flow-rate feedback, operators can dial in pump speed precisely, ensuring optimal slurry movement without unnecessary power consumption. This helps cut energy costs while maintaining output.

5. What role does a Doppler meter play in maintenance planning?

Answer: Steady flow rates indicate healthy system operation. Sudden dips flag issues like wear or erosion. By logging trends, maintenance can shift from fixed schedules to need-based, reducing unplanned downtime and extending equipment life.
