Industrial pumps are the workhorses of many sectors, driving essential processes in industries such as mining, construction, oil and gas, chemical processing, and water treatment. However, lurking within these crucial systems is a destructive phenomenon that can silently sabotage their performance: pump cavitations. Cavitation in pumps is one of the leading causes of premature pump failure, leading to costly repairs, reduced efficiency, and unplanned downtime.
While pump cavitations may not present immediate catastrophic damage, their gradual impact can lead to a host of problems, including excessive noise, vibration, reduced flow rates, and damaged pump components like impellers and seals. Understanding how to pump cavitations occur, their effects, and the best preventive measures can save operators from significant financial and operational setbacks.
In this article, we’ll explore the dangers of pump cavitation, how to recognize early warning signs, and why cavitation in centrifugal pumps is particularly problematic. We’ll also explore actionable strategies for preventing pump cavitations and highlight how innovative designs—like those from EDDY Pumps—are combatting this silent menace in industrial operations.
How Cavitation Affects Pump Mechanics
What is Cavitation?
Cavitation in pumps is a complex yet common phenomenon in industrial pumping systems, defined by the formation and subsequent collapse of vapor bubbles in a liquid. It occurs when the pressure of a fluid drops below its vapor pressure at a given temperature, causing pockets of vapor (bubbles) to form within the pump. These vapor bubbles are carried along with the fluid through the pump, where they eventually move into regions of higher pressure. When they encounter this higher pressure, the bubbles rapidly implode, sending out shock waves strong enough to erode metal surfaces.
This process may sound harmless or even minuscule, but the reality is far from it. Each bubble collapse creates a micro-jet that blasts the pump’s internal components at extremely high velocities. Over time, this continuous erosion compromises the pump’s ability to perform effectively, leading to costly repairs, downtime, and potentially catastrophic pump failure.
Cavitation in centrifugal pumps is particularly problematic due to their high-speed operation and low suction pressure conditions, which allow vapor bubbles to form easily.
The Impact on Pump Components
When cavitation in pumps occurs, it has a direct and damaging impact on several critical components of the pump. Understanding how these components are affected is crucial for grasping the severity of pump cavitations:
Impeller Damage
The impeller is the heart of any pump and is responsible for driving the fluid through the system. In cavitation-prone pumps, the impeller faces the most significant risk of damage. The continuous collapse of vapor bubbles near the impeller blades creates pitting—tiny holes or craters on the surface of the impeller. Over time, this pitting leads to the loss of material, reducing the aerodynamic efficiency of the impeller. As the impeller’s surface becomes rough and uneven, its ability to transfer energy to the fluid diminishes, drastically reducing the overall efficiency of the pump.
Seal Wear and Leakage
Cavitation in pumps doesn’t stop at damaging the impeller. Mechanical seals, which are essential for preventing fluid leaks and maintaining pressure inside the pump, are also vulnerable to cavitation damage. The constant pressure fluctuations and increased vibrations caused by pump cavitations place undue stress on the seals, leading to premature wear and eventual failure. A worn-out seal can result in fluid leaks, decreased system pressure, and contamination of the pumped fluid, all of which compromise the pump’s performance.
Casing Erosion
Pump cavitations can also cause significant damage to the pump casing. As vapor bubbles collapse near the pump walls, they release intense shock waves that erode the casing material. Over time, the pump casing can develop cracks or weaken to the point where it can no longer maintain the system’s internal pressure. If the casing ruptures during operation, this can lead to catastrophic failure.
Bearings and Shaft Misalignment
In addition to causing direct material damage, pump cavitations also induce mechanical instability in the pump. The implosion of vapor bubbles causes vibrations that can misalign the pump shaft or wear down bearings. If left unchecked, these vibrations can lead to excessive bearing wear, shaft misalignment, and even motor damage.
Cavitation in pumps is a widespread issue across various industries, including wastewater treatment, oil and gas, and chemical processing. Addressing cavitation in pumps is crucial for maintaining long-term operational efficiency, reducing maintenance costs, and extending the life of the equipment.
Identifying Early Signs of Cavitation
Detecting pump cavitations early can mean the difference between minor adjustments and a complete system overhaul. Operators should be aware of the telltale signs that indicate cavitation in pumps is occurring so they can take immediate corrective action before more severe damage occurs.
Unusual Noise and Vibrations
One of the most common and earliest signs of pump cavitations is an unusual noise emanating from the pump. The sound, often described as a “gravel-like” or “rumbling” noise, is caused by the violent collapse of vapor bubbles inside the pump. It may resemble the sound of stones or pebbles rattling inside the pump casing, which is a clear indicator that cavitation in centrifugal pumps is present.
In addition to the noise, operators may also notice increased vibrations. The implosion of vapor bubbles creates imbalances in the fluid flow, leading to vibrations that can spread throughout the pump and connected piping system. If left unchecked, these vibrations can cause further mechanical issues, including seal damage and shaft misalignment in cavitated pumps.
Pressure Fluctuations
Pump cavitations also cause erratic pressure fluctuations, particularly on the suction side of the pump, where vapor bubbles are most likely to form. Operators may observe sudden drops in pressure as the vapor bubbles form and subsequently implode. These pressure changes disrupt the smooth operation of the pump, reducing its efficiency and potentially leading to shutdowns.
By installing pressure gauges and flow meters at strategic points in the system, operators can detect these fluctuations early and take preventive action before cavitation in centrifugal pumps causes extensive damage.
Reduced Flow Rates and Performance Decline
Cavitation in centrifugal pumps can significantly reduce the pump’s ability to maintain consistent flow rates. As vapor bubbles form and collapse, they reduce the effective area of the impeller blades, leading to reduced fluid flow. Over time, operators may notice a decline in pump performance, including lower discharge pressures and flow rates.
When pump performance declines, it’s essential to investigate whether pump cavitations are the culprit. This is particularly true in cavitation in centrifugal pumps, where cavitation can severely compromise the pump’s ability to generate the necessary pressure and flow.
Cavitation in Centrifugal Pumps: A Special Concern
Centrifugal pumps are among the most common types of pumps used in industrial applications due to their versatility, efficiency, and ability to handle large volumes of fluid. However, they are also particularly susceptible to pump cavitations, which can compromise their performance and longevity.
Why Centrifugal Pumps Are More Susceptible to Cavitation
Cavitation in centrifugal pumps is more common due to their operation—centrifugal pumps work by converting the kinetic energy of the impeller into pressure energy to move fluids. However, as the impeller rotates at high speeds, it creates areas of low pressure on the suction side of the pump. If the pressure drops below the fluid’s vapor pressure, vapor bubbles form, leading to pump cavitations.
The high rotational speeds of cavitation in centrifugal pumps exacerbate this issue. The faster the impeller spins, the greater the pressure differential between the suction and discharge sides, which increases the likelihood of vapor bubble formation. Additionally, centrifugal pumps are often used in applications where they must handle large volumes of fluid at high pressures, making them even more prone to pump cavitations.
Technical Breakdown of Centrifugal Pump Vulnerabilities
Several factors contribute to the vulnerability of cavitation in centrifugal pumps:
Low NPSH (Net Positive Suction Head)
Net Positive Suction Head (NPSH) is a critical parameter that determines whether pump cavitations will occur. NPSH refers to the margin between the pressure at the pump’s suction and the vapor pressure of the fluid. If the NPSH is too low, vapor bubbles will form. Centrifugal pumps, especially when operating at high speeds, can experience low NPSH conditions, which makes them susceptible to pump cavitations.
High Rotational Speeds
As mentioned earlier, the faster the impeller spins, the more likely pump cavitations will occur. The high-speed rotation of centrifugal pumps creates pressure differentials within the pump, leading to vapor bubble formation on the suction side. Once these bubbles collapse, they can cause significant damage to the impeller and other components in cavitated pumps.
Flow Rate Variability
Centrifugal pumps often operate in systems where flow rates vary based on process conditions. When the flow rate drops below the optimal range, the pump may experience a sharp drop in suction pressure, leading to pump cavitations. Conversely, if the flow rate is too high, it can cause turbulent conditions within the pump, also increasing the risk of pump cavitations.
Handling Fluids with Low Vapor Pressure
Centrifugal pumps are frequently used to move fluids with low vapor pressures, such as water, chemicals, and solvents. These fluids are more prone to pump cavitations because their vapor pressures are easily reached under low-pressure conditions within the pump.

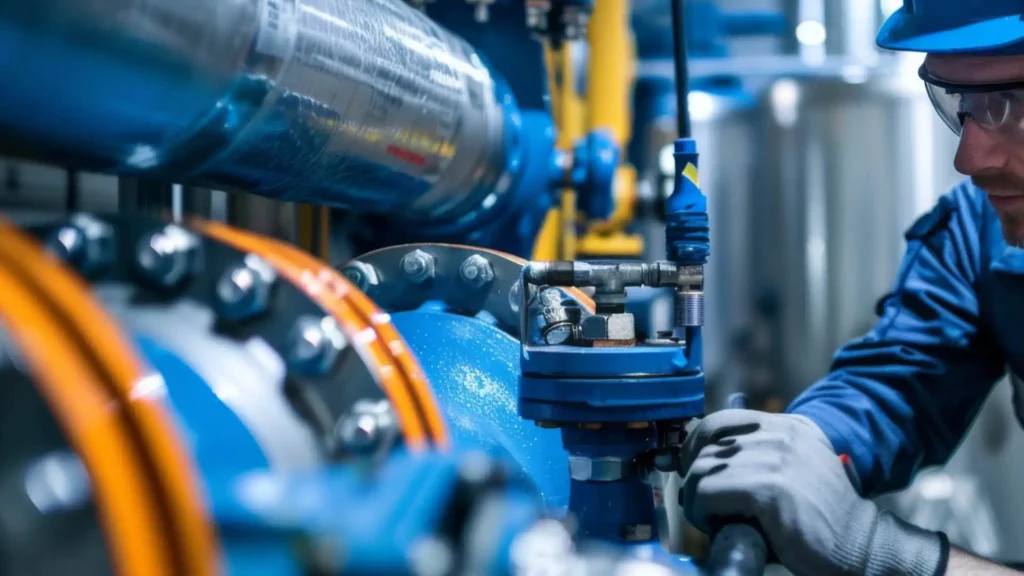

How to Fix a Cavitated Pump
Once pump cavitations have occurred, it’s essential to address the issue as quickly as possible to prevent further damage and restore the pump’s performance. Depending on the severity of the cavitation, operators can take several steps to repair or replace damaged components.
Repairing Minor Cavitation Damage
In cases where pump cavitations are caught early, the damage may be limited to surface pitting on the impeller or other components. In these situations, minor repairs can restore the pump’s performance. Common repair techniques include:
Grinding and Polishing the Impeller
If pump cavitations have caused pitting or roughness on the impeller blades, grinding or polishing can smooth the surface and restore the impeller’s aerodynamic efficiency. This process removes the damaged material and helps improve fluid flow through cavitated pumps.
Replacing Worn Seals
Cavitation in centrifugal pumps can cause premature wear of mechanical seals, leading to leaks and reduced pressure. Replacing these seals can restore the pump’s ability to maintain a consistent pressure differential and prevent fluid leaks.
Coating Pump Components
Applying protective coatings to the impeller, casing, and other components can help mitigate the effects of cavitation in centrifugal pumps. These coatings are designed to resist erosion and wear, extending the life of the pump and preventing further damage from pump cavitations.
When Replacement is Necessary
In more severe pump cavitations, where the damage extends beyond surface pitting, the impeller or other critical components may need to be replaced. If cavitation in centrifugal pumps has caused extensive wear or cracking of the pump casing, a complete replacement of the affected components may be required to restore the pump’s performance.
In some cases, the entire pump may need to be replaced if pump cavitations have caused widespread damage to multiple components. While this may seem like an expensive solution, replacing cavitated pumps can be more cost-effective in the long run than attempting repeated repairs on a severely damaged system.
Cavitated pumps, those that have suffered from significant cavitation damage, are often beyond repair. In these cases, replacement is the best option to restore efficiency and prevent future cavitation. Regular maintenance and monitoring of pump performance are critical to catching pump cavitations early and avoiding costly replacements.
Best Practices to Prevent Cavitation in Pumps
Preventing pump cavitations requires a proactive approach, combining proper system design, regular maintenance, and operational best practices. By following these guidelines, operators can minimize the risk of pump cavitations and extend the life of their pumps.
Maintain Proper Flow Rates and Suction Conditions
One of the most effective ways to prevent cavitation in centrifugal pumps is to ensure that they are operating within their designated flow rate range. When the flow rate drops too low, the pressure at the suction side of the pump may fall below the fluid’s vapor pressure, causing pump cavitations. Conversely, excessively high flow rates can create turbulent conditions that also increase the risk of pump cavitations.
Maintaining consistent suction conditions is equally important. Operators should regularly monitor the suction pressure to ensure it remains above the fluid’s vapor pressure. Installing pressure gauges and flow meters at critical points in the system can help operators detect any deviations from optimal conditions and take corrective action to prevent pump cavitations.
Proper Pump Alignment and Installation
Improper pump alignment can exacerbate the effects of pump cavitations by creating pressure imbalances and increasing vibrations. Regularly checking and correcting the alignment of the pump and its motor or drive system can help reduce the risk of pump cavitations and ensure smooth operation.
Additionally, the pump should be installed according to the manufacturer’s guidelines, ensuring that the suction lines are properly sized and free of obstructions that could cause pressure drops, leading to pump cavitations.
Monitor Net Positive Suction Head (NPSH)
Net Positive Suction Head (NPSH) is a critical parameter for preventing pump cavitations. Ensuring that the available NPSH (NPSHa) is greater than the required NPSH (NPSHr) is essential for avoiding vapor bubble formation. Operators should regularly calculate the NPSHa and compare it to the pump’s NPSHr to ensure there is an adequate margin to avoid pump cavitations.
Use High-Quality Materials and Wear-Resistant Coatings
Pump materials play a crucial role in resisting the damaging effects of pump cavitations. Using pumps made from high-quality materials, such as stainless steel or corrosion-resistant alloys, can help mitigate the wear caused by cavitation in centrifugal pumps. Additionally, applying wear-resistant coatings to the impeller, casing, and other components can extend the life of the pump and reduce the impact of pump cavitations.
The Role of EDDY Pumps in Preventing Cavitation
How EDDY Pumps’ Innovative Designs Reduce Cavitation
EDDY Pumps are specifically designed to minimize the risk of pump cavitations, making them a superior choice for industrial applications where pump cavitations are a concern. Unlike traditional centrifugal pumps, EDDY Pumps utilize a unique vortex flow design that reduces pressure differentials within the pump, thereby minimizing the likelihood of cavitation in centrifugal pumps.
This innovative design allows EDDY Pumps to handle fluids with high levels of solids and viscous materials, which are often more prone to cavitation in centrifugal pumps. The vortex created by the EDDY Pump rotor allows fluids to move through the pump without being exposed to high-pressure zones, significantly reducing the formation of vapor bubbles.
Key Features of EDDY Pumps That Combat Cavitation
EDDY Pumps’ patented rotor design generates a powerful vortex that allows the pump to move fluids without exposing them to the intense pressure differentials seen in traditional cavitation in centrifugal pumps. This design not only reduces pump cavitations but also extends the life of the pump’s components by preventing erosion and wear caused by vapor bubble collapse.
Additionally, EDDY Pumps are constructed from durable, wear-resistant materials that can withstand the harsh conditions often associated with pump cavitations. Whether handling abrasive slurries, corrosive chemicals, or high-viscosity fluids, EDDY Pumps are built to resist the damaging effects of pump cavitations.
EDDY Pumps also operate efficiently at lower flow rates, which helps minimize the risk of pump cavitations in systems with variable flow rates. By maintaining consistent suction conditions and reducing pressure fluctuations, EDDY Pumps provide a reliable solution for industries that face frequent pump cavitations.

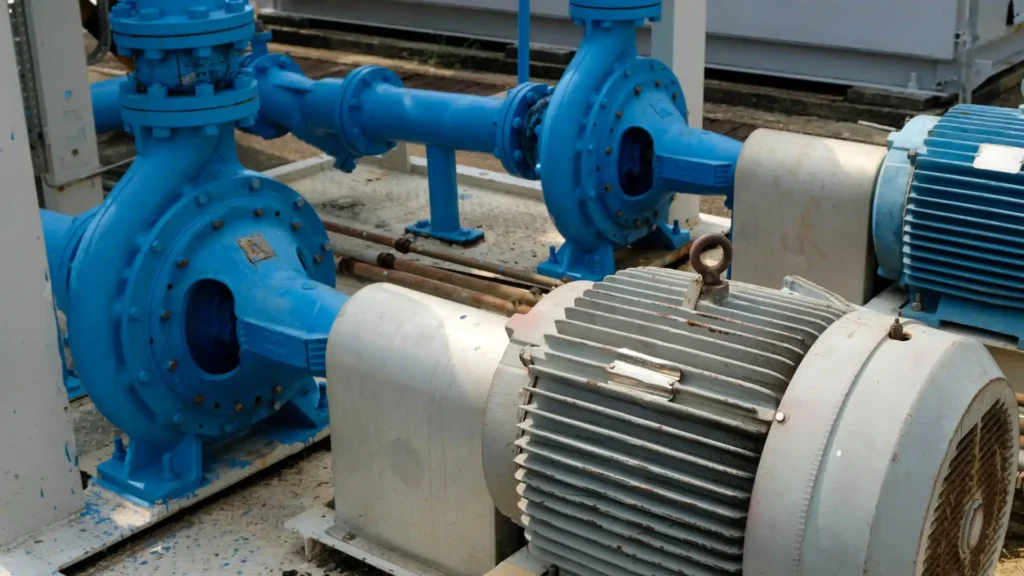

Conclusion
Pump cavitations are a hidden danger that can severely impact the performance and longevity of industrial pumps. Left unchecked, pump cavitations can cause extensive damage to critical pump components, leading to costly repairs, reduced efficiency, and unplanned downtime. However, by understanding the causes of cavitation in pumps, recognizing its early signs, and implementing best practices to prevent it, operators can protect their systems from this destructive phenomenon.
EDDY Pumps, with their innovative design and focus on cavitation prevention, offer a reliable solution for industries looking to combat the effects of cavitation in centrifugal pumps. By investing in pumps that are built to handle challenging conditions and resist the wear caused by pump cavitations, operators can reduce maintenance costs, improve efficiency, and extend the life of their equipment.
If your operation is struggling with pump cavitations, or if you’re looking for pumps designed to minimize cavitation risks, consult with the experts at EDDY Pump. Their team can provide tailored solutions that will help you overcome the hidden dangers of pump cavitations and ensure your system operates at peak performance for years to come.
