Cutterhead Options
Our standard cutterheads usually rotate between 15 to 60 rpm and are equipped with specially designed replaceable cutter teeth around the attachment. The rotating cutterhead breaks up consolidated material such as compacted sand, mud, and sludge which helps feed material into the pump.
Compatible with:
-
- This attachment works well in conjunction with the Liner-Safe Wheels or the Water Jetting Ring.
The clay cutterhead attachment is ideal for pumping extremely thick heavy clay at a continuous production rate. As the blades rotate, the clay is effectively agitated and fed into the dredge pump.
Compatible with:
-
- Excavator Boom Deployed
The self-cleaning head attachment is ideal for effectively pumping highly viscous mud or sludge at a continuous production rate. As the basket rotates, a self-cleaning comb device clears the mud or other debris, allowing for less blockage of the intake. This unit works well with a jetting ring for mud and material agitation for optimal production rates.
Compatible with:
- Excavator Boom Deployed
- Use Self-Cleaning or Swap out for Standard Cutterhead
Drag to rotate
Compatible with:
- Excavator Boom Deployed
- Cable Hung Deployed
Auger Suction Dredges are used in many dredging applications where there is a liner such as poly, clay, concrete, and other types of plastic liners. The Auger Suction Dredge can be equipped with wheels to provide liner-safe dredging while still being able to break up consolidated material.
Compatible with:
- Standard Cutterhead OR
- Self-Cleaning Head
Pump & Dredging
EDDY Pump Deployment Options

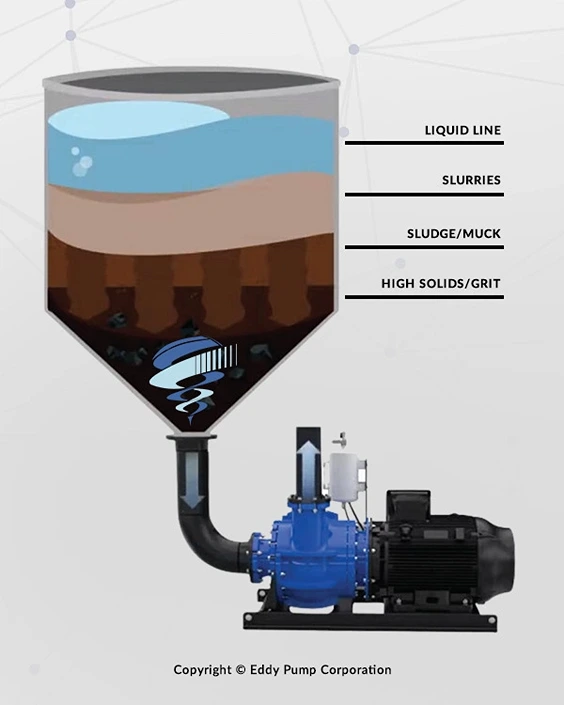

Flooded Suction Pumps
The fluid to be pumped with flooded suction pumps is positioned above the pump. Flooded suction pumps typically require less priming effort because gravity assists in keeping the pump primed. With the pump positioned below, gravity can feed the fluid into the pump’s suction and keep the pump primed.
Read More ↗

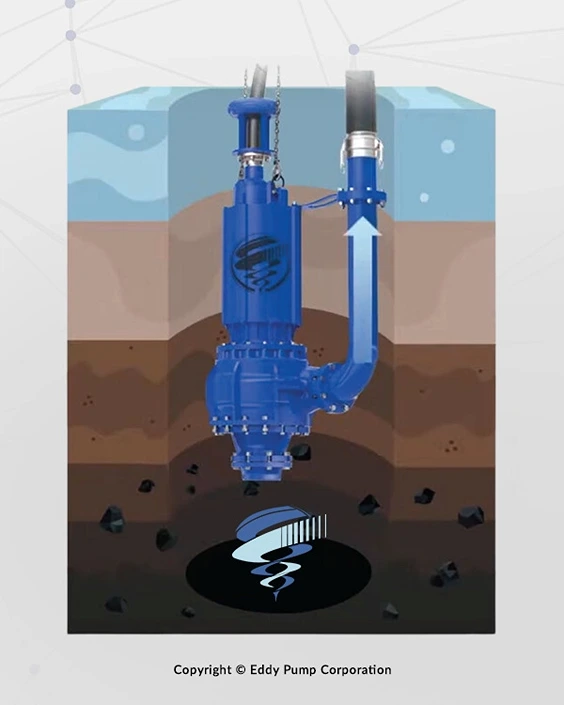

Submersible Pumps
Pumps that are completely submerged in the liquid are called submersible pumps. By being submerged in the fluid to be pumped, there is no need for priming the pump.
Read More ↗

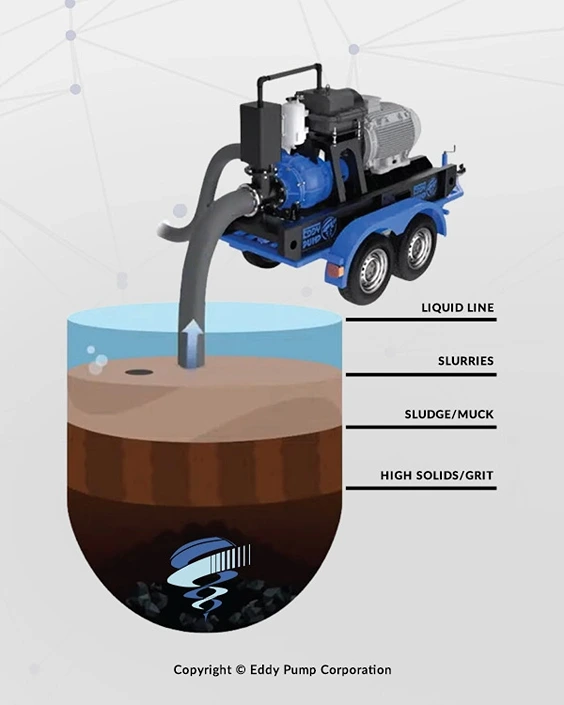

Self-Priming Pumps
With a self-priming unit, the pump and power unit are not submerged. The suction hose goes into the slurry and the unit acts like a super-sized wet dry vacuum. Can be trailer mounted for added mobility.
Read More ↗
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.

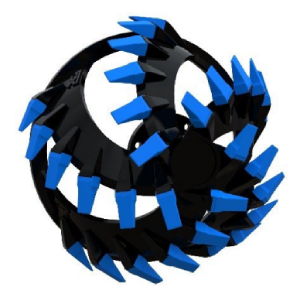

Standard Cutterhead
Our standard cutterheads usually rotate between 15 to 60 rpm and are equipped with specially designed replaceable cutter teeth around the attachment. The rotating cutterhead breaks up consolidated material such as compacted sand, mud, and sludge which helps feed material into the pump.
Compatible with:
- This attachment works well in conjunction with the Liner-Safe Wheels or the Water Jetting Ring.
Clay Cutterhead
The clay cutterhead attachment is ideal for pumping extremely thick heavy clay at a continuous production rate. As the blades rotate, the clay is effectively agitated and fed into the dredge pump.
Compatible with:
- Excavator Boom Deployed
Drag to rotate
Self-Cleaning Cutterhead
The self-cleaning head attachment is ideal for effectively pumping highly viscous mud or sludge at a continuous production rate. As the basket rotates, a self-cleaning comb device clears the mud or other debris, allowing for less blockage of the intake. This unit works well with a jetting ring for mud and material agitation for optimal production rates.
Compatible with:
- Excavator Boom Deployed
- Use Self-Cleaning or Swap out for Standard Cutterhead
Water Jetting Ring
Break up material and inject water at high pressure to break up and liquify highly condensed solids. The high-pressure jetting ring works in conjunction with the standard cutterhead or self-cleaning head. This unit can be deployed via an excavator boom, cable hung from a crane or floating A-frame.
Compatible with:
- Excavator Boom Deployed
- Cable Hung Deployed
Auger Head
Auger Suction Dredges are used in many dredging applications where there is a liner such as poly, clay, concrete, and other types of plastic liners. The Auger Suction Dredge can be equipped with wheels to provide liner-safe dredging while still being able to break up consolidated material.
Liner-safe Wheels
The liner-safe wheels allow for dredging operations in areas with poly or concrete-lined pits, canals, or other sensitive surfaces. This unit works in conjunction with a standard cutterhead or open suction mouth.
Compatible with:
- Standard Cutterhead OR
- Self-Cleaning Head
EDDY Pump Equipment Rentals
EDDY Pump offers sales, turnkey rental services, and solutions to clients worldwide. We have over 30 years experience completing the toughest dredging projects around the world. Many of our dredge pump and excavator solutions are custom built to fit the needs of our clients.
Why Rent?
- Great for short term projects
- Rent to own program
- Try out equipment before purchase
- Less upfront cost
Sediment Agitation Solutions
Interested in Rentals?
We are one of the few companies who manufactures both our pumps and dredging equipment to ensure optimal support.
HD (Heavy Duty) Slurry Pumps / Dredge Equipment
