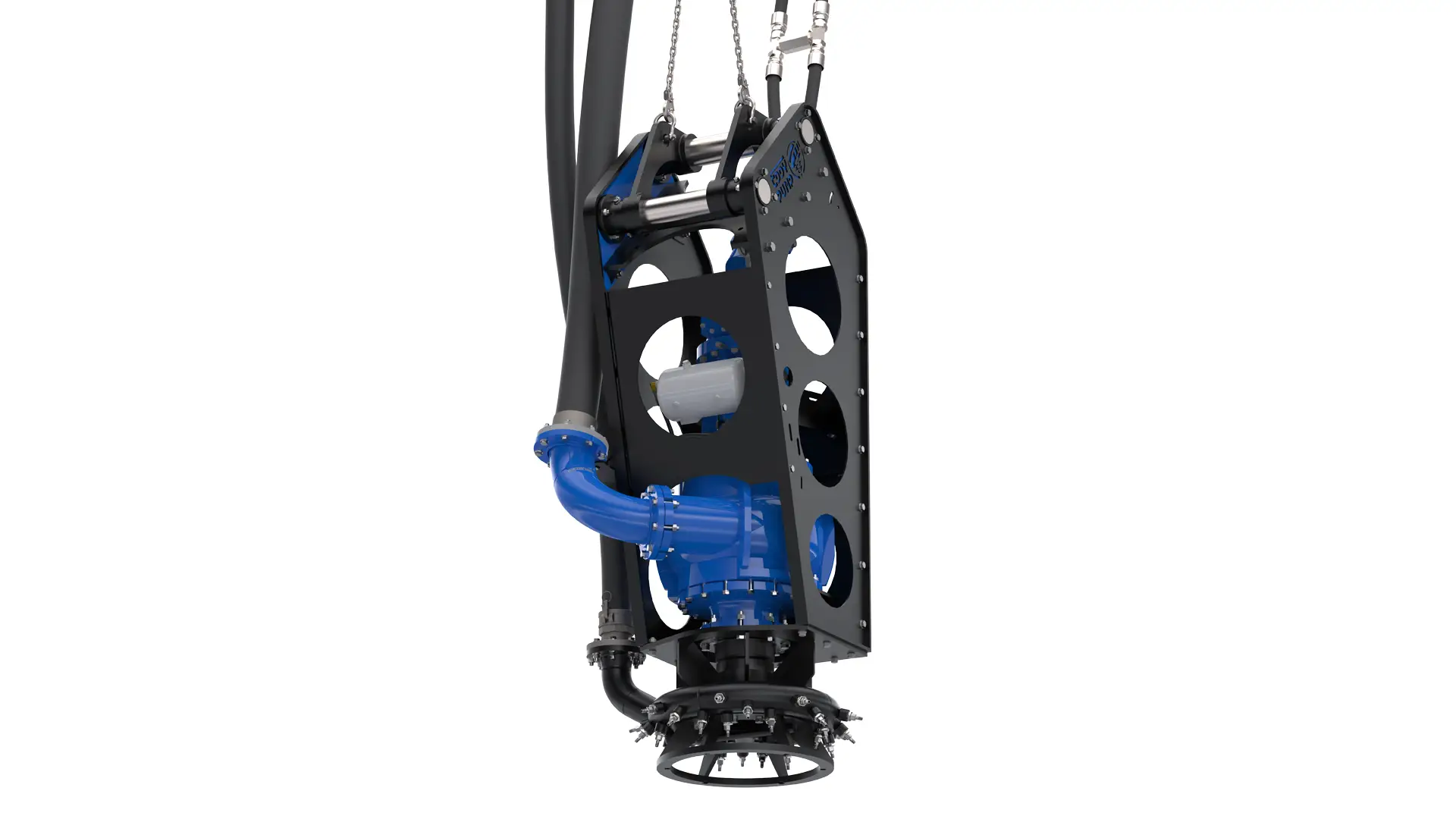

Electric Cable Deployed Pump With Water Jetting Agitator – 6 Inch
The 6-Inch JPE 6000 Electric Cable Deployed Dredge Pump is a heavy-duty, non-clog slurry pump built with EDDY Pump’s patented technology to handle abrasive, viscous, and high-solids materials. Delivering up to 2,000 GPM at dredging depths of 100 feet, it efficiently pumps solids up to 5 inches and concentrations of 40–70% by weight. Featuring a sealed barrier fluid system for dry-run capability and an integrated jetting ring agitator for maximum production, this electric-powered unit ensures reliable, high-performance operation for mining, barge unloading, and deepwater dredging.

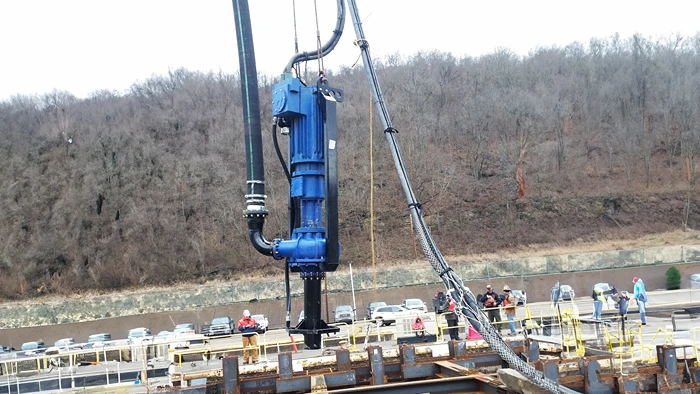

Key Features / Advantages
- High Solids Handling – Pumps up to 5-inch solids and manages 40–70% solids by weight without clogging.
- Superior Production – Achieves flows of 450–2,000 GPM and dredging depths up to 100 feet.
- Patented EDDY Pump Technology – Outperforms centrifugal, vortex, and positive displacement pumps in tough applications.
- Durable Construction – Designed for abrasive, viscous, and high-specific-gravity materials like slurry, tailings, and drilling mud.
- Dry-Run Capability – A double-seal system with a sealed barrier fluid tank enables operation in challenging conditions.
- Integrated Jetting Ring Agitator – Enhances material agitation and ensures maximum production efficiency.
- Versatile Applications – Suitable for mining, barge unloading, deepwater dredging, sand & aggregate, and oil & gas operations.
- Optional Enhancements – Compatible with flow meters, discharge monitoring, liner-safe attachments, and recirculation systems for optimized performance.
Gallery
Electric Cable Deployed Pump With Water Jetting Agitator – 6 Inch
Technical Specifications
Performance Specifications
- Flow Capacity: 450 – 2,000 GPM (150 – 200 cubic yards per hour)
- Head Range: Up to 200 ft (61 m)
- Maximum Speed: 1,800 RPM
- Discharge Size: 6 in (152 mm)
- Suction Size: 8 in (203 mm)
- Solids Handling: Up to 5 in (127 mm) diameter solids
- Percent Solids by Weight: 40% – 70%
- Dredging Depth: Up to 100 ft (30 m)
Physical Specifications
- Overall Weight: 4,800 lbs (2,177 kg)
- Overall Length: 133 in (2.87 m)
- Overall Height: 37 in (0.94 m)
- Overall Width (discharge removed): 28 in (0.70 m)
- Overall Width (with discharge mounted): 38 in (0.97 m)
- Carrier Weight Range: 20 – 45 tons (18,000 – 40,000 kg)
- Standard Jetting Ring Diameter: 36 in (0.91 m)
- Seal System: Double seal with sealed barrier fluid tank (allows dry run)
Required Equipment
- Jetting Ring Agitator
- Water Pump: 400 – 1,000 GPM @ 150 PSI max
- 6-inch material handling discharge hose
Recommended Accessories
- Doppler Wireless Slurry Flow Meter (for stable, plug-free pipeline flow)
- Discharge Line Pressure Gauge (0 – 150 PSI)
- “Quick Prime” Valve (requires 24V air system)
- Pivot-Mounted Discharge Hose Carrier (adaptable to most machines)
- Liner-Safe Roller Attachment and Self-Cleaning Mud Guard compatibility
- Recirculation System for pre-mixing applications (requires 24V air system)
Jetting Ring Specifications
| Jetting Ring Size | Number of Jets | Flow per Jet (GPM) | Total Flow (GPM) | Velocity (ft/sec) | Inlet Flange Size | Inlet Flange Bolts | Part Number |
| Small Ring | 16 | 47.5 | 760 | 108 | 3″ | 4 Bolt, 150# Class | EXF4K 16 16025 |
| Large Ring | 28 | 27 | 760 | 62 | 4″ | 8 Bolt, 150# Class | EXF6K/8K/10K 28 12882 |
EDDY Pump – 6 Inch HD 6000 Heavy Duty Slurry Pump – Pump Curve
PUMP CURVE
A pump curve outlines how flow and head change across operating conditions, allowing operators to match the pump to system requirements accurately. For the 6 Inch JPE 6000 Electric Cable Deployed Pump, choosing the proper curve helps ensure stable performance at depth, efficient handling of abrasive high solids slurry, and consistent production supported by the integrated jetting ring agitator.
Technical Drawings & Resources
EDDY Pump 16-Jet Ring Head Specs Sheet – 3″ Inlet
EDDY Pump 28-Jet Ring Head Specs Sheet – 4″ Inlet
Electric Cable-Deployed Jetting Ring Pump
Comparison Table
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr) | Max Speed (RPM) | Percent Solids | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight | Motor HP |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JPE 4000 | 4 inch | 250–1200 | 200 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,300 | 20–45 tons | 100 |
| JPE 6000 | 6 inch | 450–2000 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons | 150 |
| JPE 8000 | 8 inch | 800–4000 | 200 | 7 | 250–300 | 1800 | 40–70% | 100 | 6,800 | 60–94 tons | 450 |
| JPE 10000 | 10 inch | 1200–5000 | 200 | 9 | 300–350 | 1800 | 40–70% | 100 | 7,500 | 60–94 tons | 450 |
| JPE 12000 | 12 inch | 1800–7000 | 200 | 11 | 500–600 | 1800 | 40–70% | 100 | 9,500 | 30+ tons | 700 |
Industries Served
Mining
The JPE 6000 is engineered to withstand the harsh demands of mining, where abrasive slurries, tailings, and overburden must be continuously removed. Its ability to pump up to 70% solids by weight ensures higher material recovery, reduced water dependency, and fewer interruptions due to clogging or equipment wear.
Sand & Aggregate
In sand pits and aggregate facilities, this pump excels at dredging, material transfer, and slurry transport. Its high flow rates and solids-handling capacity allow operators to recover more material with fewer passes, lowering overall operating costs while extending the service life of pipelines and processing equipment.
Barge Unloading
When unloading bulk solids, sediments, or high-viscosity slurries from barges, the JPE 6000 delivers consistent production without clogging. The integrated jetting ring agitator loosens compacted materials, speeding up offloading cycles and enabling operators to maximize barge turnaround efficiency in port and river operations.
Oil & Gas
The pump is highly effective in oilfields and offshore environments, where it is used to process drilling mud, drill cuttings, and other high-density or corrosive fluids. Its electric drive and rugged design make it safer and more reliable for continuous operations in remote or environmentally sensitive locations.
Power Generation (Fly Ash & Coal Ash)
Coal-fired power plants and other generation facilities benefit from the JPE 6000’s ability to handle fine, abrasive ash efficiently. Removing fly ash and bottom ash from settling ponds and storage areas ensures compliance with environmental regulations while preventing buildup that can impact plant safety and productivity.
Municipal & Environmental
Municipalities use this pump for dredging lagoons, maintaining reservoirs, and processing wastewater slurries. Its non-clogging design enables it to handle rags, sludge, and grit commonly found in wastewater streams, allowing operators to extend the life of their treatment infrastructure while meeting environmental discharge standards.
Marine Construction
With a dredging depth capability of up to 100 feet, the JPE 6000 is well-suited for harbor deepening, coastal restoration, and underwater excavation projects. Its ability to transport large volumes of solids with minimal turbidity makes it a dependable choice for environmentally sensitive marine works and large-scale construction operations.
Industrial Processing
Heavy industries, such as steel, chemicals, pulp and paper, and cement, rely on the JPE 6000 to transport abrasive byproducts and slurry waste. The pump’s robust construction minimizes downtime caused by erosion or clogging, providing a reliable solution for moving challenging materials through complex processing systems.
Oilfield Drilling Mud Management
Case Study
Challenge
An oilfield operator encountered significant challenges in managing heavy drilling muds and cuttings during extended drilling campaigns. Conventional pumps frequently clog or wear out due to the high viscosity of the mud, abrasive solids, and corrosive properties of the mud. Downtime for repairs and equipment replacement delayed operations and drove up project costs.
Solution
The operator deployed the EDDY Pump JPE 6000 Electric Cable Deployed Dredge Pump, which is specifically designed to handle abrasive, high-solids slurries. Its non-clog rotor design efficiently pumped drilling mud with solids up to 5 inches in diameter, while maintaining flow rates of up to 2,000 GPM. The sealed barrier fluid system enabled reliable operation even in dry-run conditions, and the electric power configuration reduced on-site emissions and improved safety.
Result
The oilfield achieved uninterrupted drilling mud management, resulting in a 20% reduction in downtime. Equipment wear and replacement frequency decreased significantly, resulting in reduced operational costs and extended project timelines. The JPE 6000 ensured continuous removal of drilling byproducts, allowing drilling crews to maintain productivity and meet tight schedules with improved efficiency.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Talk To About Any Question?
Frequently Asked Questions
What makes the electric submersible dredge pump different from conventional centrifugal pumps?
The 6-inch JPE 6000 electric pump uses EDDY Pump’s patented non-clog rotor technology, which enables it to pump highly viscous slurries, abrasive materials, and high concentrations of solids without frequent clogging or excessive wear. This sets it apart from conventional centrifugal pumps, which often fail under such conditions.
What is the maximum flow capacity of the 6-inch JPE 6000 electric cable deployed pump?
The 6-inch electric agitator pump delivers between 450 and 2,000 GPM (150–200 cubic yards per hour), depending on material type and operating conditions. Its design allows consistent performance even in high-solids environments where conventional pumps lose efficiency.
How deep can the cable-deployed electric dredging pump dredge?
It can operate effectively at dredging depths of up to 100 feet, making it ideal for deepwater applications such as harbor deepening, reservoir dredging, and offshore projects.
What size solids can the 6-inch electric agitator pump handle?
The electric submersible pump with jetting system is designed to handle solids up to 5 inches in diameter while transporting slurries containing 40–70% solids by weight. This makes it highly reliable for demanding applications, such as mining tailings, coal ash, and oilfield cuttings.
Does the electric dredge pump with jetting agitator require special maintenance?
The 6-inch JPE 6000 electric cable deployed pump is engineered with a double-seal system and a sealed barrier fluid tank, allowing for dry-run capability and reduced wear. Routine inspection of seals, hoses, and the jetting ring is recommended; however, overall maintenance demands are lower compared to those of conventional pumps.
What equipment is required to operate the 6-inch electric agitator pump?
Core requirements include a jetting ring agitator, a water pump delivering 400–1,000 GPM at 150 PSI, and a 6-inch discharge hose for material handling. Depending on the application, additional accessories may be added to enhance performance.
What optional accessories improve performance?
Operators often use a Doppler wireless slurry flow meter for real-time monitoring, discharge line pressure gauges for system safety, quick prime valves for faster startup, and recirculation systems for pre-mixing applications. These accessories help improve efficiency and ease of operation.
Is the electric submersible pump with jetting system suitable for environmentally sensitive projects?
Yes. The electric drive eliminates diesel emissions, making it ideal for municipal, environmental, and urban projects where noise and emissions must be minimized. Additionally, its precise solids-handling capability reduces turbidity during the dredging process.
Which industries benefit most from the 6-inch JPE 6000 electric pump?
The electric submersible dredge pump serves a wide range of industries, including mining, sand & aggregate, marine construction, power generation (fly ash and coal ash), oil & gas, municipal wastewater, and industrial processing. Its adaptability makes it a versatile solution across multiple sectors.
Can the cable-deployed electric slurry pump be customized for specific applications?
Yes. The 6-inch electric cable deployed dredging pump is available with multiple configurations and optional power packages. EDDY Pump engineers can provide tailored solutions such as liner-safe attachments, self-cleaning mud guards, or alternative jetting ring designs to meet project-specific needs.
