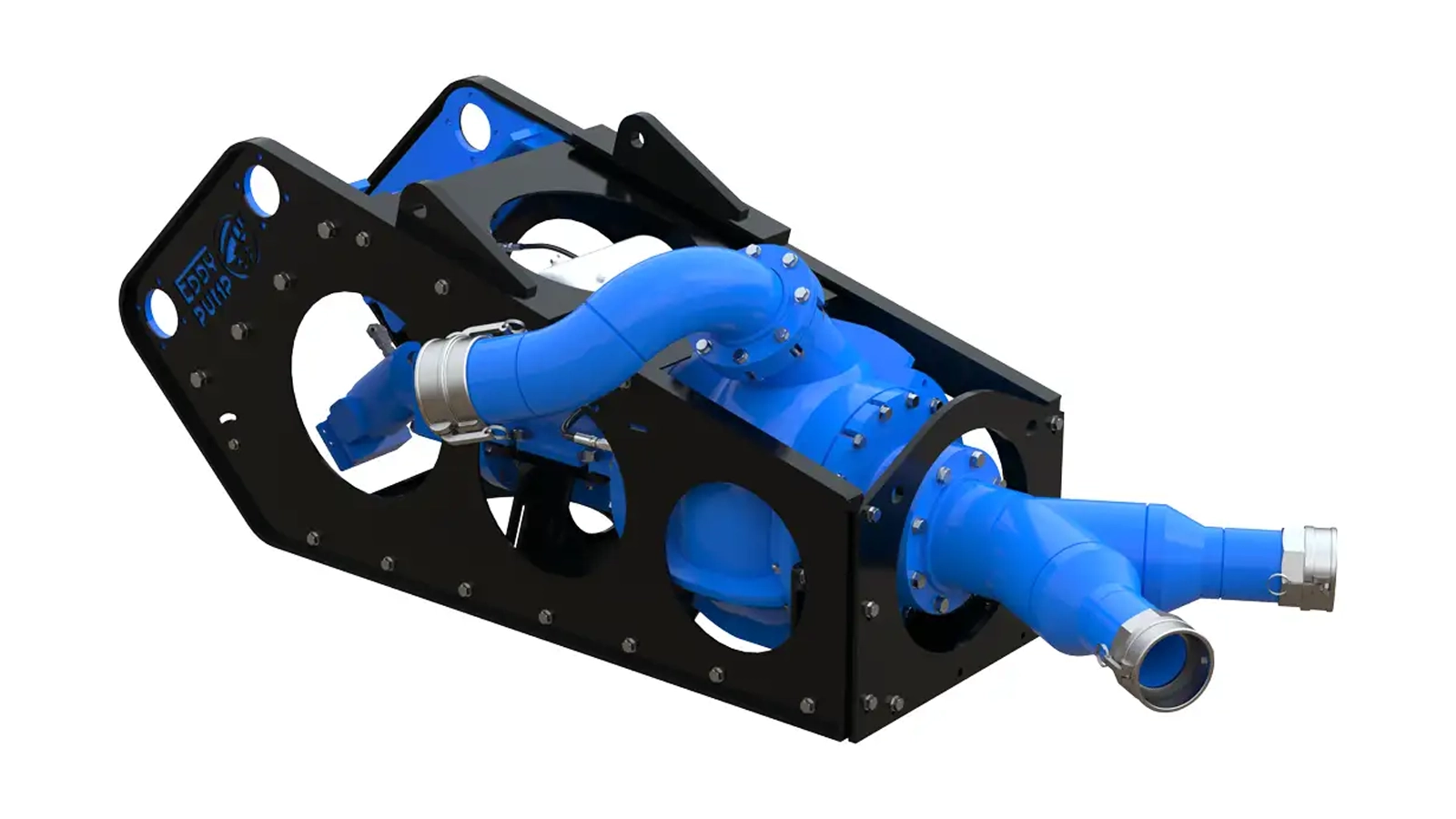

Hydraulic Diver Operated Dredge System – 6 Inch
Built for underwater slurry removal in high-solids dredging environments, the 6-Inch HD 6000 Hydraulic Diver Operated Pump combines diver-controlled operation with high-production pumping capability. The system handles abrasive slurry, sludge, sand, and debris-loaded material while maintaining stable flow in demanding industrial applications. Designed for difficult dredging conditions, the pump enables continuous material transfer in applications where conventional pumping systems frequently plug, lose efficiency, or struggle with high solids concentrations.
2500 GPM Max Flow | Up to 200 ft Head | Solids up to 5 Inches | 150–200 yd³/hr Production
System Advantages
- Non-clog pump design helps maintain continuous slurry flow in heavy solids and debris-loaded dredging conditions.
- Handles solids up to 5 inches, reducing the risk of plugging during the transfer of sludge, sand, and abrasive materials.
- Supports solids concentrations up to 40–70%, making the system suitable for high-density slurry pumping applications.
- Diver-operated configuration allows operators to perform controlled dredging in submerged, confined, and difficult-access environments.
- Hydraulic-powered operation delivers reliable underwater pumping performance in demanding industrial and marine conditions.
- Flow rates up to 2500 GPM support high-production dredging and large-volume material transfer operations.
- Production rates reaching 150–200 yd³/hr help improve dredging efficiency and reduce project completion time.
- Maintains stable pipeline flow during abrasive slurry transfer and long discharge operations.
- Suitable for sludge removal, industrial dewatering, pond dredging, sediment removal, and underwater excavation support.
- Compatible with Doppler slurry flow monitoring systems for production tracking and pipeline flow optimization.
- Designed for abrasive and high-wear slurry environments where conventional pumps may experience excessive maintenance or clogging.
- Supports underwater dredging operations in locations where larger conventional dredging equipment may be difficult to position or operate.
6 Inch Hydraulic Diver Operated Dredge System Gallery
Technical Specifications
Performance Specifications
- Flow Range: 450 – 2500 GPM
- Head Range: Up to 200 ft
- Solids Handling: Up to 5 inches
- Percent Solids by Weight: 40–70%
- Production Rate: 150 – 200 yd³/hr
Physical Specifications
- Discharge Size: 6 inches
- Suction Size: 8 inches
Recommended Sensors
- Doppler Wireless Slurry Flow meter to maintain stable plug-free pipeline flow and maximize production
Required Equipment to Operate

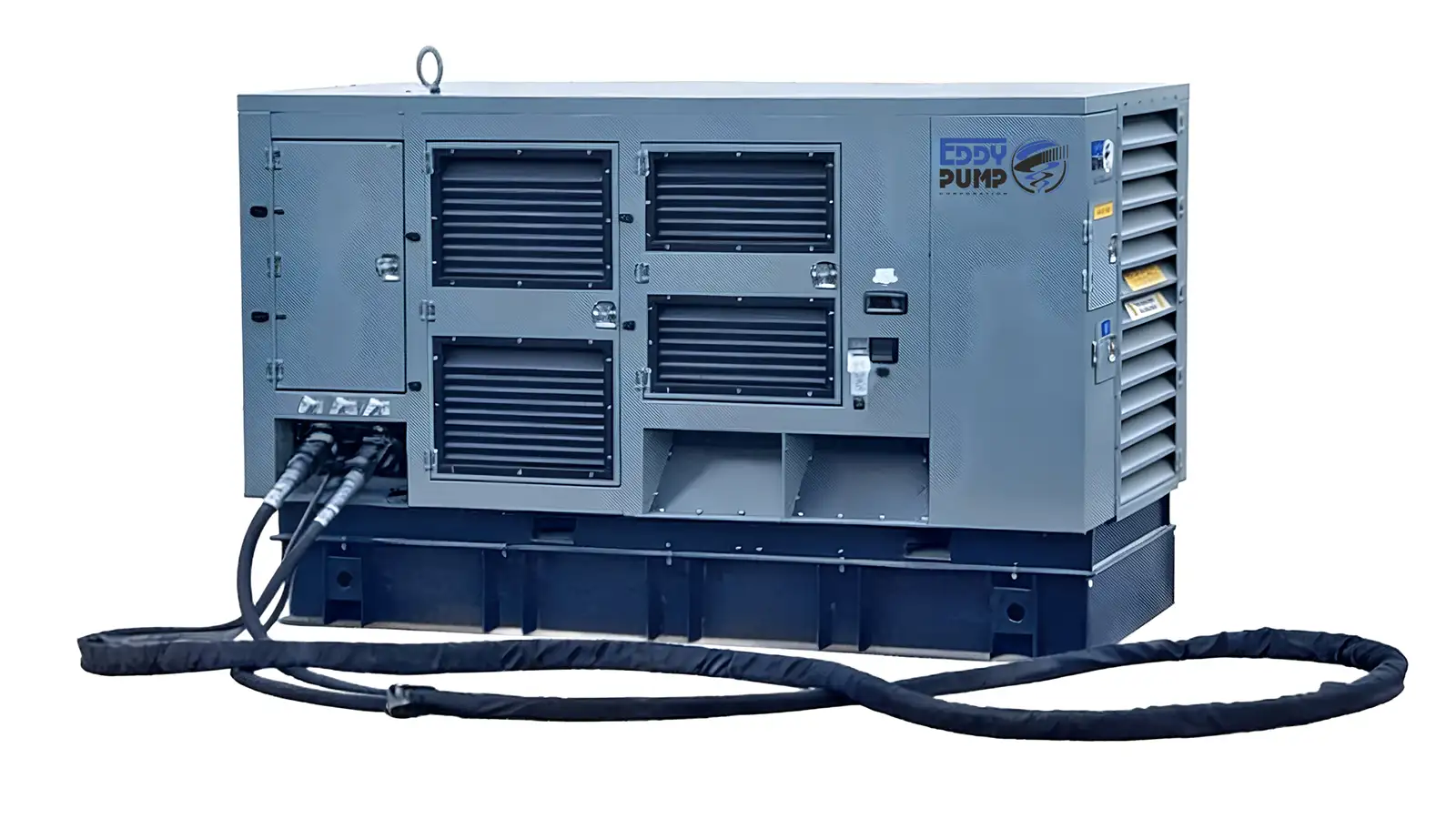

- Hydraulic Models: Crossover check valve, Hydraulic Hoses, and Hydraulic Power Unit capable of 35 GPM at 5000 PSI (80cc motor)
- Material Handling Discharge Hose: 6 inches

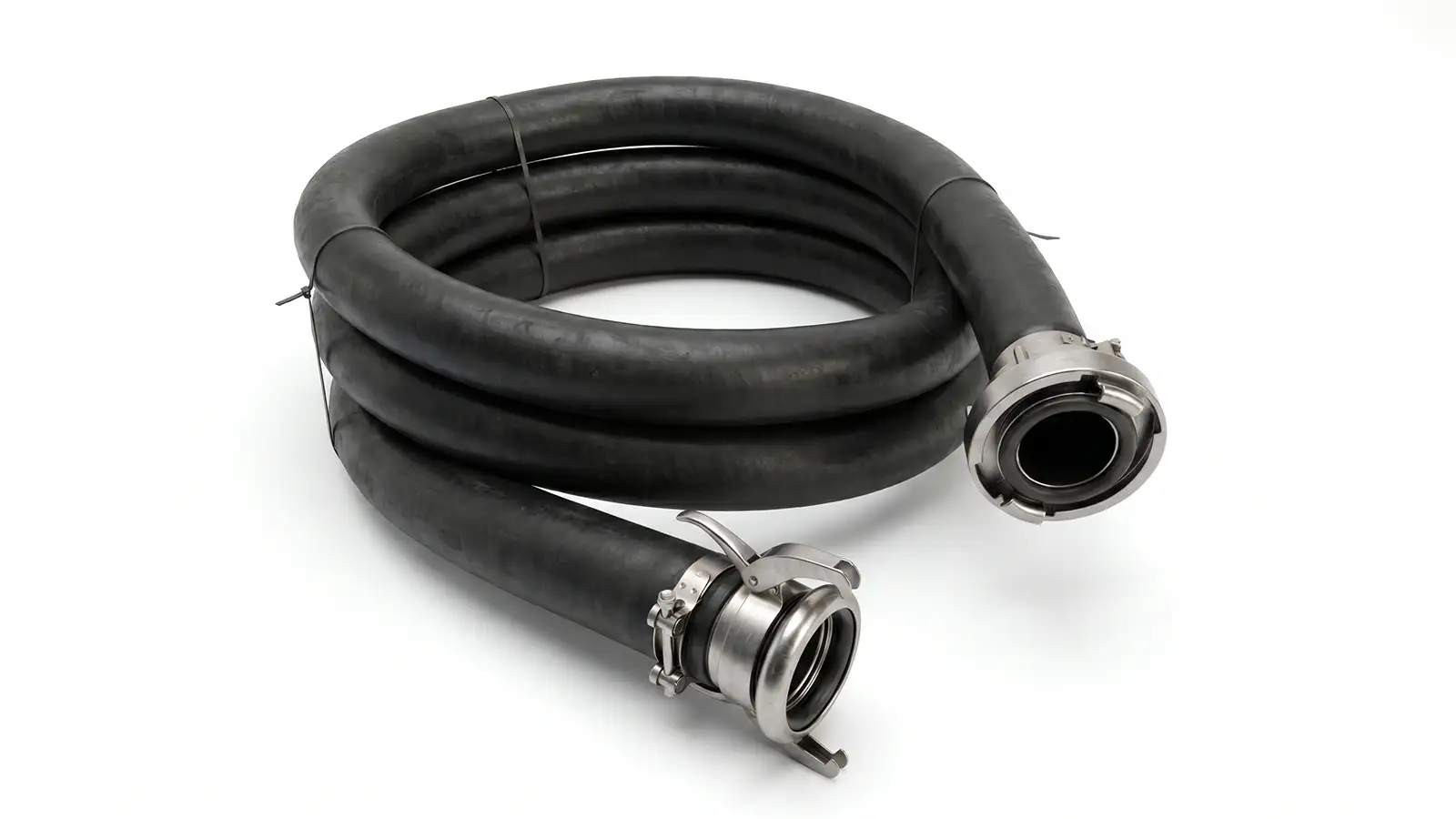

- Material Handling Suction Hose: 5 inches
*All specifications mentioned will vary depending on the model
PUMP CURVE
A pump curve shows how the 6-Inch HD 6000 Hydraulic Diver Operated Pump performs across different flow and head conditions, helping operators evaluate system capability for underwater dredging applications. Actual slurry performance will vary based on material density, solids concentration, particle size, discharge distance, and pipeline configuration. Because high-solids dredging conditions differ significantly from water-based testing, custom pump curve evaluation is recommended for accurate system matching and production planning.
Hydraulic Diver Operated Dredge Model Comparison
| Specification | DHP-4000 (4-Inch) | DHP-6000 (6-Inch) |
|---|---|---|
| Model | 4-Inch HD 4000 Hydraulic Diver Operated | 6-Inch HD 6000 Hydraulic Diver Operated |
| Overall Weight | 1,700 lbs (771 kg) | 3,000 lbs (1,360 kg) |
| Flow Capacity (Min–Max) | 250 – 1,200 GPM | 450 – 2,500 GPM |
| Head Range | Up to 160 ft | Up to 200 ft |
| Discharge Size | 4 in (100 mm) | 6 in (150 mm) |
| Suction Size | 6 in (150 mm) | 8 in (200 mm) |
| Solids Handling | Up to 3 in (76 mm) | Up to 5 in (127 mm) |
| Percent Solids | 40–70% | 40–70% |
| Production Rate | 75–150 cubic yards per hour | 150–200 cubic yards per hour |
| Hydraulic Flow Requirement | 35 GPM | 35 GPM |
| Operating Pressure | 5,000 PSI | 5,000 PSI |
| Hydraulic Motor Size | 80cc | 80cc |
| Required Equipment | Crossover check valve, hydraulic hoses, hydraulic power unit, 4" suction/discharge hoses | Crossover check valve, hydraulic hoses, hydraulic power unit, 6" discharge & 5" suction hoses |
| Recommended Sensors | Doppler wireless slurry flow meter | Doppler wireless slurry flow meter |
Typical Industrial Applications
Industrial Sludge Removal
The 6-Inch Hydraulic Diver Operated Pump is used for removing settled sludge, slurry, and waste solids from industrial ponds, process tanks, lagoons, and containment areas. The diver-operated configuration allows controlled material removal in submerged environments where conventional equipment access may be limited.
Mining and Tailings Pond Dredging
Mining operations use the system for dredging high-solids slurry, tailings, sediment, and abrasive material from ponds, pits, and containment areas. Its ability to handle large solids and dense slurry supports continuous pumping in demanding mining conditions.
Marine and Underwater Dredging
The pump supports underwater dredging operations in harbors, canals, marinas, intake structures, and submerged excavation areas. Diver-controlled operation provides precise dredging capability in locations where maneuverability and controlled material removal are critical.
Industrial Dewatering Operations
The system is used for dewatering applications involving heavy sediment, slurry, and solids-laden water that may overwhelm standard dewatering pumps. The non-clog pump design helps maintain stable operation during abrasive and debris-loaded pumping conditions.
Sand, Sediment, and Slurry Transfer
The pump is suitable for transferring sand, silt, sludge, and abrasive slurry in dredging and material transport applications. High-solids handling capability allows operators to move dense material efficiently while reducing clogging risk.
Power Plant and Utility Basin Cleaning
Power plants and utility facilities use diver-operated dredging systems for removing accumulated sediment, ash slurry, and debris from cooling ponds, intake basins, and containment structures. The compact underwater configuration supports dredging in restricted-access areas without requiring large floating dredges.
Confined Pond Dredging Case Study
The Problem
An industrial processing facility was experiencing severe sludge accumulation inside a confined settling pond used for process water management. The sludge contained abrasive solids with concentrations estimated between 50–60%, creating repeated plugging issues for the facility’s existing pumping system. Material buildup had reduced effective pond capacity by nearly 35%, while unstable bottom conditions and limited access prevented the use of larger conventional dredging equipment. The facility required a controlled dredging solution capable of operating in restricted underwater conditions without shutting down nearby operations.
The Solution
The facility deployed the EDDY Pump 6-Inch HD 6000 Hydraulic Diver Operated Pump to perform targeted underwater sludge removal inside the confined pond. The diver-operated configuration allowed operators to control material removal around tight corners, submerged piping, and structural obstructions while maintaining steady slurry transfer. Operating with production rates averaging approximately 170 yd³/hr, the EDDY Pump system handled abrasive sludge containing solids up to 5 inches without frequent clogging interruptions. A Doppler slurry flow monitoring system was also used to maintain stable pipeline flow during discharge operations.
The Result
Over 4,000 cubic yards of accumulated sludge were removed during the dredging campaign, restoring significant operational capacity to the settling pond. The EDDY Pump system reduced pumping interruptions associated with clogging and maintained continuous slurry transfer throughout the project. The facility completed the dredging operation without deploying large floating dredges or shutting down adjacent processing areas, helping reduce operational disruption and improve long-term sludge management performance.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Talk To About Any Question?
Frequently Asked Questions
What materials can the 6-Inch Hydraulic Diver Operated Pump handle?
The pump is designed for high-solids slurry, sludge, sand, sediment, abrasive material, and debris-loaded industrial pumping applications. It can handle solids up to 5 inches and solids concentrations up to 40–70%, depending on material characteristics and system configuration.
What is the maximum flow rate of the HD 6000 Hydraulic Diver Operated Pump?
The system can deliver flow rates up to 2500 GPM with head capabilities reaching up to 200 feet. Actual performance will vary depending on slurry density, solids concentration, discharge distance, and pipeline conditions.
What type of hydraulic power unit is required?
The pump requires a hydraulic power unit capable of supplying approximately 35 GPM at 5000 PSI with an 80cc motor configuration. Proper hydraulic setup is important for maintaining consistent pumping performance during demanding dredging operations.
What industries commonly use diver operated dredge pumps?
Diver operated dredge pumps are commonly used in mining, industrial processing, marine construction, power generation, wastewater treatment, pond dredging, and industrial dewatering applications where underwater solids removal is required.
Can EDDY Pump provide a custom pump curve for my application?
Yes. EDDY Pump can provide a custom pump curve based on your specific material, solids concentration, pumping distance, and head requirements. This helps engineering teams confirm system suitability before deployment.
What hoses are required for operation?
The standard configuration requires a 6-inch material handling discharge hose and 5-inch material handling suction hoses. Hose selection may vary depending on application requirements, pumping distance, and slurry conditions.
How does the diver-operated configuration benefit dredging operations?
The diver-operated setup allows controlled underwater material removal in confined or difficult-access areas where conventional dredging equipment may be difficult to position. This provides greater precision around submerged structures, pipelines, and restricted work zones.
Is the pump suitable for abrasive slurry applications?
Yes. The system is designed for abrasive and high-wear slurry environments commonly found in dredging, mining, sludge transfer, and sediment removal operations where conventional pumps may experience excessive wear or plugging.
What maintenance is typically required?
Routine maintenance generally includes inspection of wear components, hydraulic connections, hoses, seals, and monitoring system performance during operation. Maintenance frequency depends on slurry abrasiveness, operating hours, and overall application severity.
What information is needed to size or quote a system?
Typical information includes material type, solids concentration, particle size, required flow rate, discharge distance, total dynamic head, available hydraulic power, and site conditions. This information helps determine the appropriate pump configuration and overall system setup.
