Lampiran Pompa Pengerukan Excavator
Excavator Mounted Dredge Pump Attachment. Cutterhead or Water Jetting Ring Options. Compatible with CAT, Deere, Volvo and other Excavators. The Number 1 Cutter Suction Dredge for your Excavator. Contact Us for Sales or Rentals.
Lampiran Pompa Pengerukan Excavator
Excavator Mounted Dredge Pump Attachment. Cutterhead or Water Jetting Ring Options. Compatible with CAT, Deere, Volvo and other Excavators. The Number 1 Cutter Suction Dredge for your Excavator. Contact Us for Sales or Rentals.

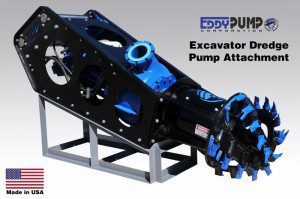

Excavator Dredge Pump Attachment. This state of the art dredging system is unique to the market and improves the process for high solids pumping while using the hydraulic power of your existing excavator. The EDDY Pump Excavator Attachment easily pins into your existing bucket linkage and is powered off of the excavators’ auxiliary hydraulics.
Pump and equipment both are built and designed by EDDY Pump. This ensures the perfect fit along with support from the same company. We do not use 3rd party pumps like our competition does.
Highlight Video
Excavator Dredge Pump Attachment
Ideal Uses: Hydraulic Barge Unloading, Mining Tailings Ponds, Slurry Ponds, Liner Safe Dredging, Heavy Construction, Dewatering, Railcar Offload, Long Reach Dredging and more.
Agitation Options: Cutterhead OR a high-pressure water jetting rings available depending on the dredging application.
Our patented pump technology outperforms all centrifugal, vortex and positive displacement pumps in a variety of the most difficult pumping applications.
We are one of the few companies who manufactures both our pumps and dredging equipment to ensure optimal support.
The pump and cutterhead suction dredge work in conjunction to make this the optimal dredging system for handling compact material, highly viscous materials and pumping high solids. This pumping system can easily pump slurries up to 4500-ft without the need for a booster pump.
For large rocks and distances over 2000-ft, an HPU (Hydraulic Power Unit) is recommended for max production. Call for details.
All EDDY Pump suction dredges and excavator cutterheads are powered by our field-proven, USA Built, industrial slurry pumps.
The core of this design is the patented EDDY Pump technology. The design redefines the pumping industry by being the only pump that utilizes the principles of a tornado to create a synchronized eddy current. This pump is not a centrifugal, positive displacement or vortex pump, but instead the most efficient high solids and high specific gravity pump on the market. This translates to the ability to pump higher percent solids of material with less water.
To learn more about the technology behind our pumps continue reading more here.
Client Testimonial
“We sincerely appreciate your company’s effort, especially Mr. Adam’s hard work during staying in here.
Testing was done successfully today due to Mr. Adam’s effort and we think that this equipment will help our project catch up the progress. Many thank you.”
Equipment: 10-inch Excavator Dredge Pump Attachment and 500HP HPU by EDDY Pump, running on a CAT 345D.
Application: Power plant pipeline dredging. Land and barge-based deployment of the excavator dredger.
About unit: This 10-inch Excavator Dredge Pump Attachment is powered by a custom EDDY Pump Hydraulic Power Unit. This unit is fully mobile and replaces the counterweight with an HPU. For large applications, a dedicated power unit provides the optimum power to ensure your project meets the deadline!
Opsi Kustom
Kami melakukan Aplikasi Kustom dengan toko desain dan fabrikasi lengkap. Hubungi Kami untuk Penjualan atau Penyewaan.
Mengapa Sewa?
- Cobalah peralatan sebelum membeli
- Bagus untuk proyek jangka pendek
- Sewa untuk memiliki program
- Biaya awal yang lebih rendah
Features and Benefits
Excavator Attachment
EDDY Pump Advantages
- Non-Clog, High Viscosity, High Specific Gravity, High Abrasives, Low pH Pumping Design
- Pump and dredge built by EDDY Pump. The competition uses 3rd party pumps, not the case at EDDY Pump
- Pump 40-60% Solids by Volume
- Ability to pump objects of up to 12-inches in diameter
- 100% American Built
- State-of-the-Art Research and Development Facilities on site
- Easily process rags, string, rocks and foreign objects
Excavator Attachment Options
- 700-4000 gpm (Up to 350 yd3 per hour)
- Long Reach Dredge Boom
- Dredging Depths of up to 85-ft
- 4-inch, 6-inch, 8-inch, 10-inch and 12-inch versions
- Cutterhead for compact material dredging
- Water jetting ring option
- Liner Safe Option for Dredging Clay, Poly or Concrete Liners
- Power Options. 1. Hydraulically off the Excavator, 2. HPU (Hydraulic Power Unit) or 3. Electrically
- Cutterhead and Non-Clog Head Configurations
- RTK/GPS Precise Position and Dredging
Pump Features
- Non-Clogging Design
- High Solids Handling
- High Viscosity and Specific Gravity Handling
- High Abrasives Handling
- No Critical Tolerances
- Low Maintenance
- Minimal Downtime
- Low Ownership Costs
- Gambaran Umum Brosur Excavator
- Bagan Linkage Pin Excavator
Featured Clients
EDDY Pumps perform best in harsh conditions because of our patented non-clogging design. Our mining and industrial clients agree.
Cutterheads and Accessories for the Excavator Pump Attachment
Standard Cutterhead
Our standard cutterheads are great for breaking up compact material to feed the pump. They usually rotate between 15 to 60 rpm and are equipped with specially designed replaceable cutter teeth around the attachment.
Self-Cleaning Head
As the attachment rotates, a self-cleaning comb device clears the mud or other debris from the head unit, allowing for far less blockage of sticky sludge and mud through the suction intake.
Water Jetting Ring
Break up material and inject water at high pressure to break up and liquify highly condensed solids. Works with standard or self-cleaning cutterhead.
Liner-safe Wheels
The liner-safe wheels allow for safe and protective dredging operations in areas with poly or concrete-lined pits, canals, or other sensitive surfaces.
Pictures and Videos
Excavator Dredge Attachment Videos
Why EDDY Pumps Are Better.
Excavator Pump Attachment, Pumping Mud
Photo Gallery
This major project in Indonesia was using a Dragflow excavator pump. The Dragflow unit was quickly replaced after the EDDY Pump Excavator Attachment arrived on site. Additional EDDY Pump units have been added to the project.
The Best Non-Clog and High Solids Industrial Pump on the Market. Since 1984.
Best Applications: If you are pumping high solids, slurry, extremely viscous material, high abrasives (sand & gravel) and material filled with solids then you found the ideal pump for your job.
Industries Most Served: Mining, Oil and Fracking, Waste Water, Paper/Pulp, Chemical, Energy, Water Districts, Irrigation Districts and Dredging Companies.
Long Boom and Amphibious Excavator Options
EDDY Pump bekerja sama dengan beberapa penyedia untuk menawarkan buggies rawa dan opsi boom pengerukan jangkauan panjang yang sudah siap digunakan dengan Lampiran Pompa Pengerukan Excavator kami.
Lampiran Pengerukan dan Paket Long Boom Keruk
Sistem Long Boom Dredge untuk memperluas jangkauan Anda. Manfaat dari sistem ini adalah mengurangi waktu pengaturan karena boom sudah diisi sebelumnya untuk selang pembuangan, menghemat waktu modifikasi khusus untuk klien. Ini adalah sistem steker dan pompa yang menempel pada excavator Anda dan memulai proyek Anda lebih cepat VS melakukan pipa selang Anda sendiri. Plus, boom panjang sangat memperluas kapasitas produksi Anda.
Konversi Excavator Amfibi “Swamp Buggy”
Selain itu, excavator dapat dikonversi menjadi undercarriage amfibi untuk digunakan di daerah berawa. Dengan ledakan jangkauan yang panjang, sistem ini tidak tertandingi dalam produktivitas.
Galeri foto kapal keruk dan ekskavator amfibi yang jangkauannya jauh.
Ingin solusi seperti ini? Kami dapat merancang sistem untuk excavator Anda untuk memenuhi permintaan proyek Anda.
Hoses + Floatation
OEM Tested & Recommended
Selang hisap berkualitas tahan runtuh dari Pompa EDDY yang dihasilkan hisap.
Selang pembuangan berkualitas tinggi membantu mengurangi keausan dari padatan yang sangat abrasif.
High-quality discharge hose floats. Reduce setup time and labor costs, while providing a professional look for your project.
Pesan atau Dapatkan Bantuan Pilihan
Let our sales or engineering support help in your dredging equipment selection. Call (619) 258-7020
