JPE 4000 – 4-Inch Electric Cable Deployed Pump with Jetting Ring Agitator
Purpose-Built for Heavy-Duty, Cable-Deployed Operations
Key Features
- High-Solids Pumping – Handles up to 40–70% solids by volume.
- Non-Clog Design – Patented rotor allows for continuous flow of abrasive, viscous, and low-pH materials.
- Jetting Ring Agitator – Adjustable water flow for optimal material suspension.
- Deepwater Capability – Operates at depths up to 100 ft.

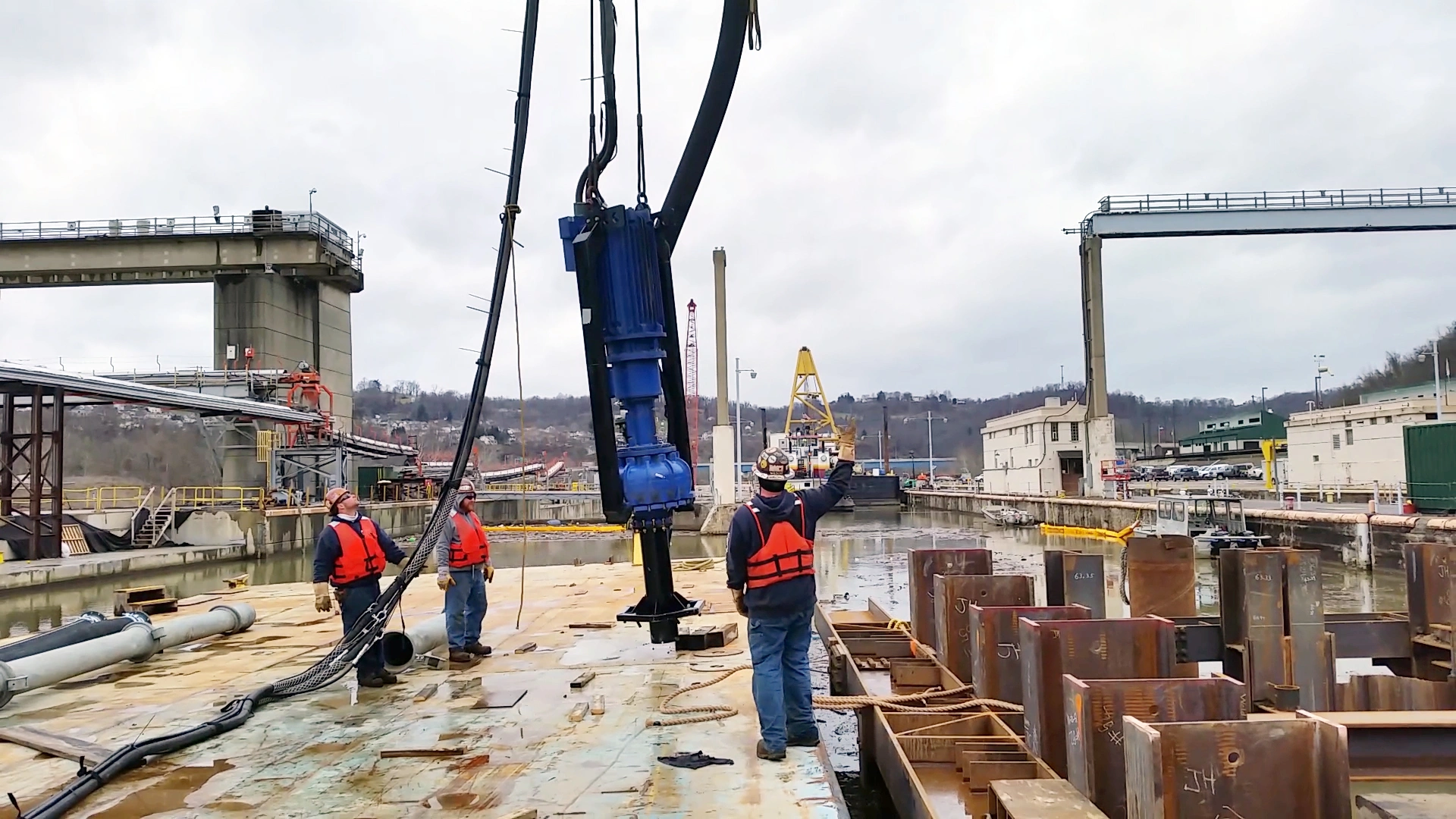

- Versatile Mounting – Can be deployed from cranes, barges, or fixed structures.
- Heavy-Duty Build – Corrosion-resistant components for long service life in harsh environments.
- Multiple Configurations – Available in alternative power options and sizes.

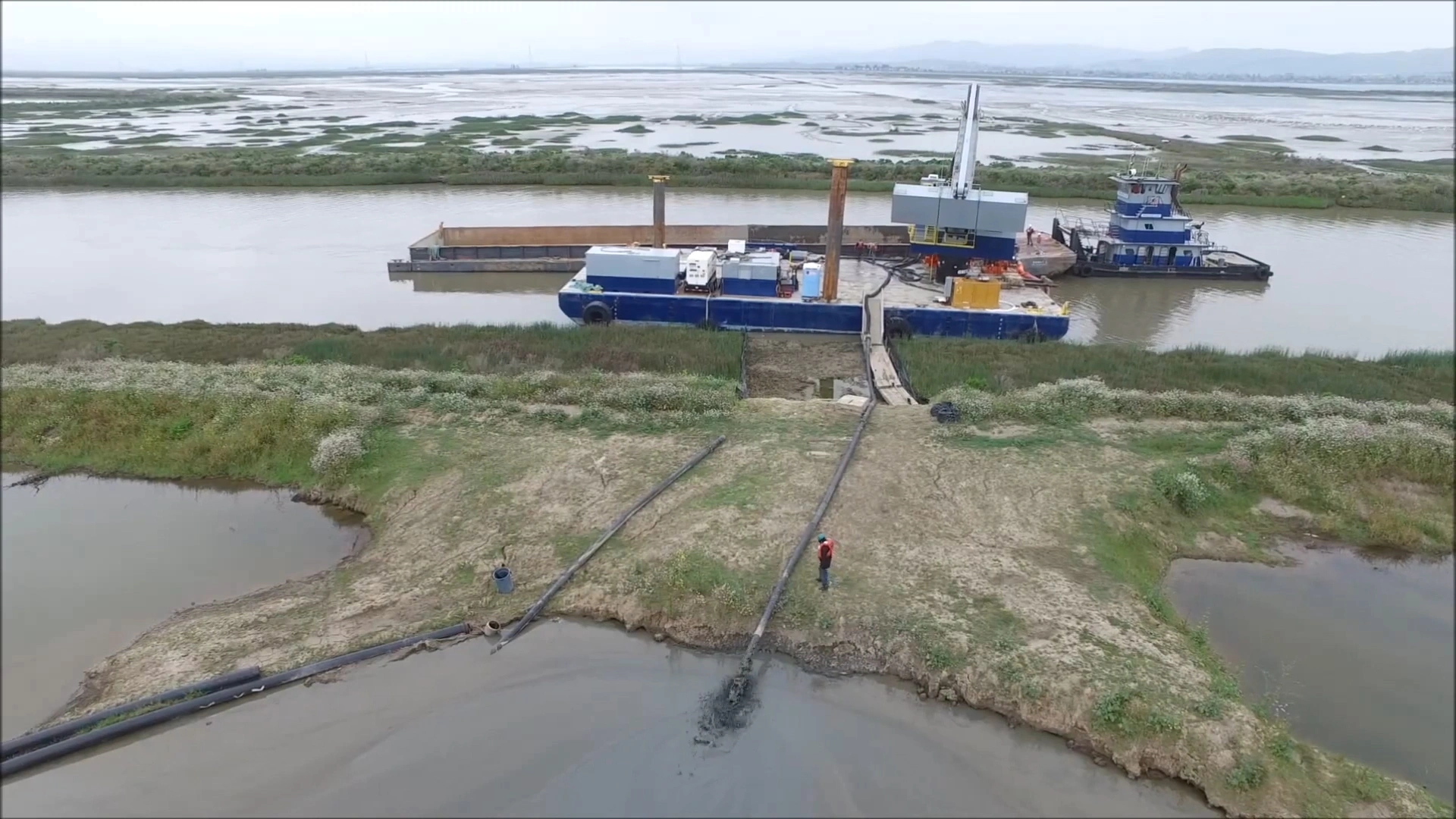

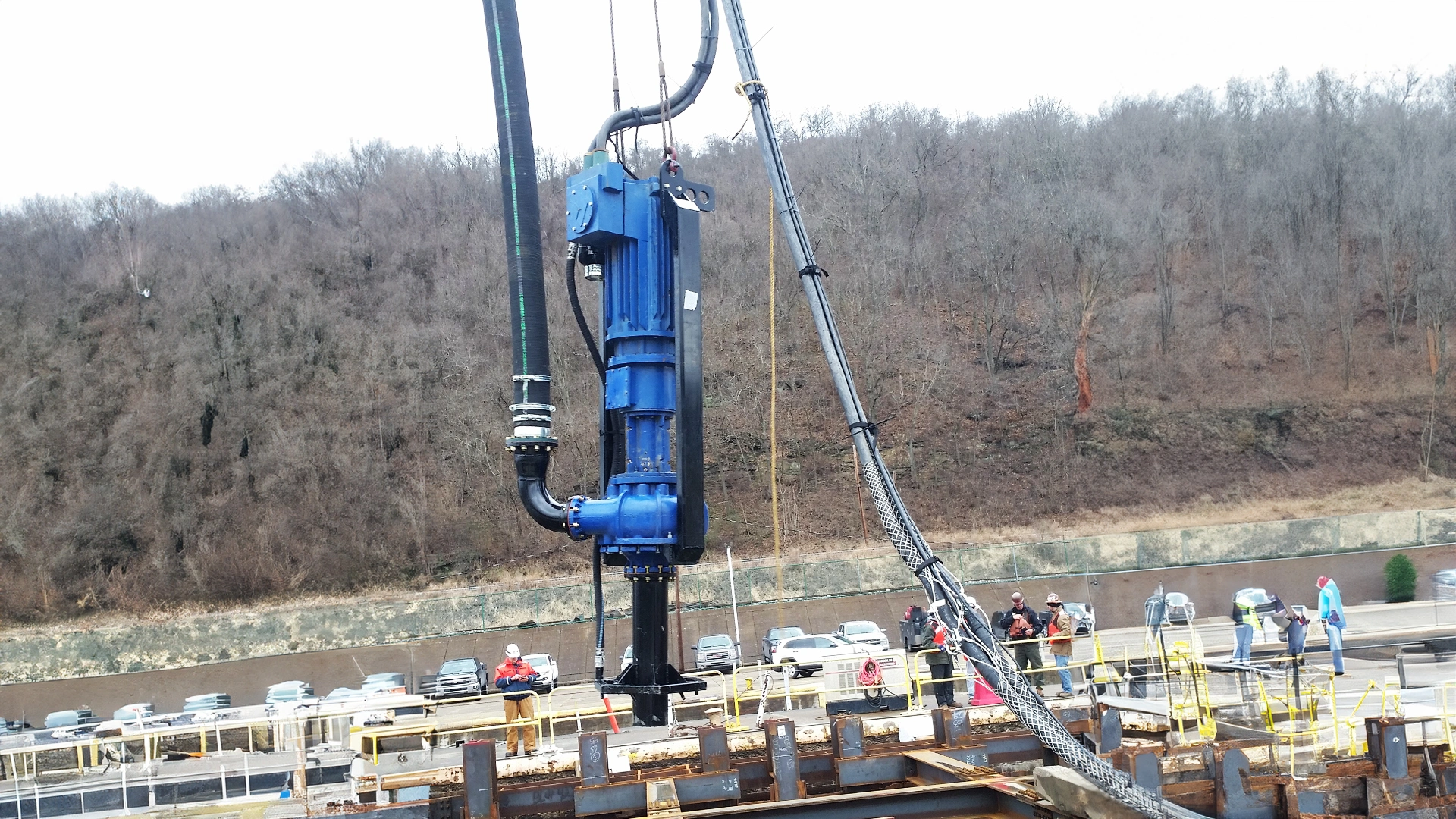

JPE 4000 – 4-Inch Electric Cable Deployed Pump in
real world applications
Technical Specifications
Performance Specifications
- Flow Capacity: 250 – 1,200 GPM
- Head Range: Up to 200 ft
- Material Throughput: 75–150 cubic yards/hour
- Solids Handling: Up to 3 inches
- Percent Solids: 40–70% by volume
- Max Speed: 1,800 RPM
- Dredging Depth: Up to 100 ft
- Motor: 100 HP
Physical Specifications
- Discharge Size: 4 inches
- Suction Size: 6 inches
- Overall Weight: ~3,300 lbs (without optional equipment)
- Overall Length: 113 in (2.87 m)
- Overall Height: 37 in (0.94 m)
- Overall Width: 28–38 in (0.7–0.97 m, depending on discharge pipe)
- Standard Jetting Ring Diameter: 36 in (0.91 m)

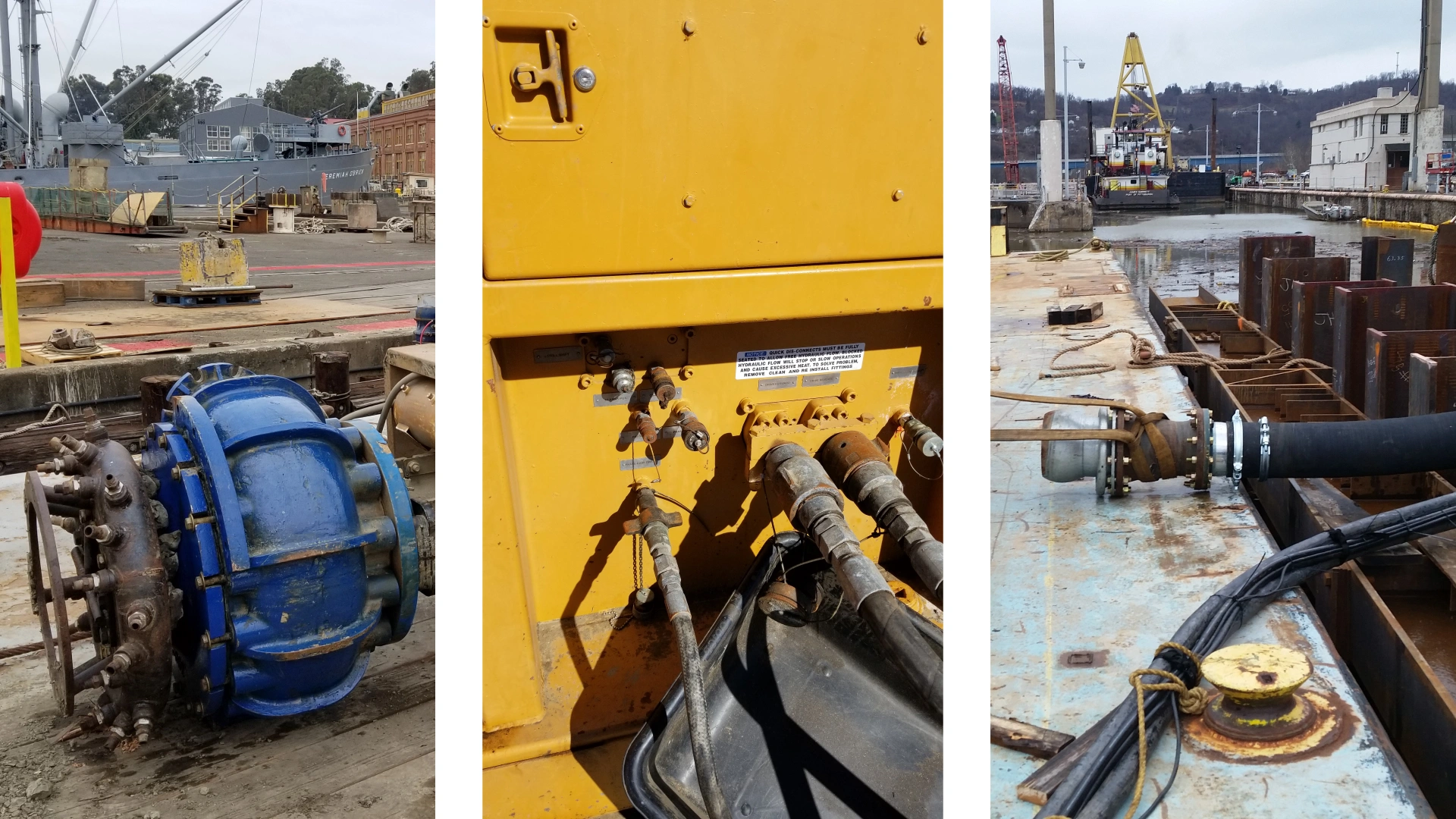

Required Equipment
- Jetting Ring Agitator with water pump: 400–1,000 GPM at 150 PSI max
- 4-inch material handling discharge hose
Recommended Accessories
- Doppler wireless slurry flow meter
- Discharge line pressure gauge (0–150 PSI)
- “Quick Prime” valve (requires a small 24V air system)
- Pivot-mounted discharge hose carrier
- Liner-safe roller attachment and self-cleaning mud guard
- Recirculation system for pre-mixing applications
Jetting Ring Specifications
| Jetting Ring Size | Number of Jets | Flow per Jet (GPM) | Total Flow (GPM) | Velocity (ft/sec) | Inlet Flange Size | Inlet Flange Bolts | Part Number |
|---|---|---|---|---|---|---|---|
| Small Ring | 16 | 47.5 | 760 | 108 | 3" | 4 Bolt, 150# Class | EXF4K 16 16025 |
| Large Ring | 28 | 27 | 760 | 62 | 4" | 8 Bolt, 150# Class | EXF6K/8K/10K 28 12882 |
Pump Curve
For the JPE 4000 Electric Cable Deployed Pump, the pump curve represents how flow rate and head vary during submerged, high solids dredging operations. It helps operators identify optimal operating ranges when pumping 40 to 70 percent solids, balance jetting agitation with material flow, and maintain stable performance at depths up to 100 feet under varying slurry densities.
Technical Drawings & Resources
EDDY Pump 16-Jet Ring Head Specs Sheet – 3″ Inlet
EDDY Pump 28-Jet Ring Head Specs Sheet – 4″ Inlet
General Specs
Available in alternative power options and pump sizes depending on your application.
| Production: 700-1000 GPM or 75-150 cubic yards of material per hour | ||
| Head with 80cc hydraulic motor (16” rotor) | Up to 200 feet | Up to 61m |
| Overall Weight (without optional equipment) | 3,300 lbs | 1496 kg |
| Overall Length | 113 inches | 2.87 m |
| Overall Height | 37 inches | .94 m |
| Overall Width with discharge pipe removed | 28 inches | 0.7 m |
| Overall Width with discharge pipe mounted (right side) | 38 inches | 0.97 m |
| Carrier Weight Range | 30 + tons | 18,000-40,000 kg |
| Standard Jetting Ring Diameter | 36 inches | 91m |
| Double seal with Sealed Barrier fluid tank (allow dry run) | 3 inches | 76.2 mm |
GPM & VELOCITY CALCULATION BASED ON 4″ CENTRIFUGAL WATER PUMP, 760 GPM WITH 81′ HEAD
| SIZE | JETS | PART # |
| EXF4K | 16 | 16025 |
| EXF6K, EXF8K, EXF10K | 28 | 12882 |
Operating Levels
| MIN FLOW | 250 GPM |
| MAX FLOW | 1200 GPM |
| HEAD RANGE | Up to 200 ft |
| DISCHARGE SIZE | 4 inch |
| SUCTION SIZE | 6 inch |
| SOLIDS HANDLING | Solids up to 3 inches |
| MAX SPEED | 1800 RPM |
| PERCENT SOLIDS | Up to 40-70% Solids |
| CU YD MATERIAL HR | 75-150 |
| DREDGING DEPTH | Up to 100ft |
Electric Cable-Deployed Jetting Ring Pump Comparison
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr | Max Speed (RPM) | Percent Solids | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight | Motor HP |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JPE 4000 | 4 inch | 250–1200 | 200 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,30 | 20–45 tons | 100 |
| JPE 6000 | 6 inch | 450–2000 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons | 150 |
| JPE 8000 | 8 inch | 800–4000 | 200 | 7 | 250–300 | 1800 | 40–70% | 100 | 6,800 | 60–94 tons | 450 |
| JPE 10000 | 10 inch | 1200–5000 | 200 | 9 | 300–350 | 1800 | 40–70% | 100 | 7,500 | 60–94 tons | 450 |
| JPE 12000 | 12 inch | 1800–7000 | 200 | 11 | 500–600 | 1800 | 40–70% | 100 | 9,500 | 30+ tons | 700 |
Industries Served
Marine Construction
Mining & Minerals
Oil & Gas
Power & Utilities
Environmental Remediation
Case Study
Problem

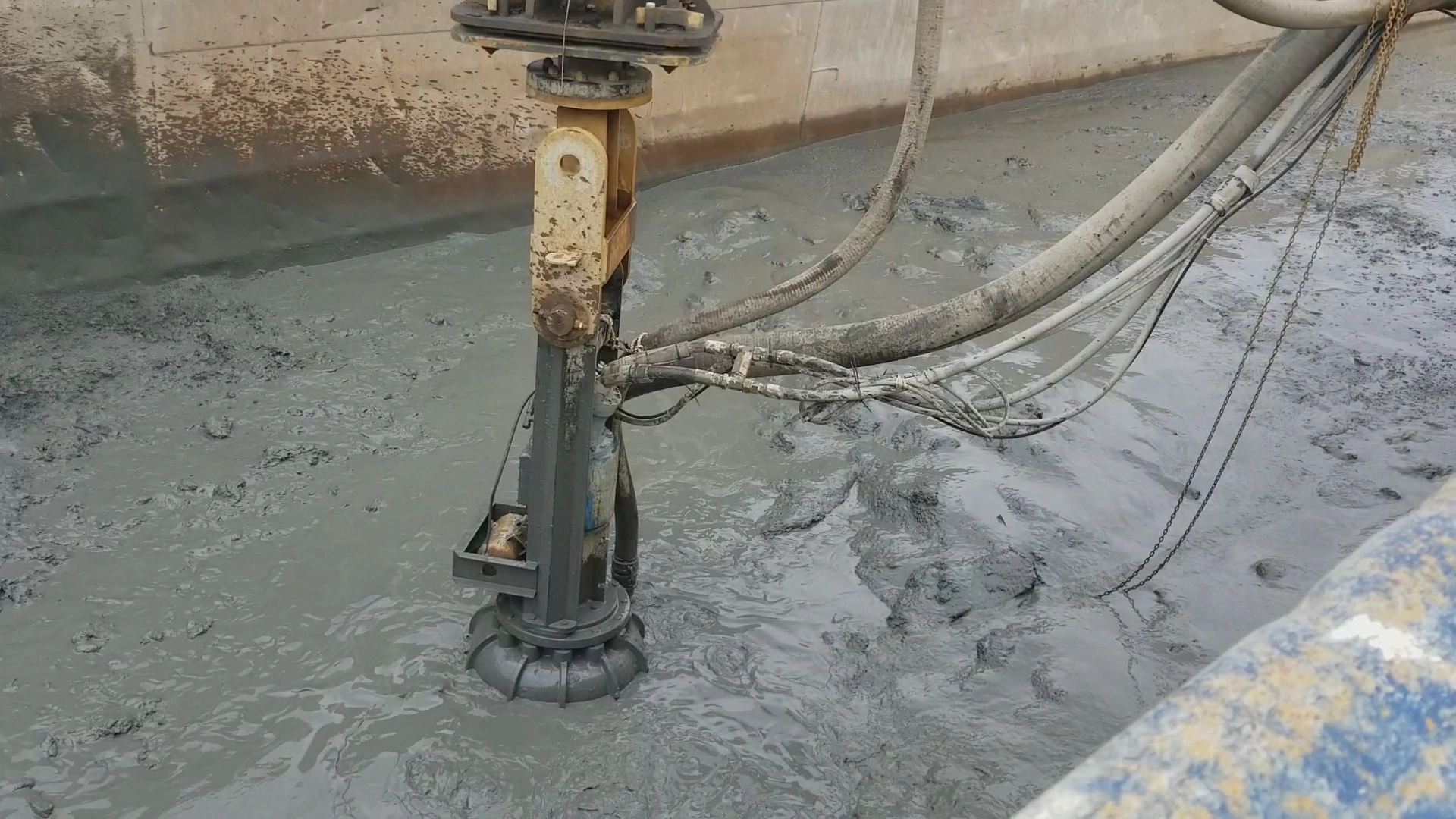

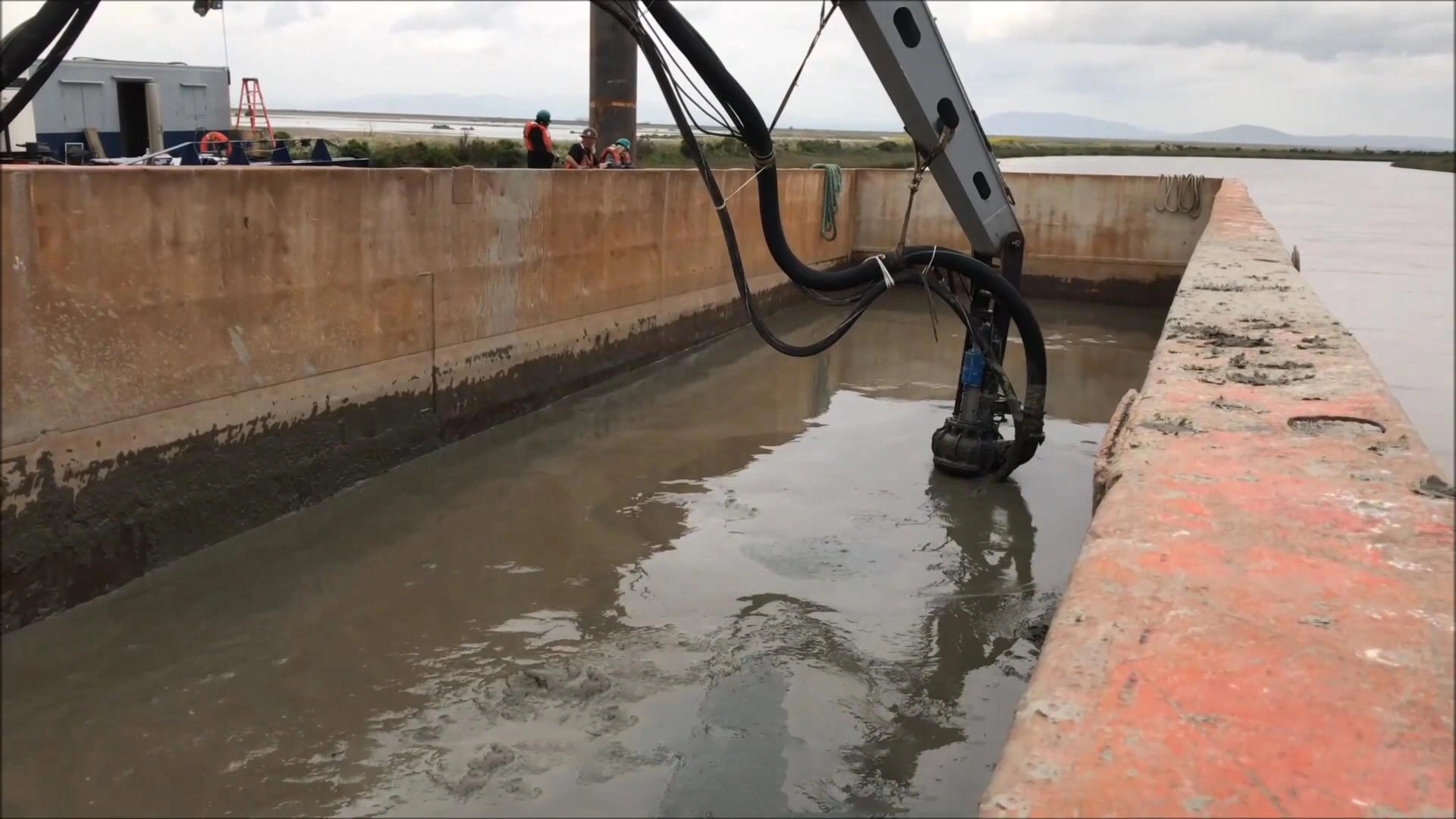

A port facility faced severe delays due to accumulated sand and sediment inside barges, resulting in slow and inefficient unloading. Conventional pumps frequently clog and require frequent maintenance.
Solution

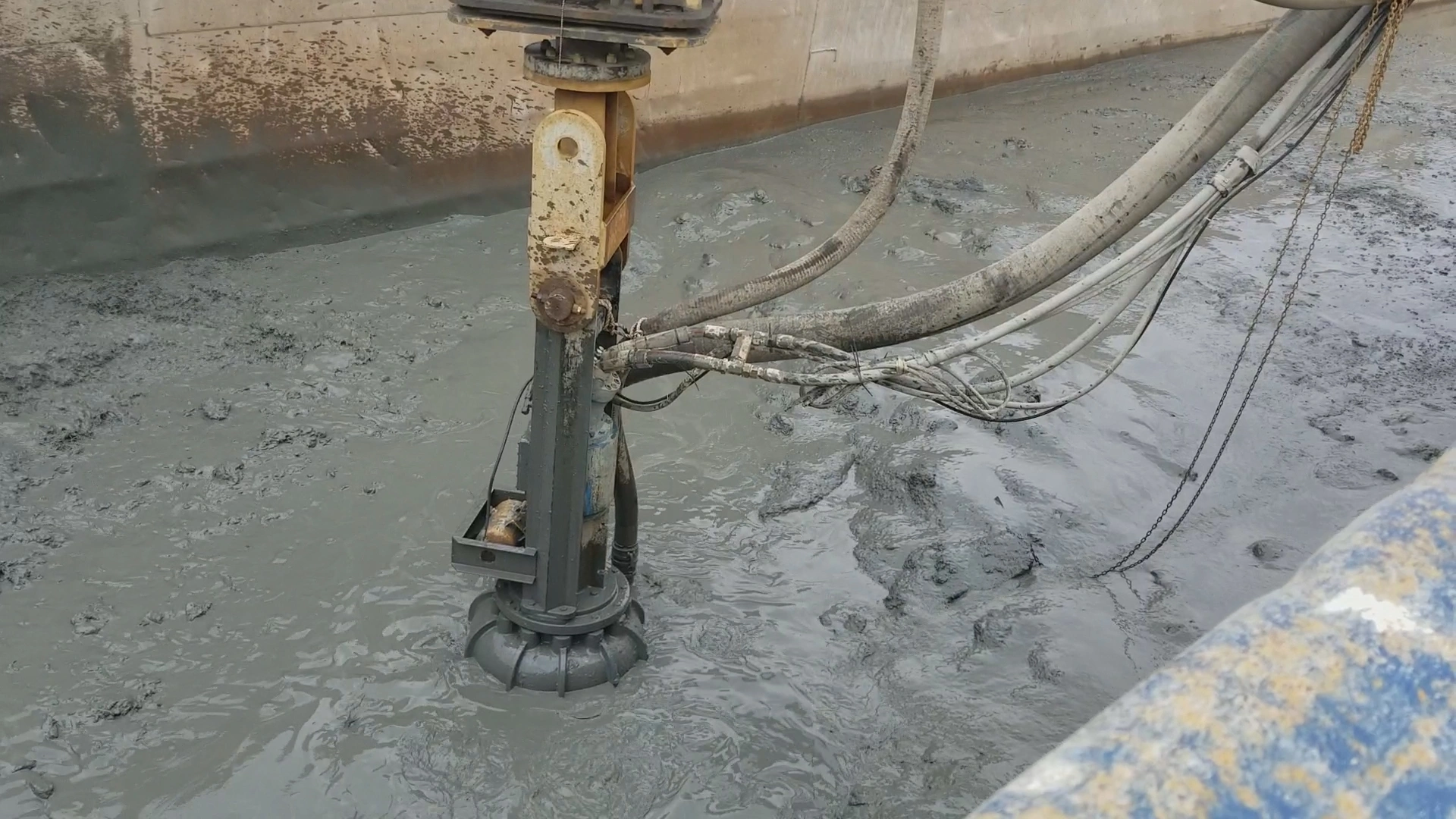

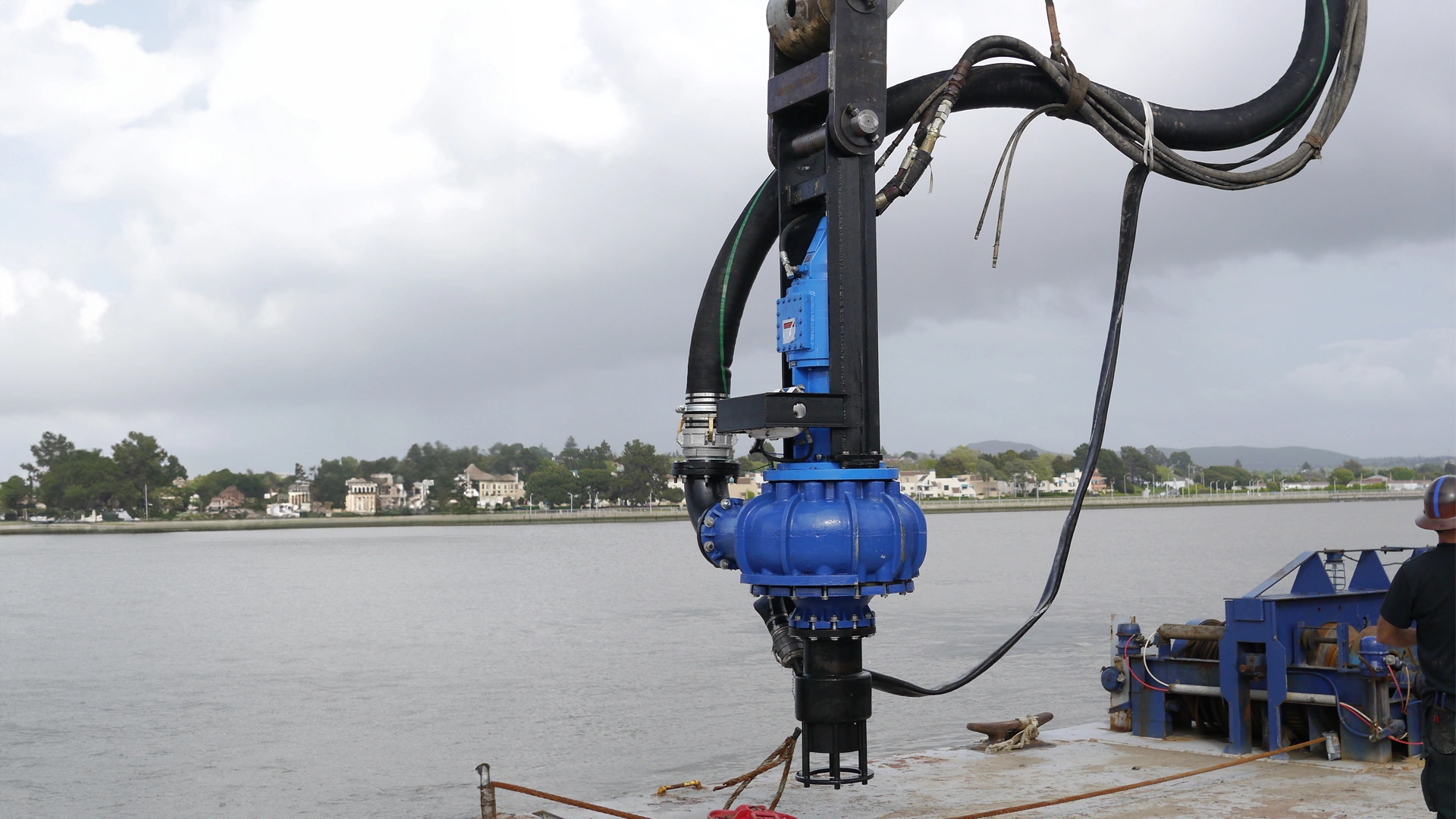

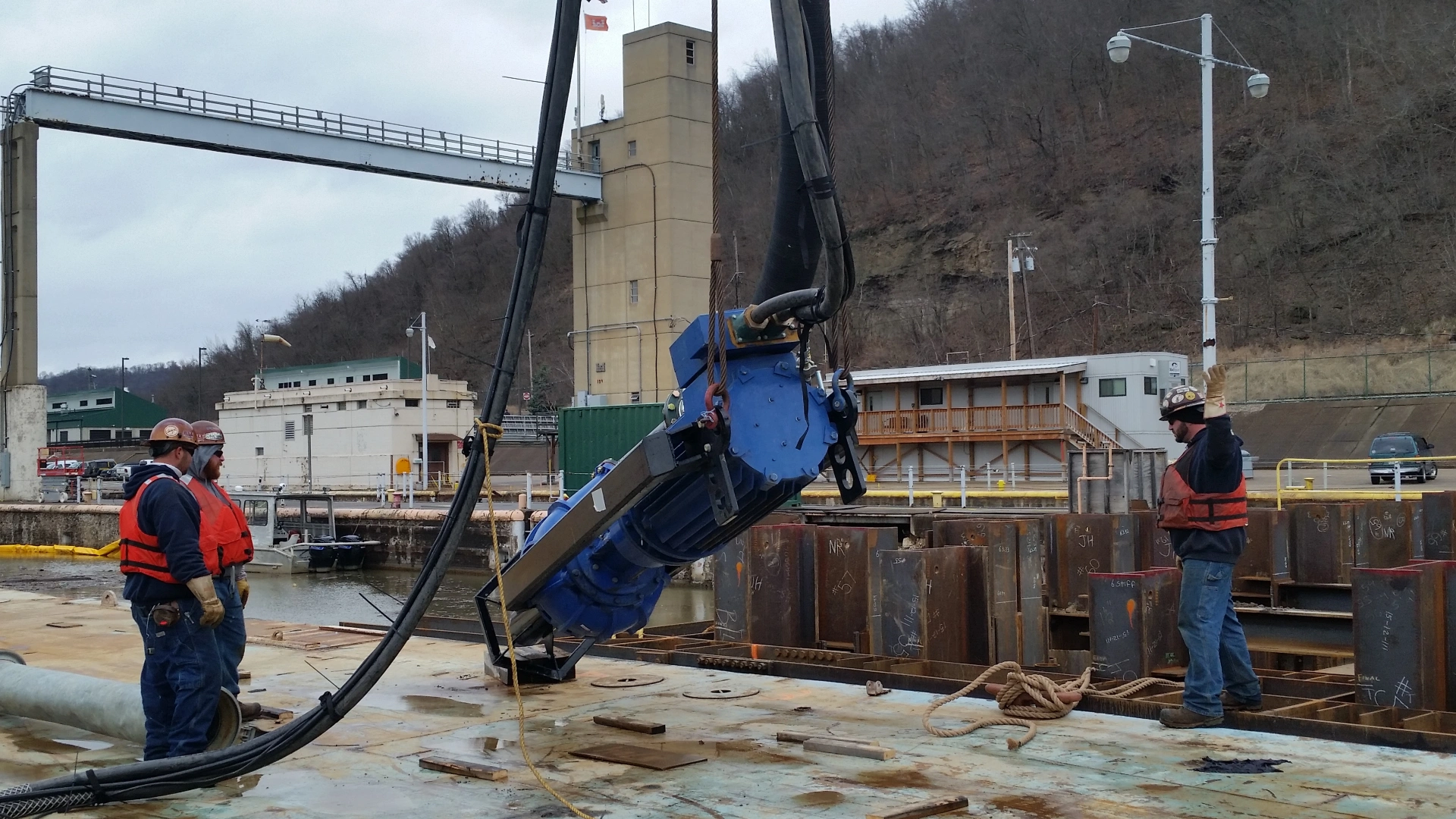

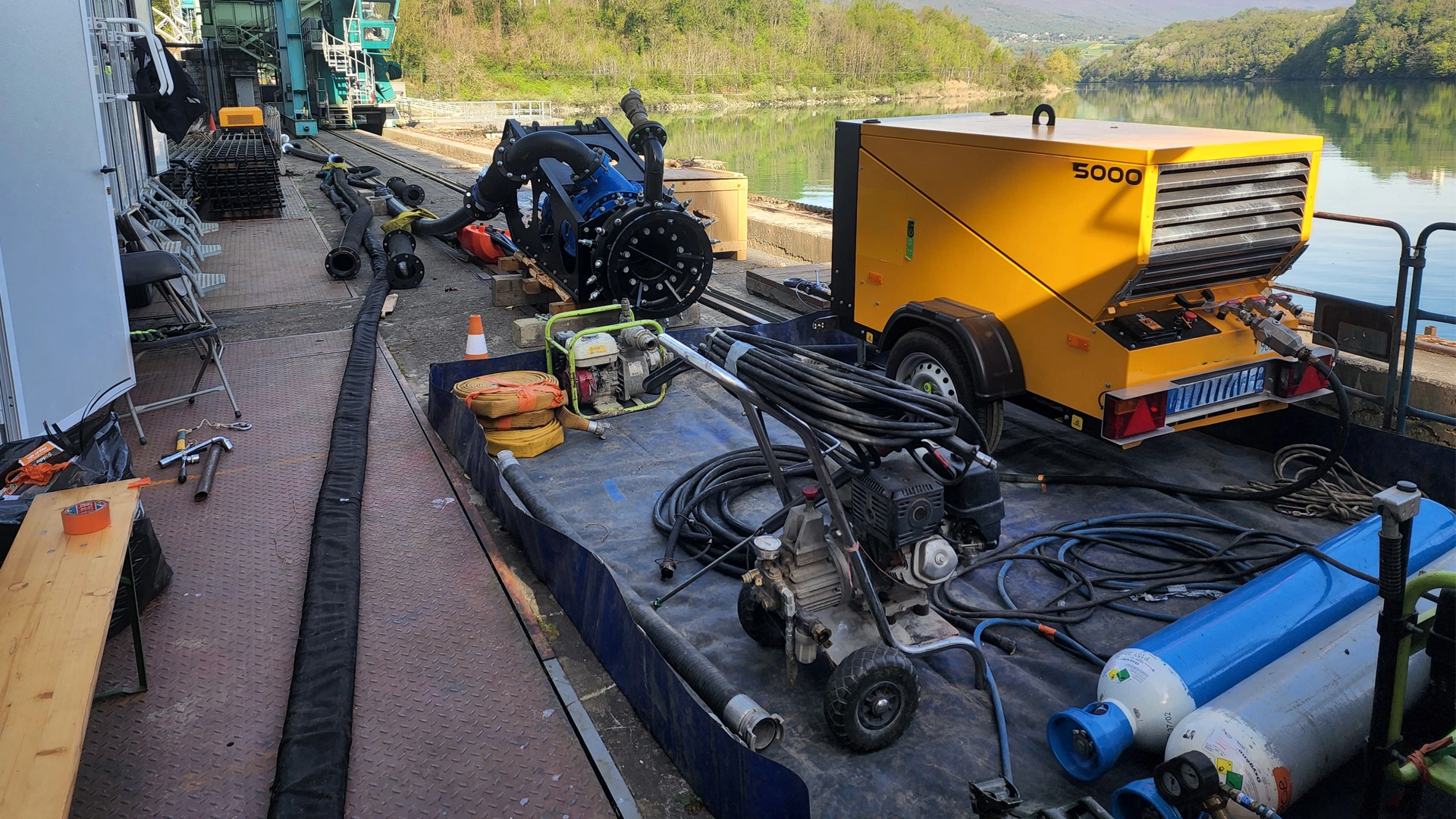

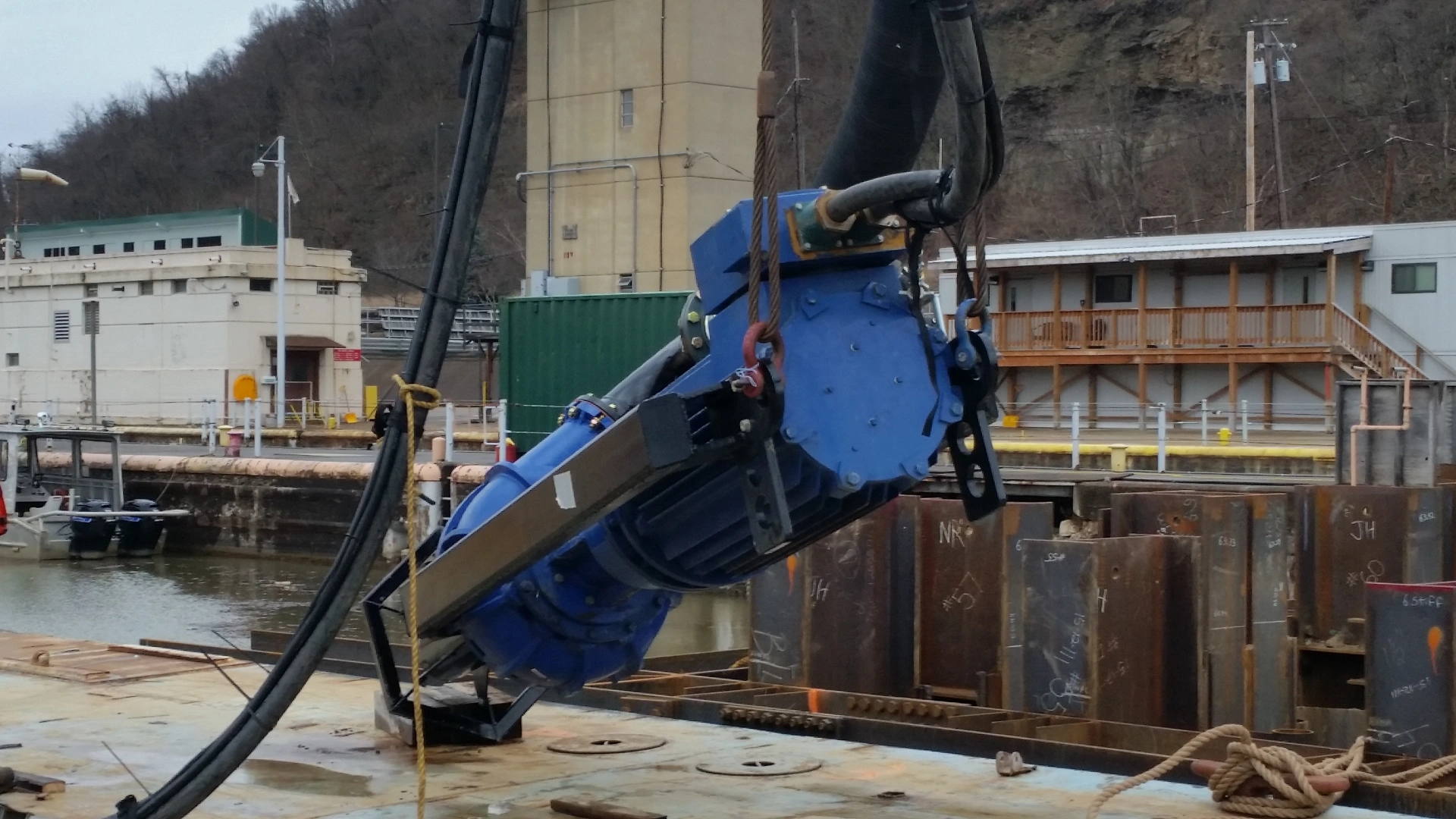

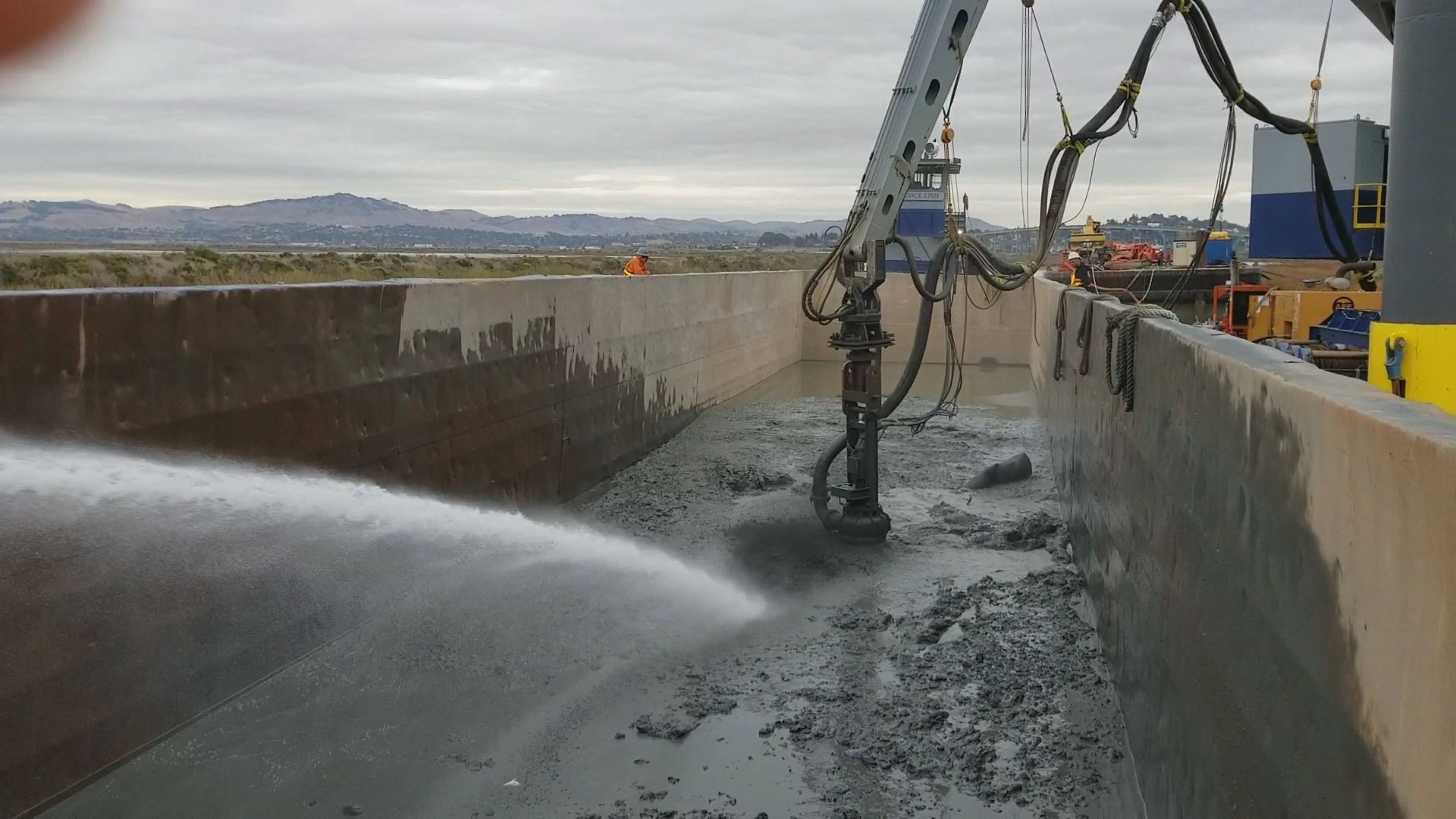

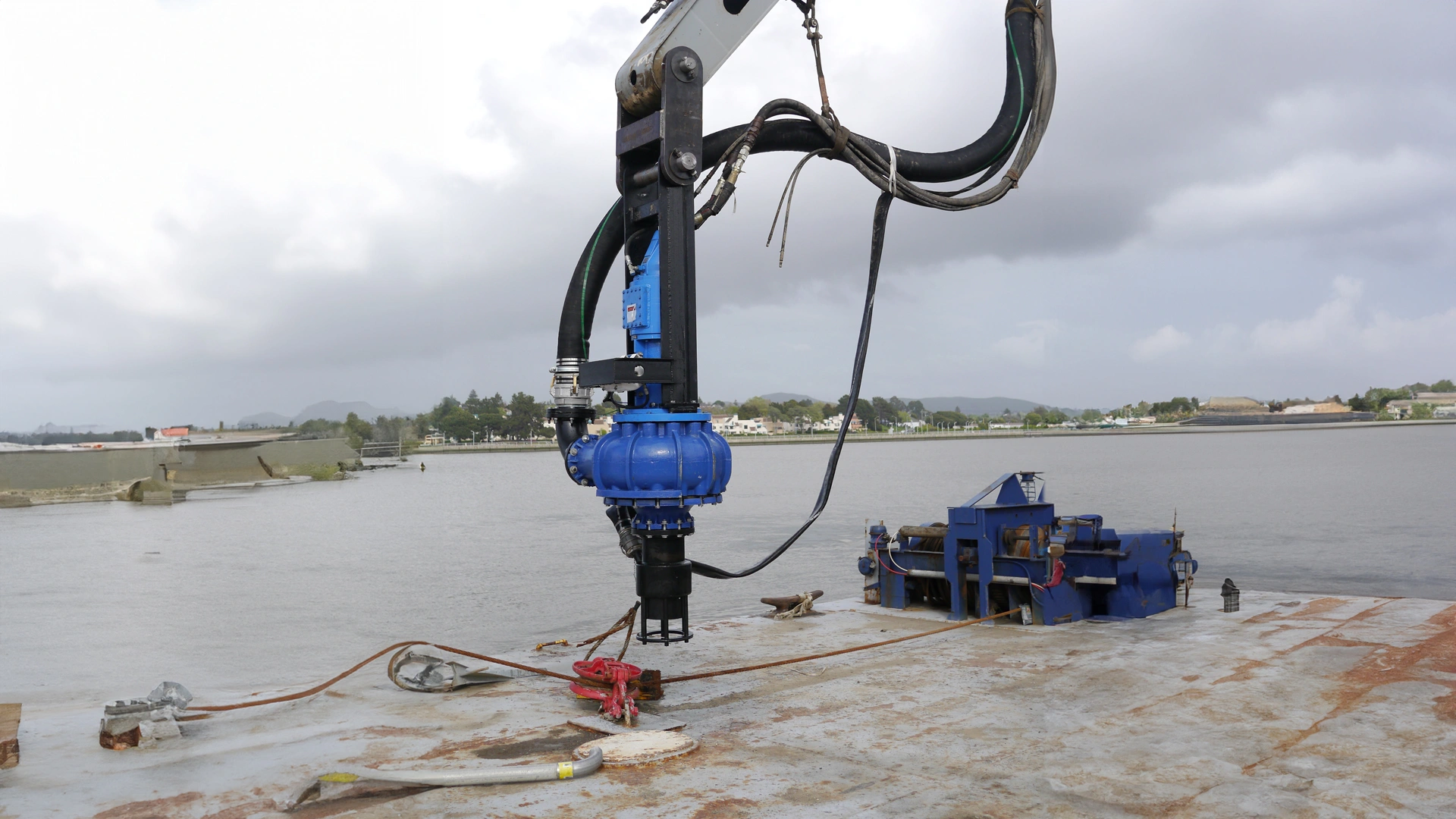

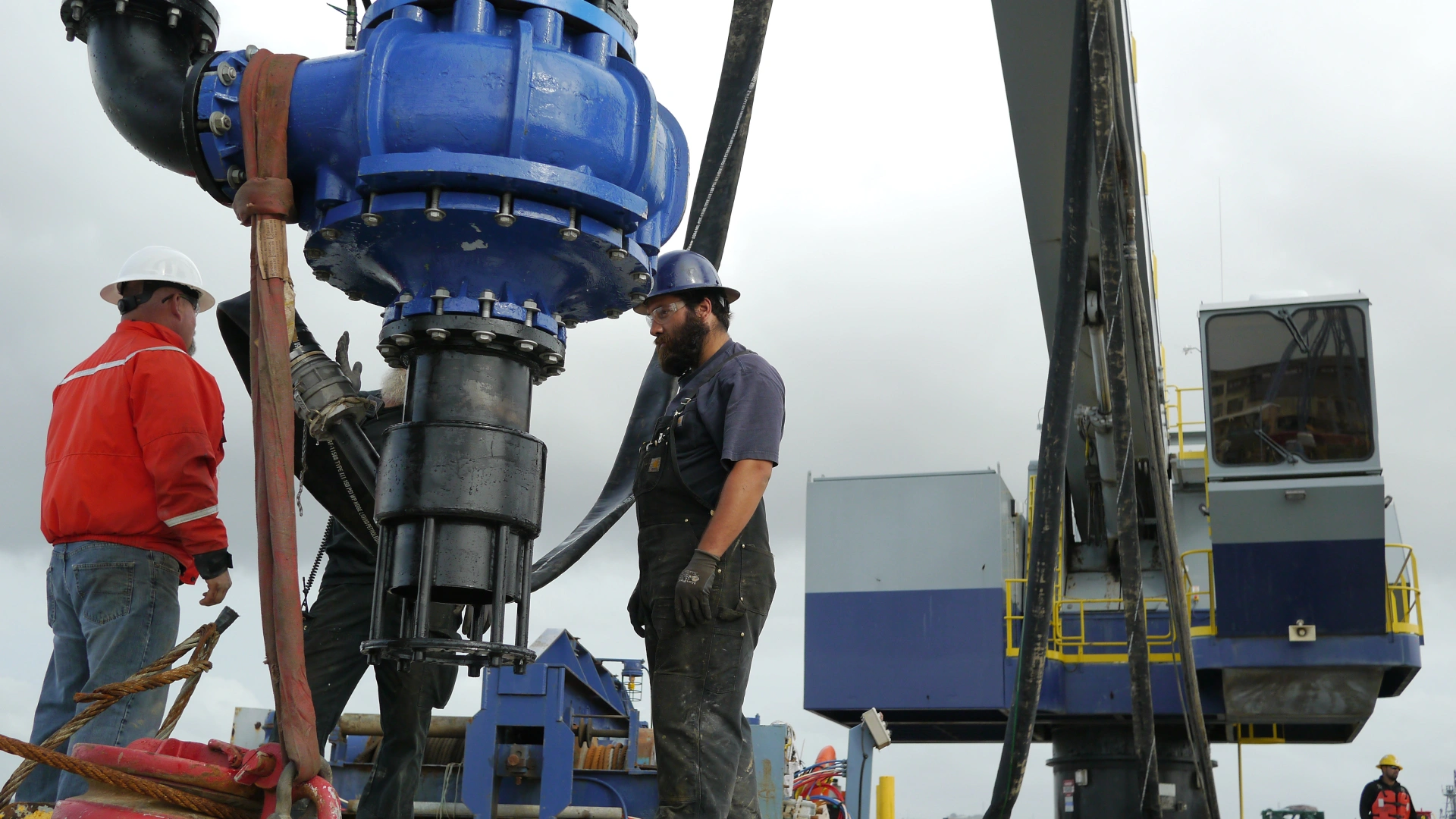

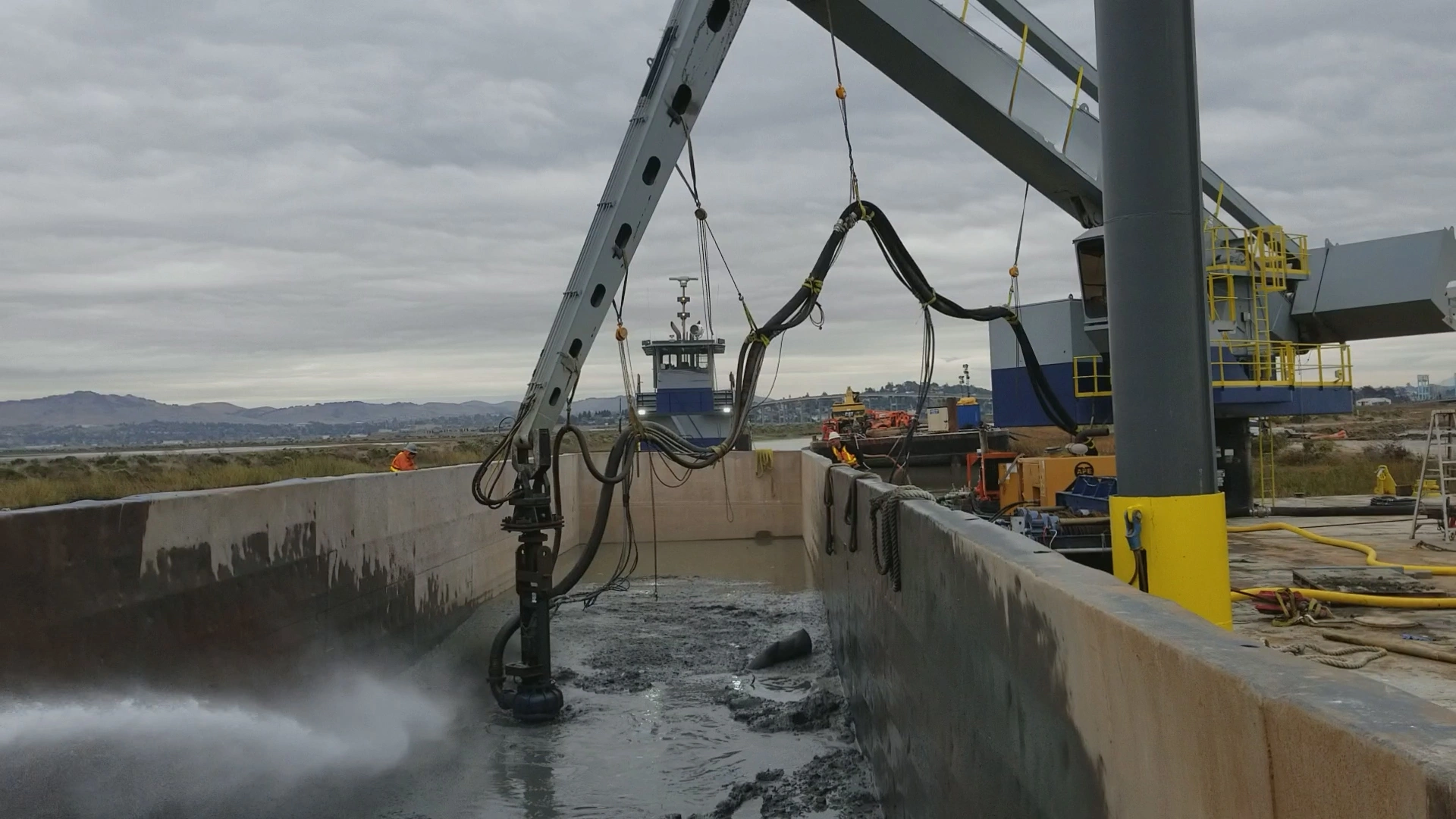

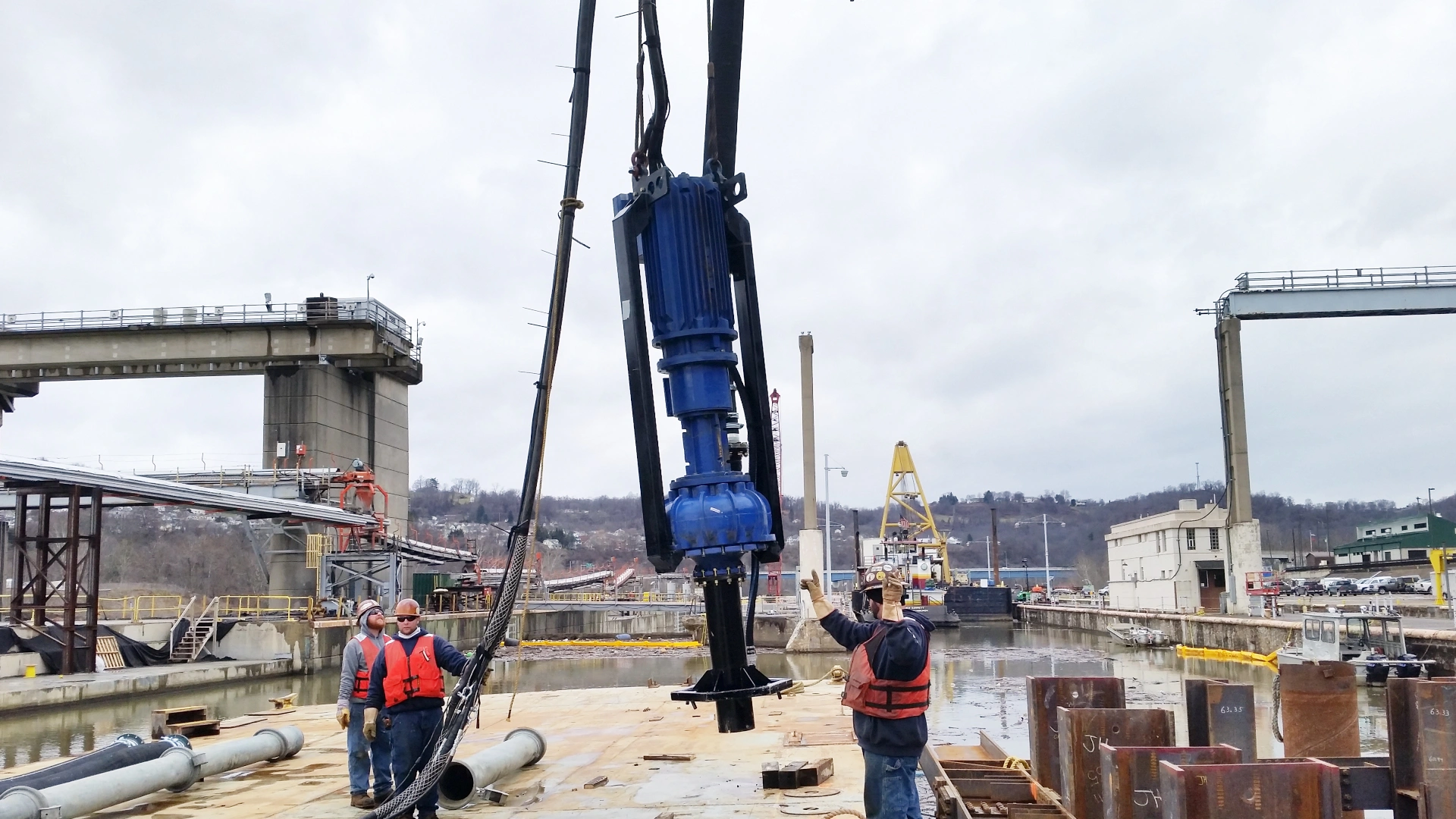

The cable deployed pump with jetting ring agitator was deployed via crane with its jetting ring agitator to pre-fluidize compacted material. The non-clog rotor design allowed continuous pumping of sand-laden slurry without stoppages.
Results
- Increased unloading efficiency by 40% compared to previous methods.
- Operated continuously without clogging over multiple shifts.
- Reduced downtime and labor costs by eliminating frequent pump maintenance.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
We are one of the few companies who manufactures both our pumps and dredging equipment to ensure optimal support.
FAQs
What is the primary advantage of the 4-inch electric cable deployed pump over conventional pumps?
The JPE 4000’s patented non-clog rotor design allows it to pump dense, abrasive slurries with minimal risk of blockages. This results in longer continuous run times, reduced downtime, and lower maintenance costs compared to centrifugal, vortex, or positive displacement pumps.
How deep can it operate?
This cable-deployed pump can work at depths of up to 100 ft, making it suitable for deepwater dredging, barge unloading in harbors, and offshore sediment removal without the need for divers or underwater personnel.
What materials can the electric submersible dredge pump 4-inch pump?
It is engineered to handle a wide range of materials, including sludge, slurry, sand mixtures, drilling mud, mine tailings, grit, and other abrasive or high-viscosity solids. Its design ensures high efficiency even when pumping 40–70% solids by volume.
How does the jetting ring agitator work?
The jetting ring uses multiple high-velocity water jets to break up compacted material and keep solids suspended, ensuring smooth intake into the pump. Water flow and jet pattern can be adjusted to match the specific material and site conditions.
What is the maximum solids size it can handle?
The submersible dredge pump with jetting ring can pass solids up to 3 inches in diameter without clogging. This capability is especially beneficial when pumping materials with rocks, debris, or oversized particulate matter.
Can it be used in liner-safe operations?
Yes. With optional attachments like the liner-safe roller and self-cleaning mud guard, the cable-deployed dredge pump can work in clay, poly, or concrete-lined ponds without causing liner damage. This makes it ideal for tailings ponds and lined industrial lagoons.
Is it available in hydraulic versions?
While the JPE 4000 is electric-powered, a hydraulic-powered version is also available. This allows flexibility in matching the pump to different power availability and operational requirements.
How much water pressure is needed for the jetting ring?
The jetting ring requires between 400–1,000 GPM of water at up to 150 PSI. This ensures optimal sediment agitation and prevents solids from settling during pumping operations.
Can the JPE 4000 be used for barge unloading?

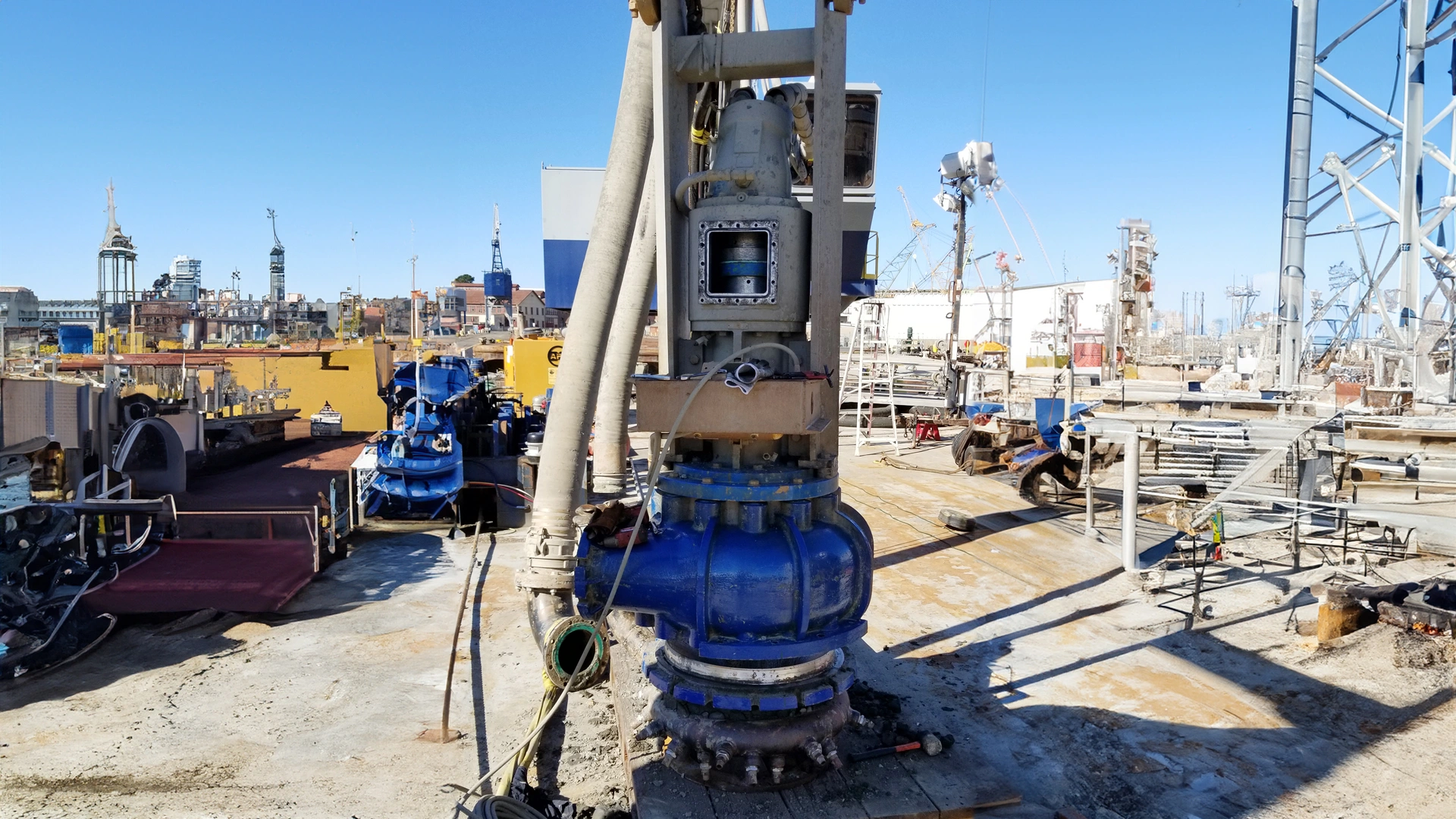

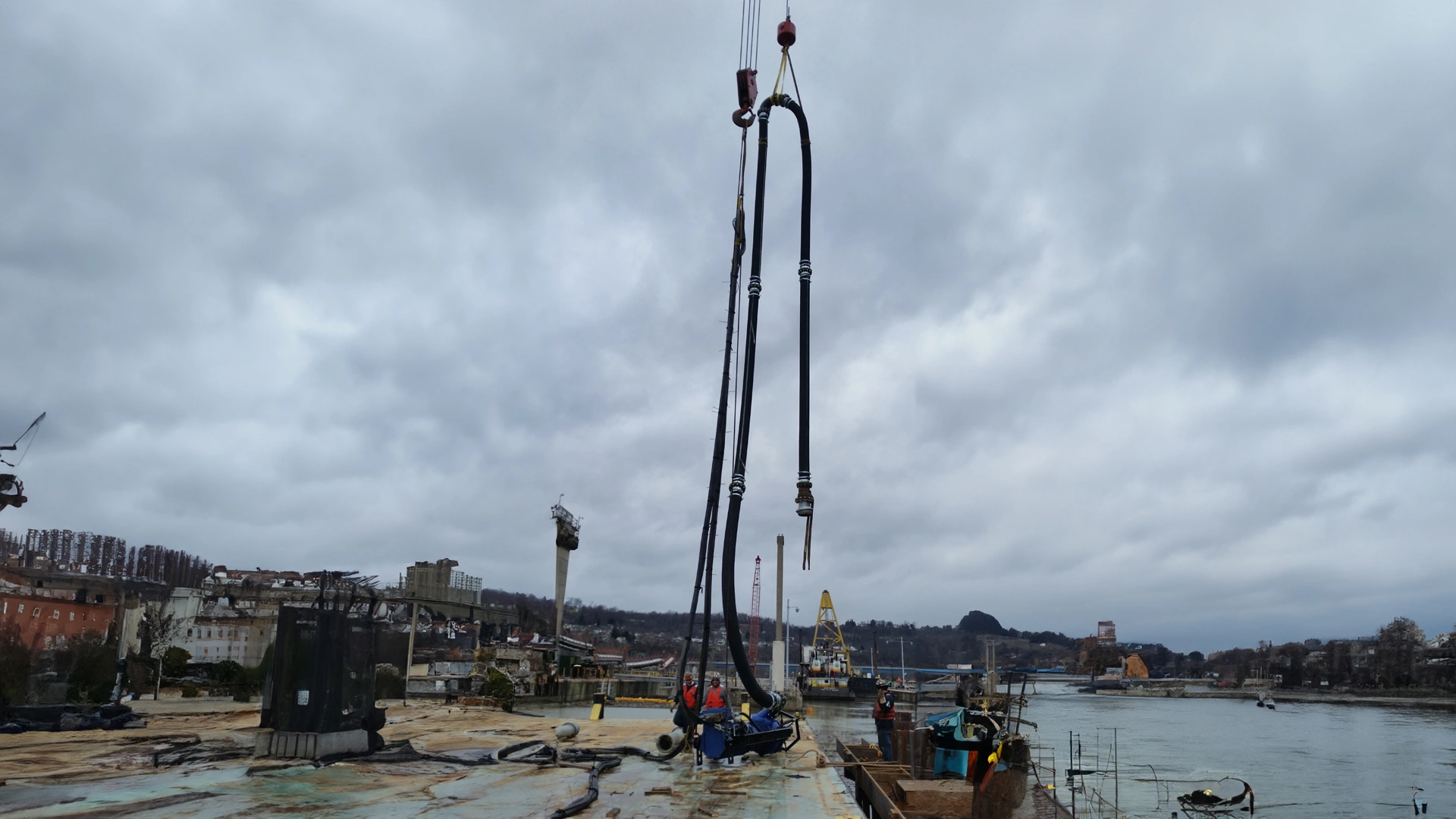

Yes. It’s highly effective for unloading barges carrying sediment, aggregates, or bulk material. Its deepwater capability allows it to reach the vessel’s bottom, while the jetting ring agitator helps loosen compacted material for faster removal.
Does it require special training to operate?
While its operation is straightforward, basic training is recommended to ensure optimal performance and safe handling. EDDY Pump provides training during commissioning and offers remote operational support when needed.
