Excavator Dredge Pump Attachment 6-Inch – EXF 6000
The 6-Inch EXF 6000 Hydraulic Excavator Dredge Pump Attachment is engineered for high-production dredging and slurry handling, delivered directly from an excavator boom. Designed to deliver up to 2,500 GPM and a head range up to 200 ft, it efficiently handles solids up to 5 in. at 40-70% concentration. Operating at speeds up to 1,800 RPM, the EXF 6000 delivers consistent material flow for demanding applications, including mining, sand recovery, sludge removal, and industrial dredging, while minimizing clogging and downtime.

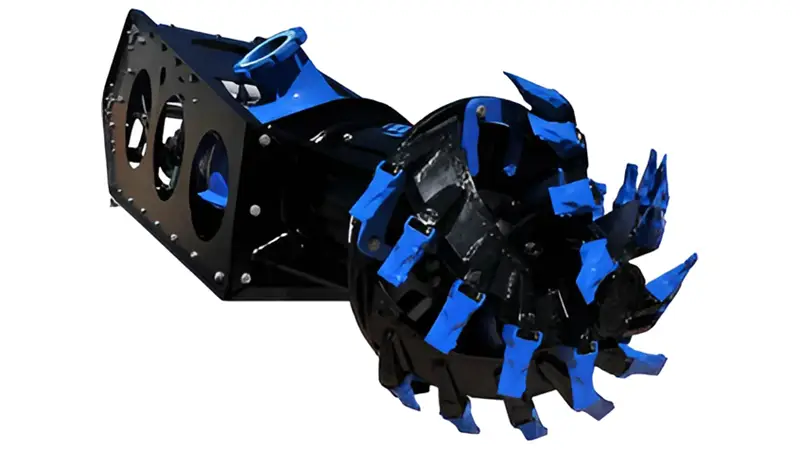

Key Features / Advantages
- High solids-handling capability supports slurry concentrations up to 70 percent without clogging, making it suitable for abrasive and high-viscosity materials.
- Large solids passage allows efficient pumping of material up to 5 inches in diameter, reducing the need for pre-screening or material conditioning.
- High flow and head performance deliver up to 2,500 GPM, with a head range up to 200 ft, enabling efficient long-distance material transport.
- Excavator-mounted design enables precise dredging, cutting, and pumping directly at the source, eliminating the need for separate dredge platforms.
- Hydraulic-driven operation integrates seamlessly with excavator auxiliary hydraulics or external power units for flexible jobsite deployment.
- Heavy-duty construction is built to withstand abrasive wear and continuous operation in mining, industrial, and marine environments.
Gallery
EXF 6000 In Action
Technical Specifications
Performance Specifications
- Flow Rate: 450-2500 GPM
- Head Range: Up to 200 ft
- Maximum Speed: 1800 RPM
- Solids Handling: Up to 5 inches
- Solids Concentration: 40-70 %
- Production Rate: 150 – 200 yd³/hr
Hydraulic Requirements
- EDDY Pump Circuit: 57 GPM at 5000 PSI (180cc motor)
- Cutter head Circuit: 12-18 GPM at 5000 PSI (1340cc motor)
- Requires 6” hydraulic lines and discharge hose plumbed to the boom end
- Includes a crossover check valve for motor and rotor protection
Excavator Compatibility
- Carrier Weight: 20 – 45 tons/ 18,000 – 40,000 kg
- Operates via excavator auxiliary power or external hydraulic power unit
Dimensions and Construction
- Overall Weight (without attachments): 4,800 lbs (2,177 kg)
- Suction Size: 8 inch
- Discharge Size: 6 inch
- Rugged steel construction for high-abrasion environments
Optional Accessories
- Standard or extended cutter heads
- Self-cleaning head and liner-safe wheels
- Water jetting ring and auger head options
- Magnetic flow meter, discharge pressure gauge, and quick-prime valve
- Re-circulation system for pre-mixing applications
EDDY Pump – 6 Inch HD 6000 Heavy Duty Slurry Pump – Pump Curve
PUMP CURVE
The pump curve for the 6-Inch EXF 6000 is based on water performance at a standard operating speed and illustrates the relationship between flow rate and total dynamic head. Actual performance will vary depending on material density, solids concentration, particle size, and discharge distance. For accurate sizing and maximum efficiency, project-specific material details should be reviewed to generate a custom pump curve.
ENGINEERING ASSETS
Technical Drawings & Resources
Excavator Attachment Comparison
| Specification | 6-Inch EXF 6000 | ||||
|---|---|---|---|---|---|
| Min Flow (GPM) | 250 | 450 | 1,400 | 1,600 | 2,600 |
| Max Flow (GPM) | 1,200 | 2,500 | 3,600 | 5,000 | 7,300 |
| Head Range (ft) | Up to 160 | Up to 200 | Up to 230 | Up to 240 | Up to 180 |
| Discharge Size | 4 in | 6 in | 8 in | 10 in | 12 in |
| Suction Size | 6 in | 8 in | 10 in | 12 in | 14 in |
| Solids Handling | Up to 3 in | Up to 5 in | Up to 7 in | Up to 9 in | Up to 11 in |
| Max Speed (RPM) | 1,800 | 1,800 | 1,200 | 1,200 | 900 |
| Percent Solids | 40–70 % | 40–70 % | 40–70 % | 40–70 % | 40–70 % |
| Production Rate (yd³/hr) | 75–150 | 150–200 | 250–300 | 300–350 | 500–600 |
| Pump Circuit Flow | 35 GPM @ 5,000 PSI (80 cc motor) | 57 GPM @ 5,000 PSI (180 cc motor) | 120 GPM @ 5,000 PSI (500 cc motor) | 120 GPM @ 5,000 PSI (500 cc motor) | 160 GPM @ 5,000 PSI (700 cc motor) |
| Cutter head Circuit Flow | 12–18 GPM @ 5,000 PSI (1340 cc motor) | 12–18 GPM @ 5,000 PSI (1340 cc motor) | 20–28 GPM @ 5,000 PSI (2150 cc motor) | 20–28 GPM @ 5,000 PSI (2150 cc motor) | 20–28 GPM @ 5,000 PSI (2150 cc motor) |
| Excavator Carrier Weight Requirement | 20–45 tons (18,000–40,000 kg) | 20–45 tons (18,000–40,000 kg) | 60–94 tons (54,400–85,000 kg) | 60–94 tons (54,400–85,000 kg) | 60–94 tons (54,400–85,000 kg) |
| Overall Weight (without optional equipment) | 3,300 lbs (1,496 kg) | 4,800 lbs (2,177 kg) | 6,800 lbs (3,084 kg) | 7,500 lbs (3,400 kg) | 9,500 lbs (4,310 kg) |
| Frame + Elbow + Cutter head Only | 1,700 lbs (771 kg) | 1,800 lbs (816 kg) | — | — | — |
| Solids Applications | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Tailings, Grit, Sand Mixtures |
| Power Options / Design | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives | Non-clog design for high viscosity & abrasives |
Multi-Industry Applications
Mining
The EXF 6000 is designed for continuous operation in mining environments where abrasive slurries, heavy solids, and variable material conditions are common. It supports applications such as tailings removal, pit dewatering, and reclaim operations by pumping dense material directly from the source, reducing wear on auxiliary equipment, and improving overall production efficiency.
Dredging and Marine Construction
This pump attachment is ideal for maintenance dredging, port expansion, and marine infrastructure projects where access is limited or precision is critical. Mounted directly on the excavator boom, it enables operators to cut, agitate, and pump material in a single step while maintaining control in shallow-water and near-shore environments.
Oil and Gas
In upstream and midstream operations, the EXF 6000 handles drilling muds, tank bottoms, and oily slurries that conventional pumps struggle to handle. Its high solids tolerance supports reliable transfer of thick, debris-laden fluids during pit cleanouts, site maintenance, and remediation activities.
Sand and Aggregates
For sand mining and aggregate processing, the pump efficiently transfers sand slurries, mixed fines, and settled material from ponds or excavation zones. High-flow performance enables consistent throughput while reducing dependence on mechanical handling systems and minimizing material spillage.
Industrial Sludge and Wastewater
The EXF 6000 is commonly used in industrial facilities for sludge removal, basin cleanouts, and process waste transfer. Its ability to handle high-solids concentrations enables facilities to maintain cleaner systems, reduce downtime, and simplify maintenance routines.
Chemical and Process Industries
In chemical processing environments, the pump supports the movement of high-specific-gravity, corrosive slurries without the tight clearances that can cause rapid wear. This makes it suitable for transferring aggressive materials while maintaining stable flow and reducing maintenance frequency.
Paper and Pulp
Paper and pulp operations benefit from the pump’s capability to move fiber-rich slurries, rejects, and waste streams without clogging. This improves process reliability during cleaning cycles, lagoon dredging, and waste-handling operations involving fibrous materials.
Environmental Remediation
The EXF 6000 is used in environmental projects for sediment removal, recovery of contaminated materials, and lagoon rehabilitation. Precise excavator control, combined with high-solids pumping, helps operators meet project timelines while supporting environmental compliance and site safety.
Steep Slope Excavation Dewatering on a Remote Infrastructure Project
Case Study
The Problem
A contractor was responsible for constructing a roadway and buried utilities along a steep hillside where groundwater seepage and saturated soils were present throughout the excavation zone. Conventional dewatering pumps could not be safely staged on the slope, and creating temporary sumps weakened already unstable ground. Frequent pump relocations slowed progress, increased labor hours, and introduced safety concerns for crews working in confined and uneven terrain.
The Solution
The EDDY Pump’s EXF 6000 Excavator Dredge Pump Attachment was mounted directly to the excavator, allowing operators to cut into saturated material, agitate compacted soil, and pump slurry simultaneously. By drawing material directly from the active excavation face, the system eliminated the need for separate dewatering setups. Slurry was pumped uphill through a long discharge line to a controlled disposal area located on stable ground, keeping the work zone clear and accessible.
The Result
Excavation and dewatering were completed as a single, continuous operation, enabling crews to maintain steady production despite challenging ground conditions. Equipment movements were significantly reduced, site safety improved, and project timelines were shortened by eliminating downtime associated with pump repositioning and temporary sump construction.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Frequently Asked Questions
What materials can the EXF 6000 handle?
The EXF 6000 is designed for abrasive and high-density slurries, including sand, tailings, sludge, drilling mud, grit, and mixed solids. It handles particle sizes up to 5 inches and solids concentrations between 40 and 70 percent without clogging.
How does the EXF 6000 differ from conventional dredge pumps?
Unlike stationary or barge-mounted pumps, the EXF 6000 mounts directly on an excavator boom. This allows operators to cut, agitate, and pump material in one motion, removing the need for separate dredge platforms, sumps, or repositioning of auxiliary pumps.
What flow and head performance can I expect?
The pump delivers between 450 and 2,500 GPM with a head range up to 200 feet. Actual performance varies based on slurry density, solids concentration, discharge distance, and hose configuration.
What size excavator is required to run this attachment?
The EXF 6000 is compatible with excavators in the 20 to 45 ton range. It can operate using the machine’s auxiliary hydraulics or an external hydraulic power unit when additional flow is required.
Can it operate in shallow water and confined areas?
Yes. Because it is excavator-mounted, the pump excels in shallow water, tight access zones, and near-shore environments where floating dredges cannot operate. The operator maintains precise control over cutting depth and material intake.
Does the pump require pre-screening of material?
No. The large internal passages allow solids up to 5 inches to pass through, reducing or eliminating the need for pre-screening. This simplifies setup and improves productivity in mixed-material environments.
How is the EXF 6000 protected from damage during operation?
The system includes a crossover check valve for motor and rotor protection. Its non-clog design, heavy-duty construction, and abrasion-resistant components are engineered for continuous operation in harsh environments.
What hydraulic flow is needed to operate the pump and cutter head?
The pump circuit requires 57 GPM at 5,000 PSI, while the cutter head circuit requires 12 to 18 GPM at 5,000 PSI. The system uses 6-inch hydraulic lines and a discharge hose routed along the boom.
What optional accessories are available?
Options include standard or extended cutter heads, liner-safe wheels, self-cleaning heads, water jetting rings, auger heads, magnetic flow meters, discharge pressure gauges, quick-prime valves, and recirculation systems for pre-mixing applications.
How do I determine the correct pump curve for my project?
The standard pump curve is based on water performance. For accurate sizing, project-specific details such as material type, solids concentration, particle size, and discharge distance are reviewed to generate a custom pump curve tailored to your application.
