Electric Diver Operated – 4 Inch HD 4000

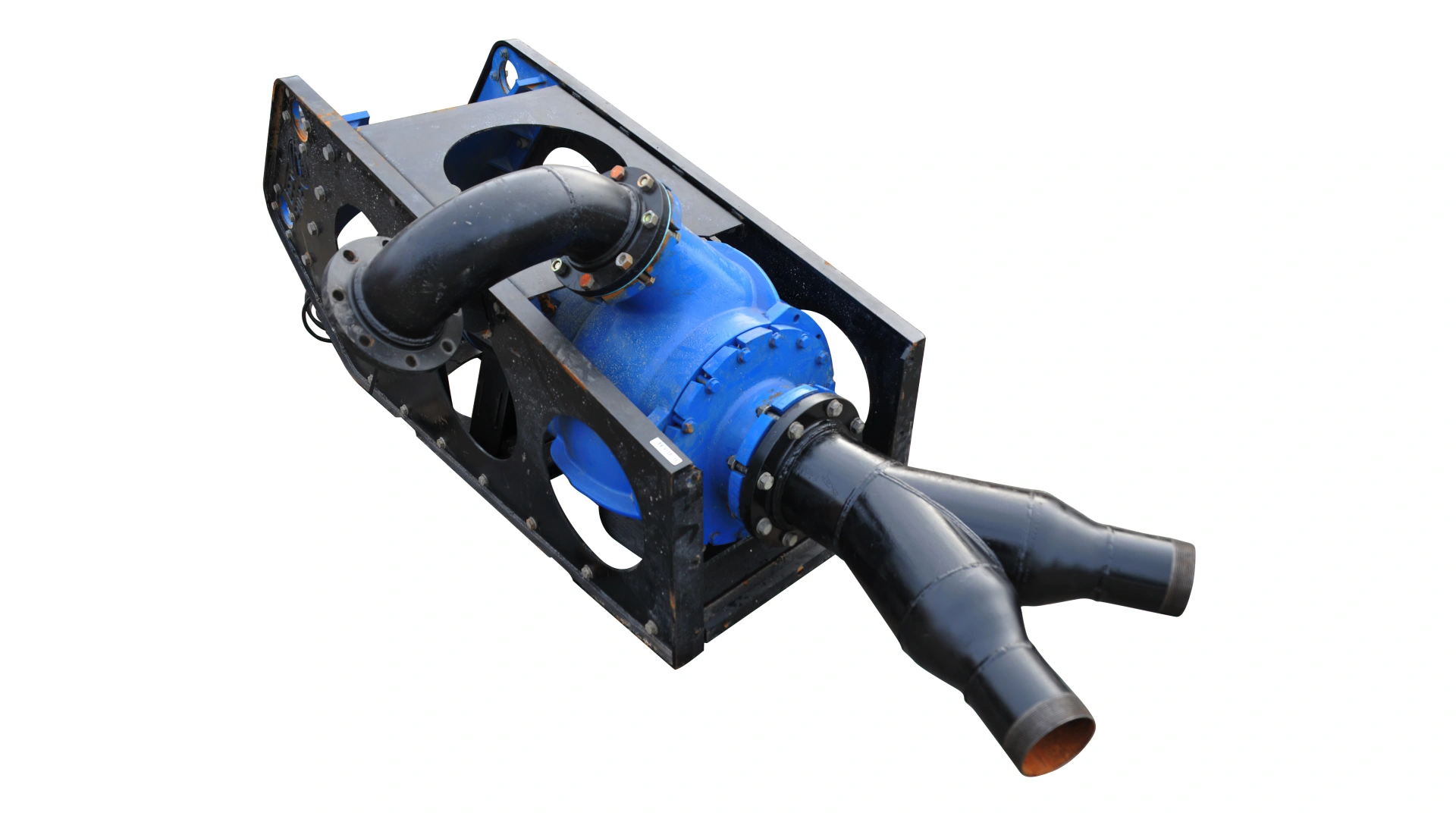

The 4-Inch HD 4000 Electric Diver-Operated Pump is a high-performance dredging solution designed for heavy-duty underwater operations. Engineered to handle high solids, this electric diver-operated 4-inch dredge pump ensures efficient material transfer in harsh environments like mining, construction, and wastewater plants.
Key Features
- Patented non-clogging design ideal for high-solids slurry and sludge
- Diver-operated for precise underwater dredging
- Electric-powered system for reduced emissions and quiet operation
- Designed for confined, shallow, and submerged environments
- Engineered for high durability in abrasive and corrosive conditions
- Optimized for continuous-duty industrial applications
Key Specifications
Physical Specifications
| Specification | Value |
|---|---|
| Model | 4-Inch HD 4000 Electric Diver Operated Pump |
| Weight (Dry, Without Options) | 2,500 lbs (1134 kg) |
| Discharge Port Size | 4 inch |
| Suction Port Size | 6 inch |
| Fittings | 4" Camlock |
| Length | 2422 mm (95.3 in) |
| Width | 827 mm (32.6 in) |
| Height | 610 mm (24.0 in) |
| Handle Frame Extension (if applicable) | 733 mm (28.9 in) |
Performance Specifications
| Specification | Value |
|---|---|
| Minimum Flow Rate | 250 GPM |
| Maximum Flow Rate | 1200 GPM |
| Head Range | Up to 160 ft |
| Solids Handling Capacity | Solids up to 3 inches |
| Slurry Concentration | Up to 40–70% solids |
| Material Production Rate | 75–150 cubic yards per hour |
Production rates depend on slurry density; flow range refers to hydraulic flow, not material volume.
Recommended Accessories
- Doppler Wireless Slurry Flow Meter for real-time flow monitoring and optimization
- Diver communication systems for operational safety
- Control panels and VFDs for electrical tuning (project-specific)
- Hose floats, clamps, and quick-disconnect couplings
Required Equipment
- Generator with 225KW or greater output (electric power source)
- 4” material handling suction and discharge hoses
- Certified diver or underwater operator for handling the pump
Gallery
4-inch Electric Diver Operated in
real world applications
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
We are one of the few companies who manufactures both our pumps and dredging equipment to ensure optimal support.
EDDY Pump – 4 Inch– Pump Curve
Pump Curve
The pump curve for the 10-inch 550-HP self-priming pump defines high-volume, high-head performance for extreme solids handling. It is used to confirm operating points when moving large debris and dense slurry at scale, ensuring the pump remains within its optimal efficiency window during continuous, heavy-duty industrial operation.
Technical Drawings
4-inch Vs 6-inch Pump Model Comparison
| Model | 4-Inch HD 4000 Electric Diver Operated | 6-Inch HD 6000 Electric Diver Operated |
|---|---|---|
| Pump Type | Electric Diver Operated | Electric Diver Operated |
| Overall Weight (lbs) | 2500 | 3800 |
| Overall Weight (kg) | 1134 | 1724 |
| Power Requirement | Generator 225KW or greater | Generator 225KW or greater |
| Discharge Size | 4 inch | 6 inch |
| Suction Size | 6 inch | 8 inch |
| Min Flow (GPM) | 250 | 450 |
| Max Flow (GPM) | 1200 | 2500 |
| Head Range (ft) | 160 | 200 |
| Solids Handling (inches) | 3 | 5 |
| Percent Solids | 40-70% | 40-70% |
| Production Rate (yd³/hr) | 75-150 | 150-200 |
The Best Non-Clog and High Solids Slurry Pump on the Market. Since 1984.
We manufacture both pump and dredge equipment for maximum compatibility
Applications
Submersible Dredging in Confined and Shallow Environments
Marine Construction and Port Maintenance
Wastewater Treatment and Industrial Lagoons
Mining and Mineral Processing Pits
Environmental Remediation Projects
Power Generation and Industrial Plants
Emergency Response and Rapid Deployment
Tailings Pond Reclamation in a Remote Mining Operation
Case Study
The Challenge: Extreme Conditions in Remote Locations
A leading mining operation in the Western U.S. faced severe accumulation of dense, abrasive tailings in a remote process pond. The pond was critical for ongoing operations but had become heavily clogged with high-solids slurry, making access difficult for conventional mechanical dredging. Compounding the issue was limited accessibility and diver safety concerns due to the compact, sediment-heavy environment.
The Solution
To address this issue, the project team deployed the DEP-4000 Electric Diver Operated Dredge, utilizing its high-solids handling capabilities and non-clog design. The setup included:
- A 6-inch suction hose for optimal intake
- Doppler Wireless Slurry Flow Meter to ensure stable, plug-free flow throughout operations
- A 225 kW electric generator to power the dredge
The diver operated the suction hose manually, allowing for:
- Precision targeting of sediment layers
- Real-time adjustments to suction angle and depth
- Continuous monitoring of flow rates to prevent clogging and optimize output
The Result
The operation delivered highly effective results:
- Achieved consistent flow rates between 700 to 1000 GPM, translating to 50–100 cubic yards per hour
- Handled up to 70% solids by volume, outperforming traditional pumps in similar environments
- Completed full-scale dredging of the pond in under two weeks
Key Benefits
- Reduced the number of divers and support crew needed on-site
- Minimized fuel and equipment costs due to electric power
- Eliminated clogging issues common with centrifugal pumps
- Lowered environmental impact with precise material removal
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
FAQs
What type of power supply is required for the Electric Diver Operated Pump – 4 Inch?
A generator with a capacity of at least 225 kW is required to operate the HD 4000 diver-operated pump.
What kind of solids can this diver-operated 4-inch dredge pump handle?
It can handle solids up to 3 inches and mixtures containing up to 70% solids.
Can the 4-inch diver-operated pump be used in saltwater environments?
Yes, it is constructed with materials suitable for both freshwater and saltwater applications.
How deep can the 4-inch diver dredge pump operate?
It depends on your diver’s operating depth and hose limitations, but the system is designed for submerged operations in tough underwater settings.
Is this pump suitable for continuous operations?
Yes, the 4-inch diver pump electric configuration is engineered for high uptime and demanding industrial applications.
What’s the typical production rate of the HD 4000 diver-operated pump?
It can pump between 75 to 150 cubic yards of material per hour, depending on slurry conditions.
Does this pump require frequent maintenance?
EDDY’s non-clogging design significantly reduces maintenance needs compared to centrifugal pumps.
Can this 4-inch diver-operated pump handle abrasive materials?
Absolutely. It’s designed for abrasive sludge, slurry, and muck.
What accessories are recommended for optimized performance?
We recommend using a Doppler wireless slurry flow meter for real-time monitoring and performance control.
Who installs the diver pump HD 4000 electric system?
Our field team can assist with installation and training, or your dive crew can be trained to install and operate the pump effectively.
