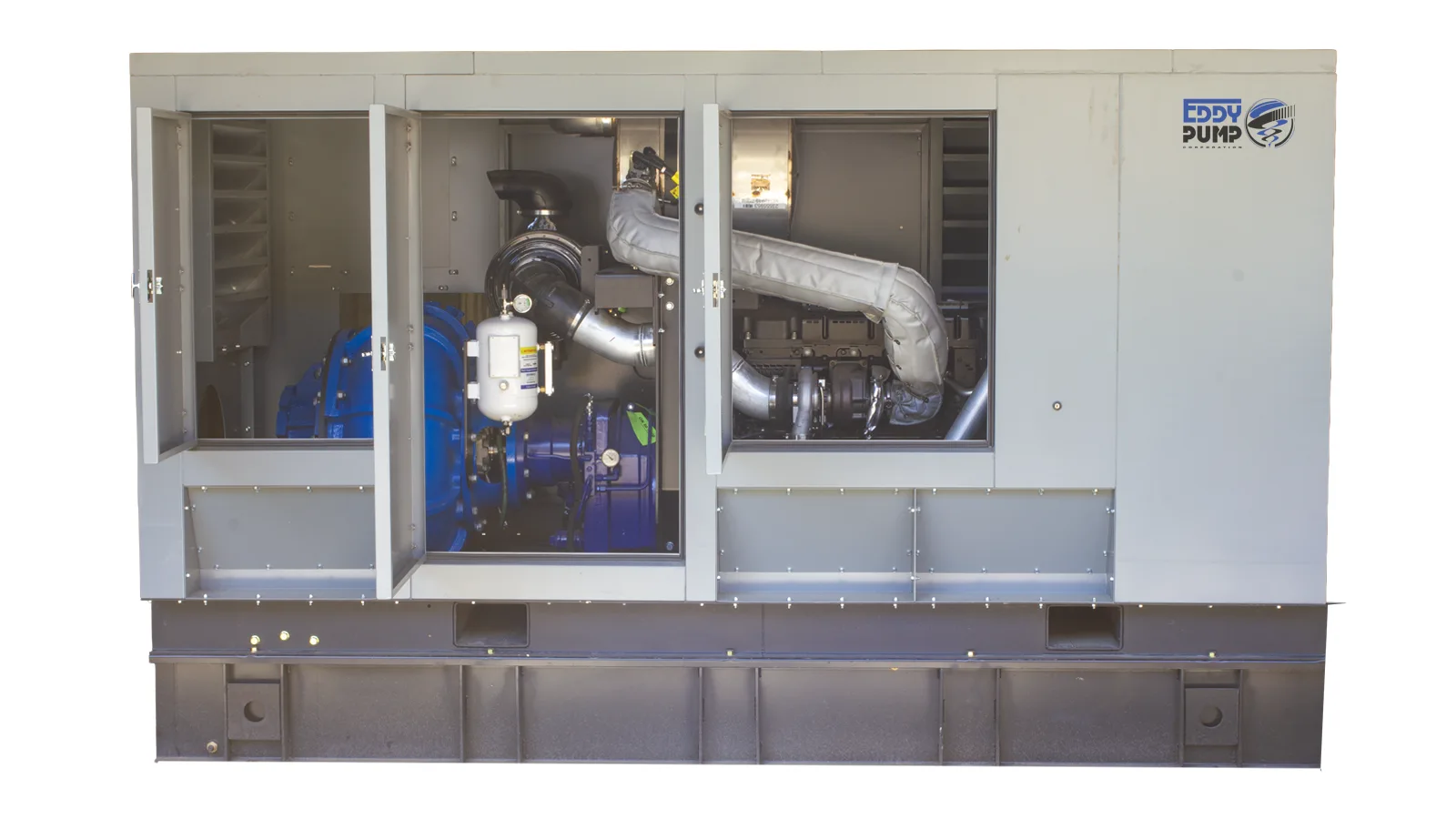

Booster Pump Diesel Powered Direct Drive 150HP – 4-Inch

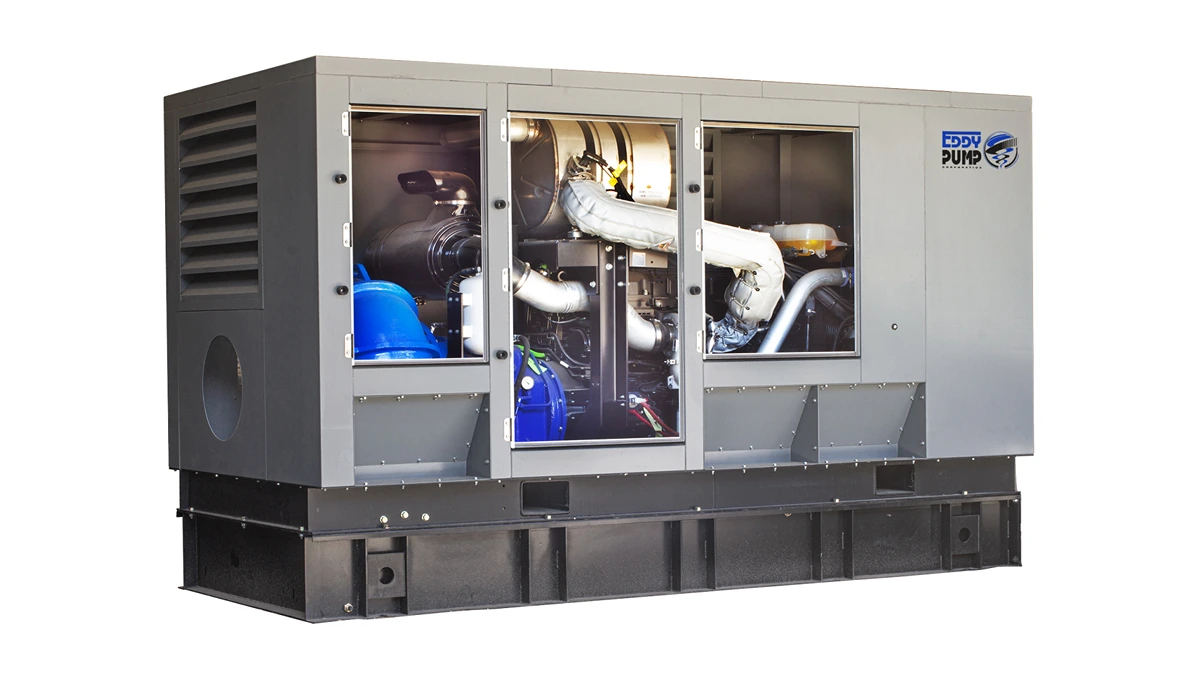

Key Features
- Non-clog slurry pump engineered for high solids, high viscosity, and abrasive applications.
- Handles solids up to 3 inches in diameter
- Capable of pumping 40–70% solids by volume
- Rugged construction: high-chrome, ductile iron, and stainless-steel options
- Dual mechanical seal with self-contained flushing system for extended seal life
- Compact 4-inch discharge with high efficiency for dredging and slurry operations
- Production capacity of 75–150 yd³/hr, depending on material
Booster Pump Diesel Powered Direct Drive 150HP – 4-Inch
Technical Specifications
Performance Specifications
- Minimum Flow: 250 GPM
- Maximum Flow: 1200 GPM
- Head Range: Up to 160 ft
- Motor Speed: 1800 RPM
- Solids Handling: Up to 3 in
- Percent Solids: 40–70%
- Production Rate: 75–150 yd³/hr
Physical Specifications
- Model: HDX 4000 with 150 HP Diesel Engine
- Discharge Size: 4 in
- Suction Size: 6 in
- Rotor Material: High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless (options available)
- Volute Casing: High Chrome 28%, Ductile Iron, Stainless Steel, Duplex Stainless (options available)
- Shaft: Chromoly or Stainless Steel
- Mechanical Seal: Dual Tungsten or Silicon Carbide with seal flush system
- Bearing Housing: Ductile Iron or Stainless Steel
Required Equipment
- Diesel engine (150 HP, included with unit)
- Suction and discharge pipeline compatible with 6″ suction and 4″ discharge
Recommended Accessories
- Pipeline and Hose Assemblies – for optimized slurry transport
- Auxiliary Fuel Tank – for extended operational runtime
- Spare Seal Kit – to minimize downtime during maintenance
- Custom Material Upgrades – stainless steel or duplex metallurgy for corrosive environments
PUMP CURVE
The pump curve for the HDX 4000 Diesel Booster Pump shows the relationship between flow and head when boosting abrasive slurry through pipelines. It helps operators select operating points that deliver up to 1200 GPM while maintaining pressure over long distances, avoid inefficient low flow conditions, and reduce wear when handling high solids slurry at 1800 RPM.
Comparison Table
| Specification | HDX 4000 – 4-Inch | HDX 6000 – 6-Inch | HDX 8000 – 8-Inch | HDX 10000 – 10-Inch | HDX 12000 – 12-Inch |
|---|---|---|---|---|---|
| Engine Power | 150 HP Diesel | 325 HP Diesel | 550 HP Diesel | 550 HP Diesel | 700 HP Diesel |
| Min Flow | 250 GPM | 450 GPM | 1400 GPM | 1600 GPM | 2600 GPM |
| Max Flow | 1200 GPM | 2500 GPM | 3600 GPM | 5000 GPM | 7300 GPM |
| Head Range | Up to 160 ft | Up to 200 ft | Up to 230 ft | Up to 240 ft | Up to 180 ft |
| Discharge Size | 4 in | 6 in | 8 in | 10 in | 12 in |
| Suction Size | 6 in | 8 in | 10 in | 12 in | 14 in |
| Solids Handling | Up to 3 in | Up to 5 in | Up to 7 in | Up to 9 in | Up to 11 in |
| Motor Speed | 1800 RPM | 1800 RPM | 1200 RPM | 1200 RPM | 900 RPM |
| Percent Solids | 40–70% | 40–70% | 40–70% | 40–70% | 40–70% |
| Production Rate | 75–150 yd³/hr | 150–200 yd³/h | 250–300 yd³/hr | 300–350 yd³/hr | 500–600 yd³/hr |
| Applications | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash |
| Fluids Pumped | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures |
Industries Served
Mining
Chemical Processing
Sand & Aggregate
Oil & Gas
Paper & Pulp
Power & Utilities (Fly Ash & Coal Ash)
Case Study
The Challenge
A mid-sized mining operation was facing recurring downtime and maintenance costs due to frequent clogging of their conventional slurry pumps. The site required a pumping solution that could handle a high concentration of abrasive solids in mine tailings, while maintaining consistent flow over long discharge distances. The existing equipment could not meet production targets, and the operation needed a reliable booster pump to support uninterrupted slurry transport.
The Solution
EDDY Pump deployed the 4-Inch HDX 4000 Diesel Booster Pump, powered by a 150 HP diesel engine. With its ability to pump 250–1200 GPM, handle up to 3-inch solids, and transport slurries with 40–70% solids content, the pump was perfectly suited for the mine’s requirements. Its high-chrome and stainless-steel construction ensured durability against abrasive materials, while the dual mechanical seal system reduced leakage and extended seal life. The compact 4-inch discharge allowed easy integration into the existing pipeline setup without extensive modifications.
The Result
Once deployed, the high-pressure diesel booster pump 150 HP, delivered consistent production rates of 75–150 cubic yards of material per hour, meeting the site’s output targets. Downtime caused by clogging was virtually eliminated, reducing maintenance interventions and labor costs. The reliability of the 4-Inch booster pump 150 HP not only improved overall efficiency but also extended equipment service life, resulting in measurable cost savings. The operation was able to transport abrasive tailings with improved efficiency, achieving steady performance and significantly lowering operating expenses.
Frequently Asked Questions
What is the maximum flow capacity of the 4-Inch HDX 4000 Diesel Booster Pump?
The booster Pump 150 HP Diesel can deliver up to 1200 gallons per minute (GPM), making it suitable for medium-scale dredging, slurry transport, and mining operations where consistent flow is critical.
How much solids can this pump handle?
The diesel-powered booster pump 150 HP, is designed to pump slurries with 40–70% solids content and can handle solid objects up to 3 inches in diameter without clogging. This ensures smooth operation even in abrasive or heavy-duty applications.
What type of engine powers the diesel-powered booster Pump 150 HP?
This model is equipped with a 150 HP diesel engine, offering reliable, fuel-efficient performance in remote or off-grid job sites where electric power may not be available.
What are the typical applications for this booster pump?
The 4-Inch Booster Pump 150 HP is widely used in mining, sand and aggregate, chemical processing, oil and gas, pulp and paper, and power utilities. It is particularly effective in moving slurries, mine tailings, drilling muds, fly ash, and abrasive mixtures.
How durable is the pump construction?
The industrial booster pump 150 HP Diesel is built with high-chrome, ductile iron, stainless steel, or duplex stainless steel components. These material options allow customization based on abrasive or corrosive site conditions, ensuring a long service life.
What are the physical specifications of the diesel engine booster Pump 150 HP?
It has a 4-inch discharge and 6-inch suction inlet, runs at 1800 RPM, and is compact enough to integrate into existing pipeline systems with minimal modifications.
What is the typical production rate of this pump?
Depending on material density, the diesel booster pump 4-inch 150 HP can achieve 75–150 cubic yards of material per hour, which helps operators meet demanding production schedules with less downtime.
Does the pump require special sealing or protection systems?
Yes, it comes with a dual mechanical seal system (tungsten or silicon carbide) along with a self-contained flushing system. This design protects the pump from leakage and wear, reducing maintenance needs.
Can the pump be customized for specific site requirements?
Absolutely. The high-pressure diesel booster pump 150 HP can be built with alternative metallurgy (stainless steel, duplex, or high-chrome) and configured to match specific slurry conditions, pipeline requirements, or abrasive challenges.
What accessories are recommended for optimal use?
Operators often pair the direct drive booster pump 150 HP with pipeline and hose assemblies, auxiliary fuel tanks for longer runtime, and spare seal kits. Material upgrades are also recommended when dealing with highly corrosive or acidic slurries.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
