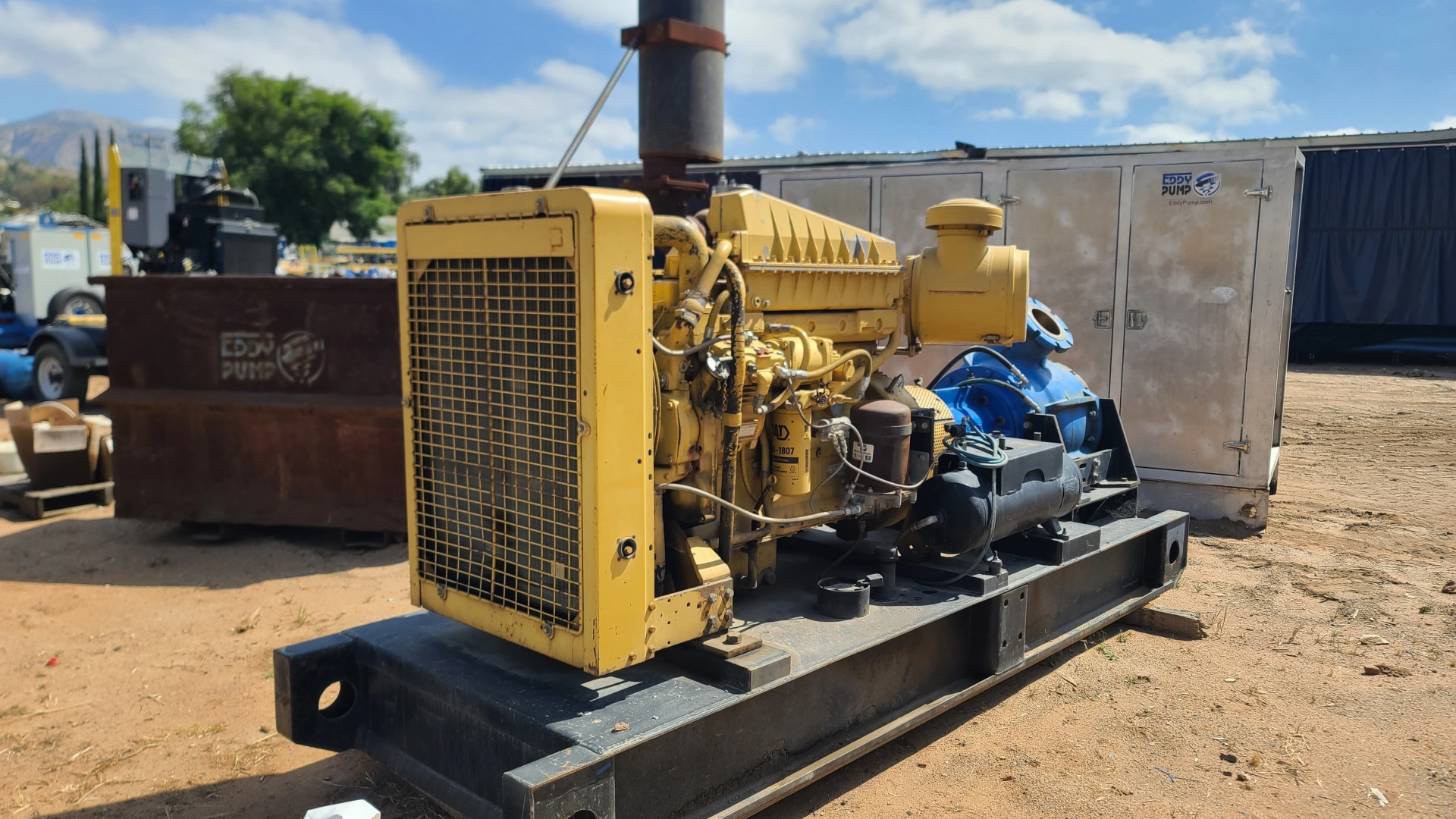

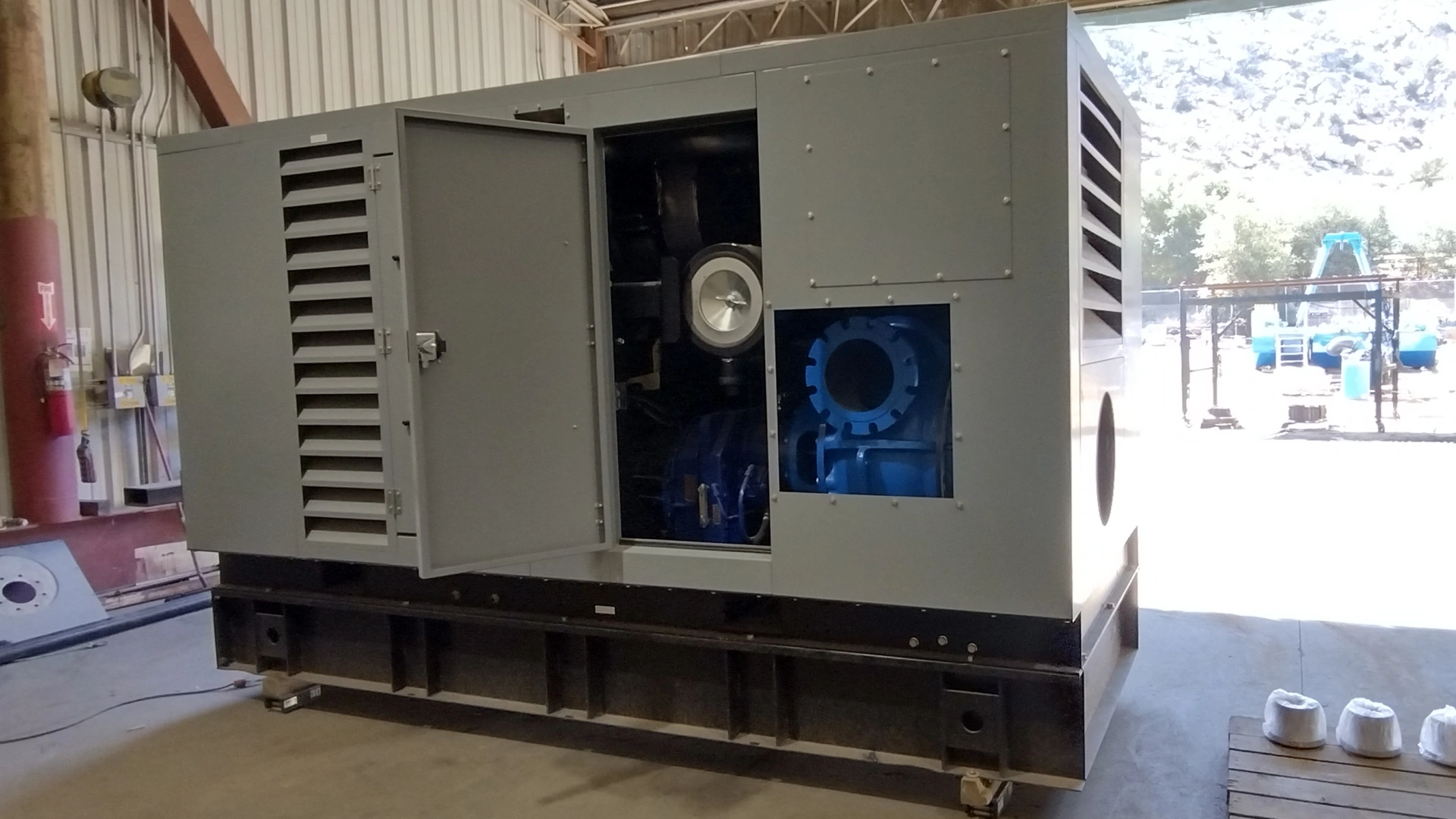

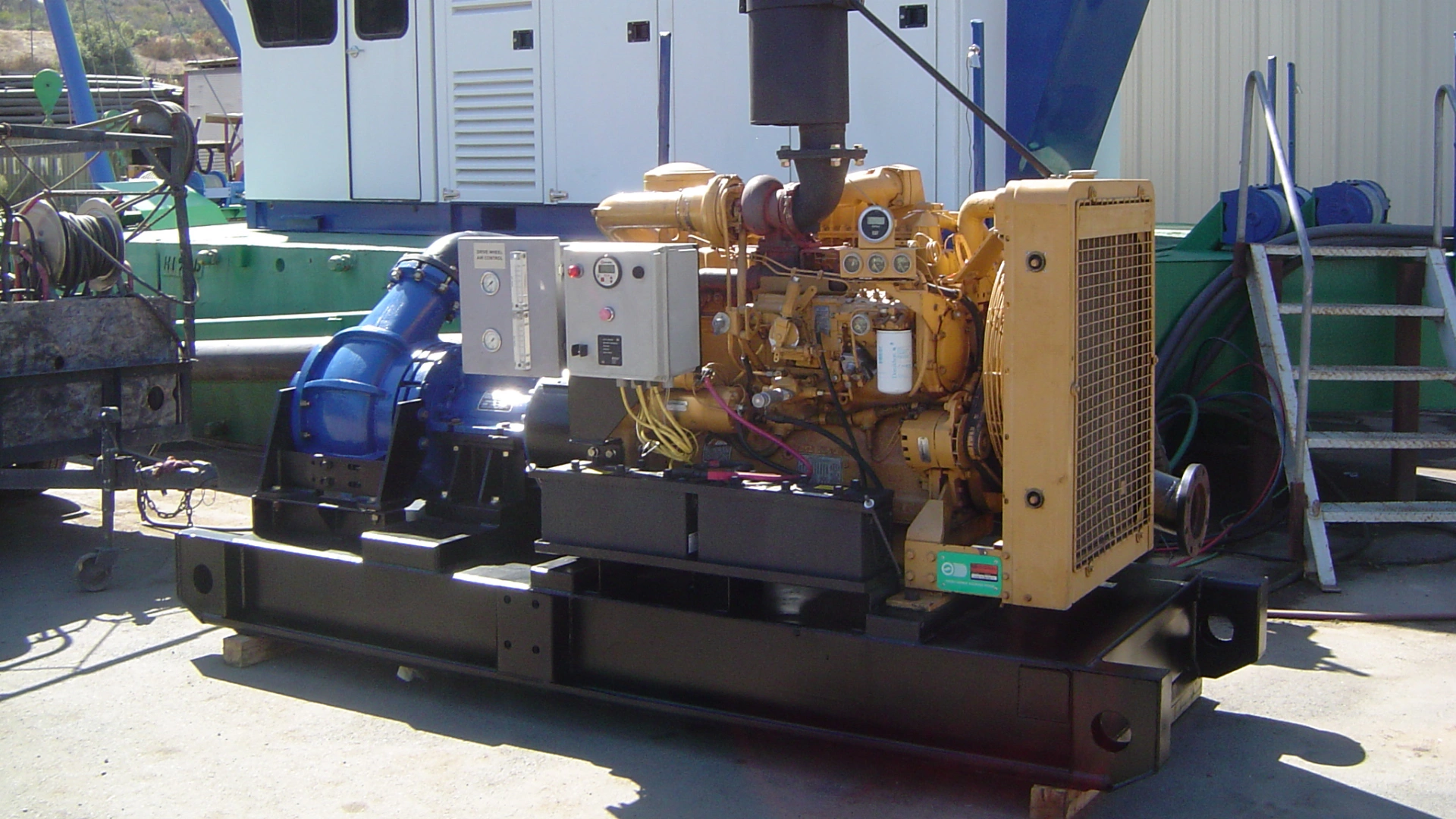

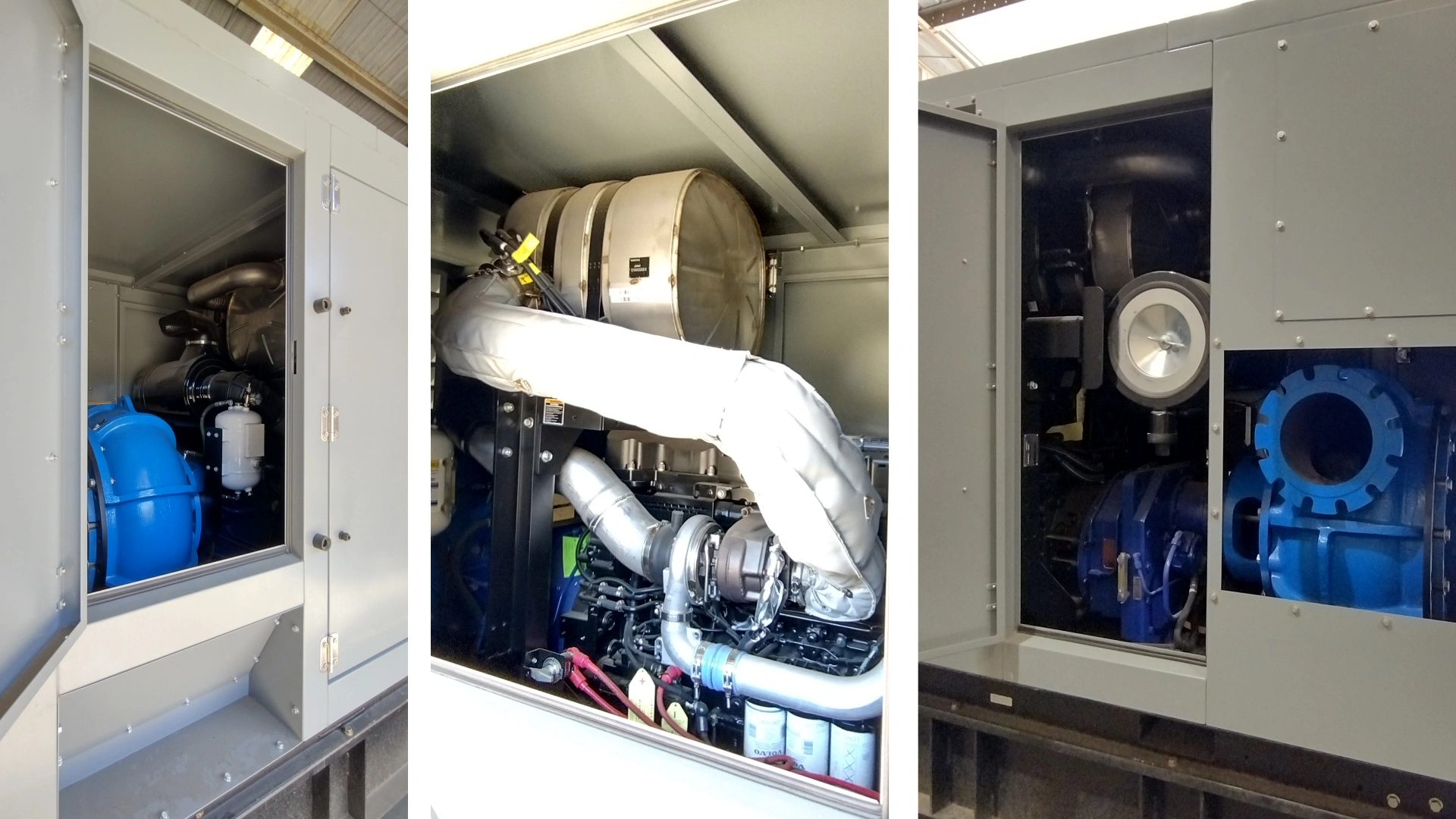

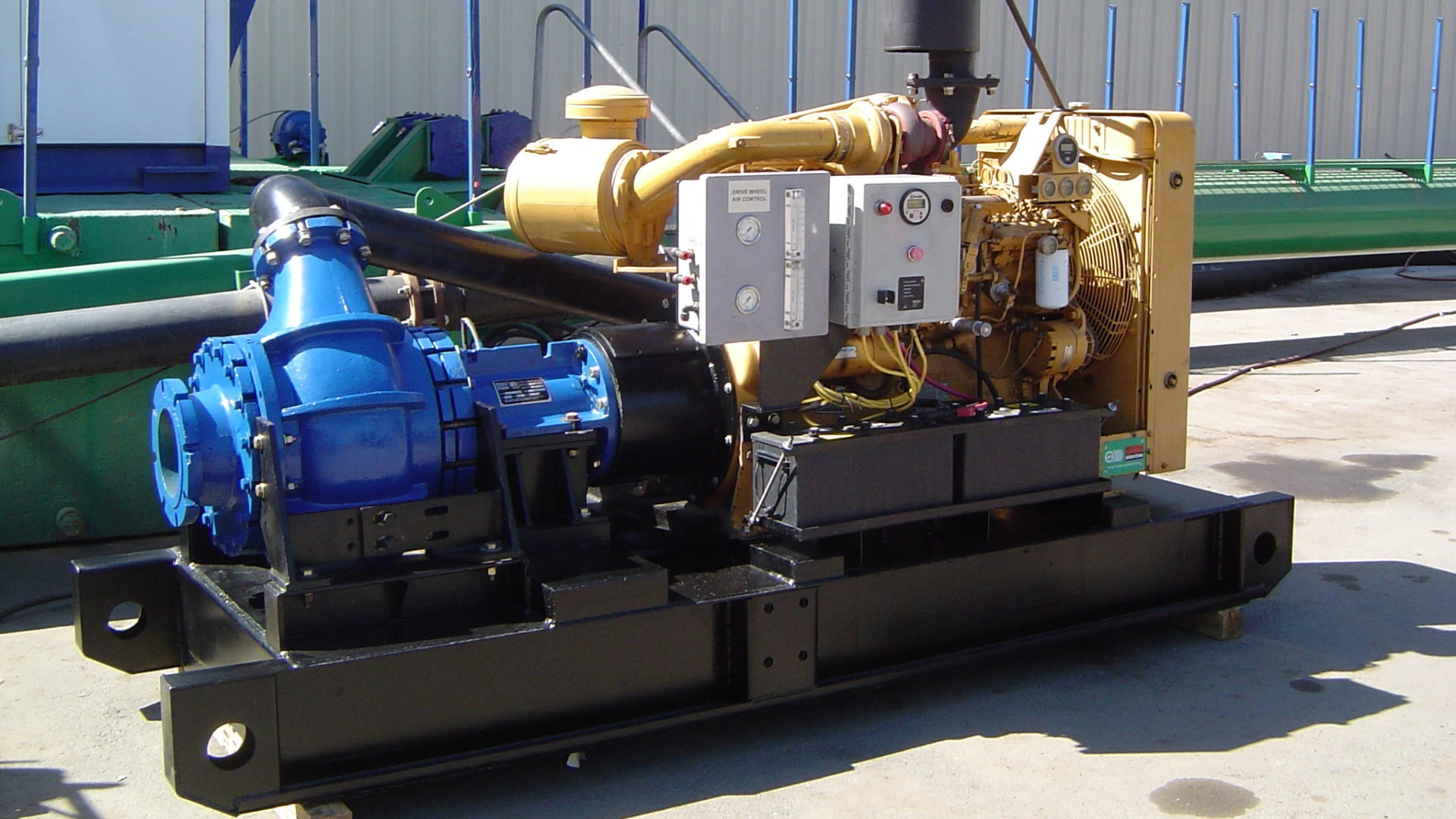

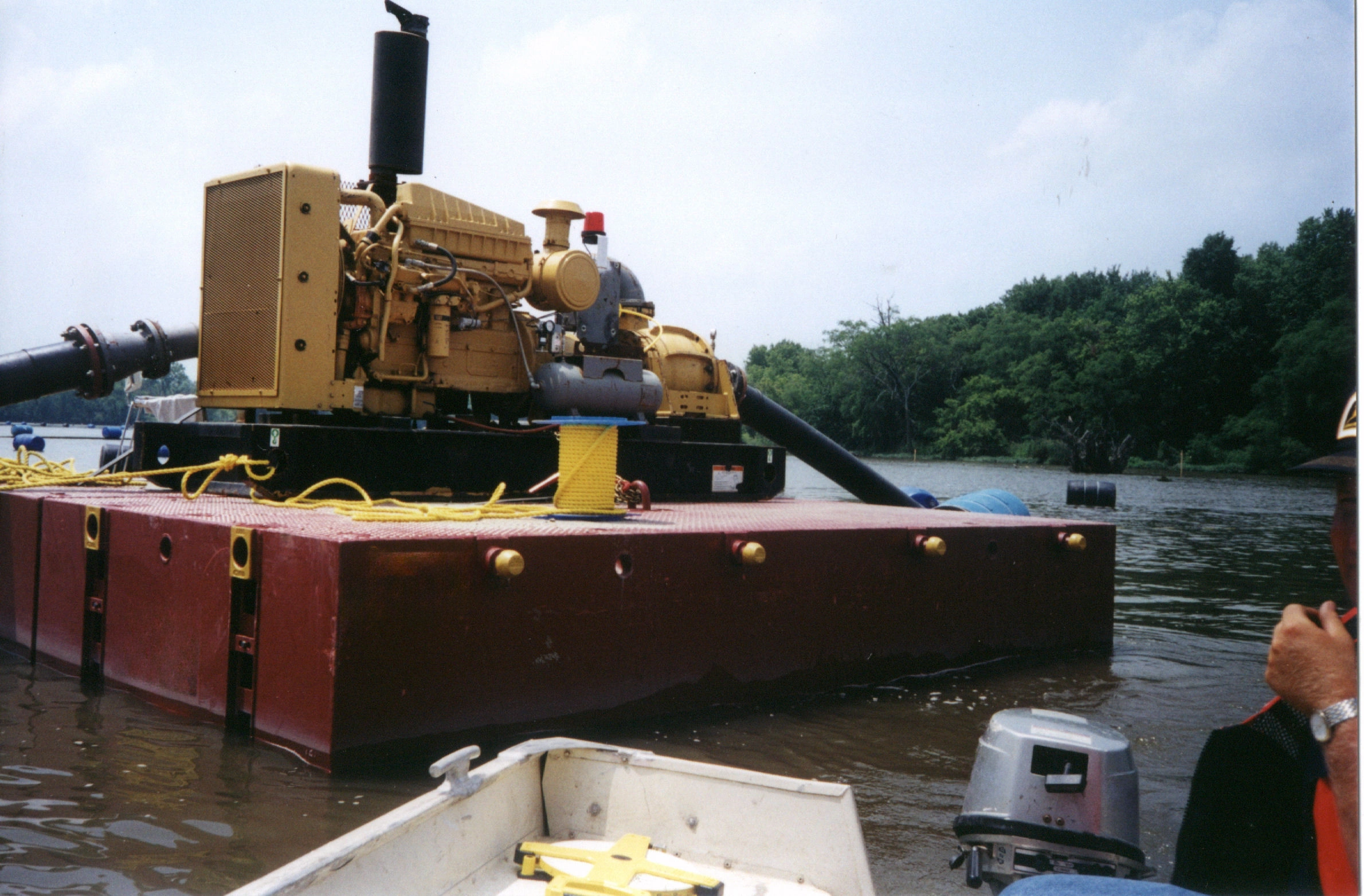

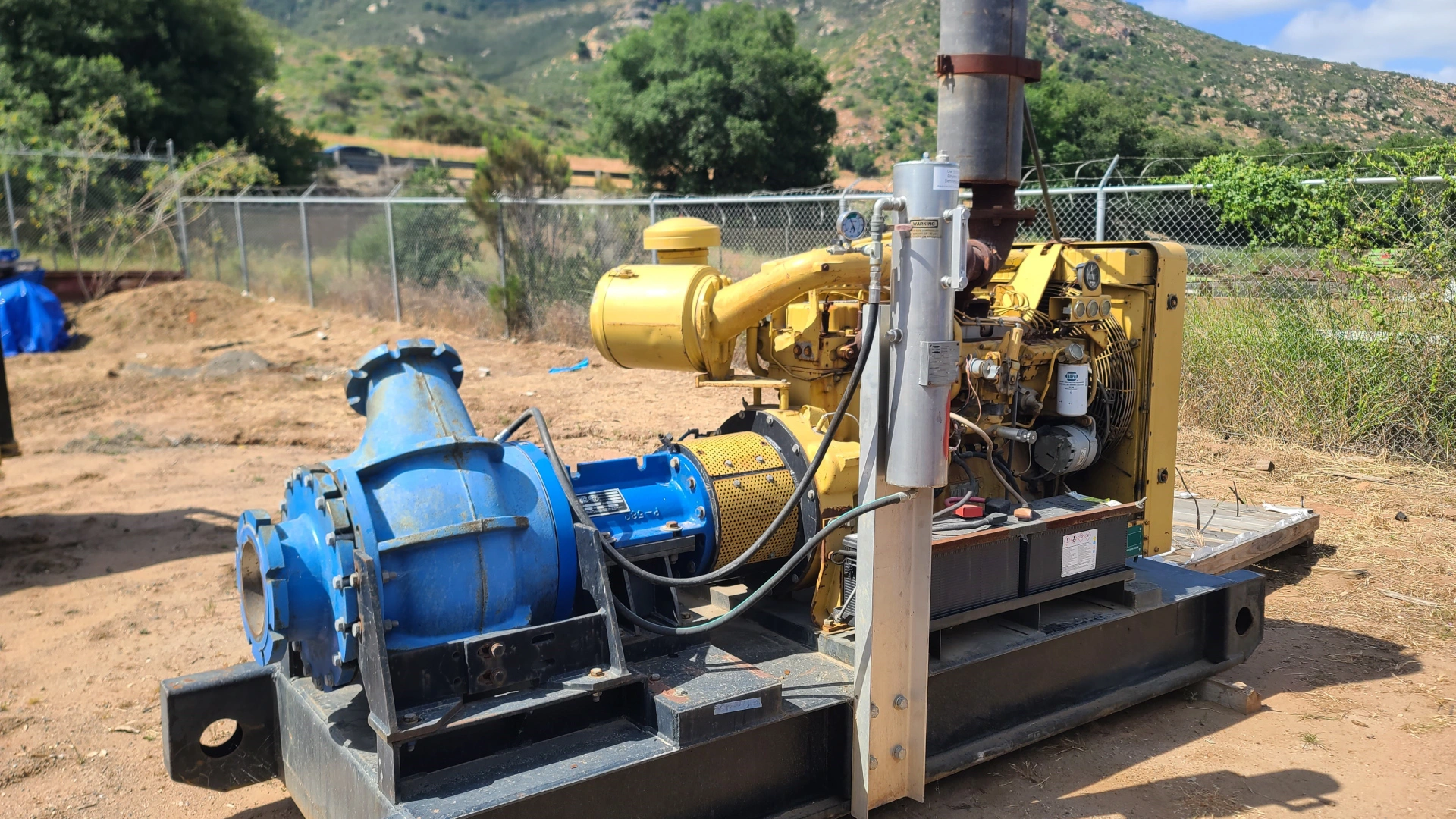

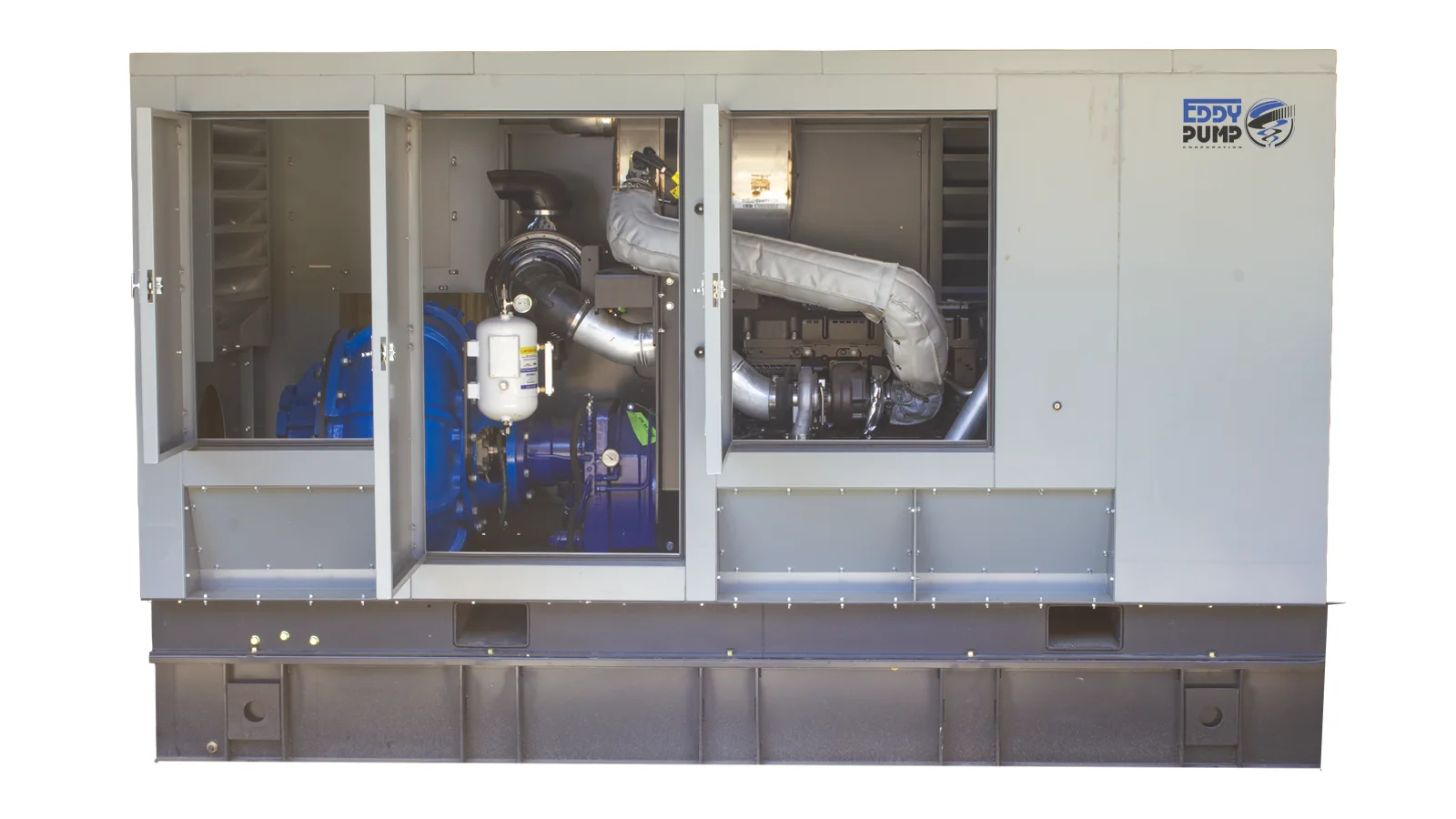

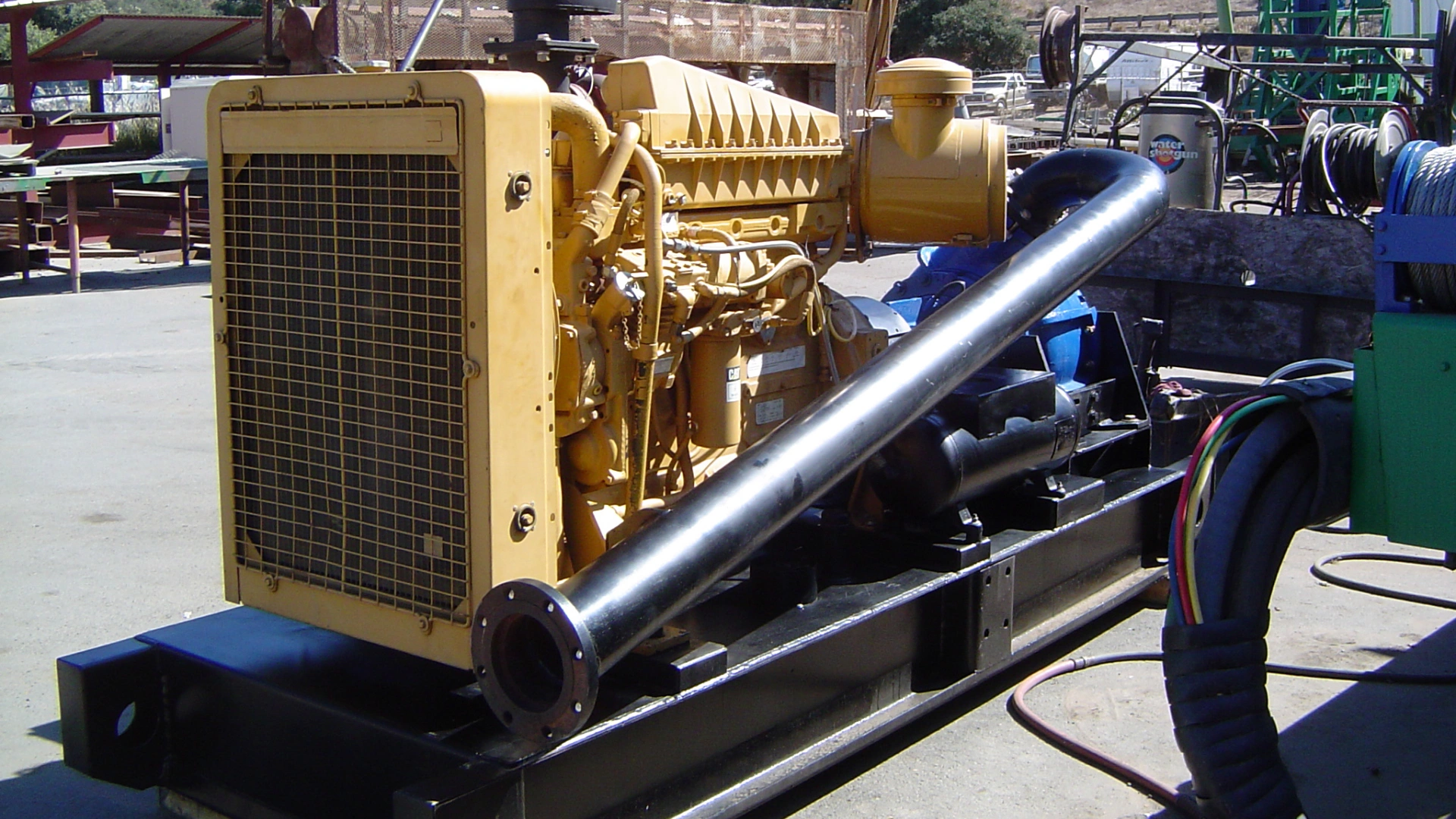

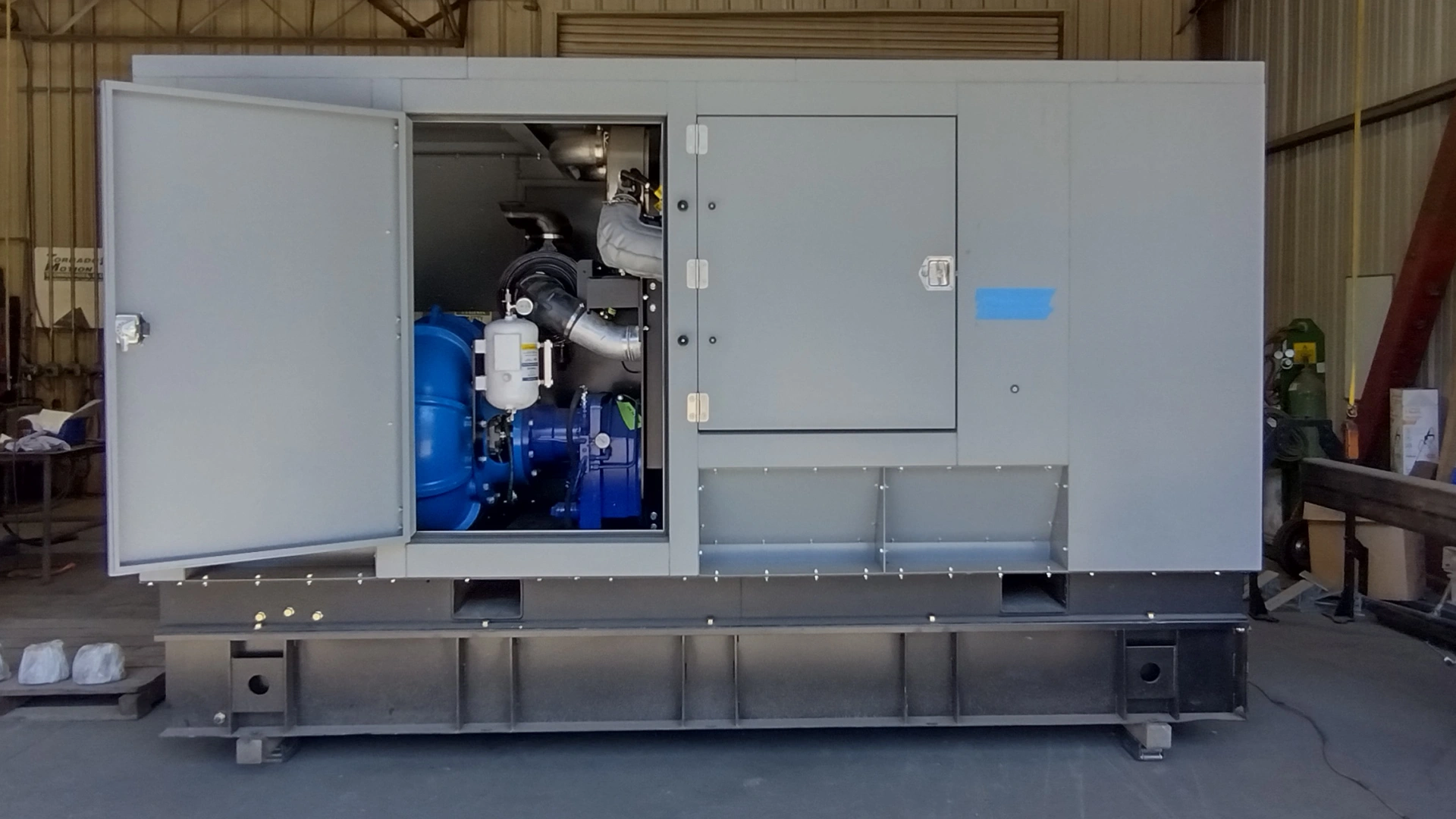

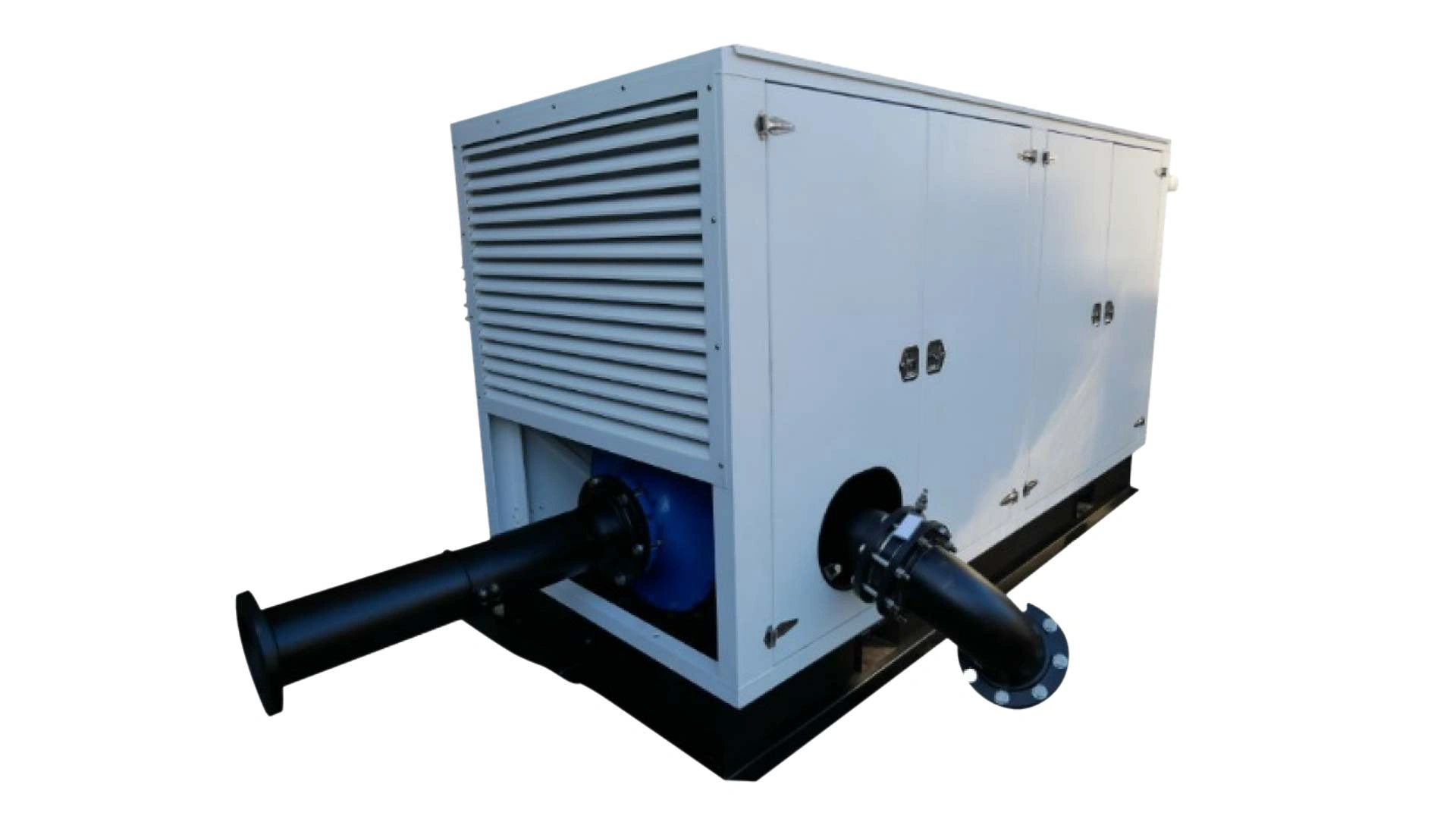

10-Inch 550HP Diesel-Powered Booster Pump

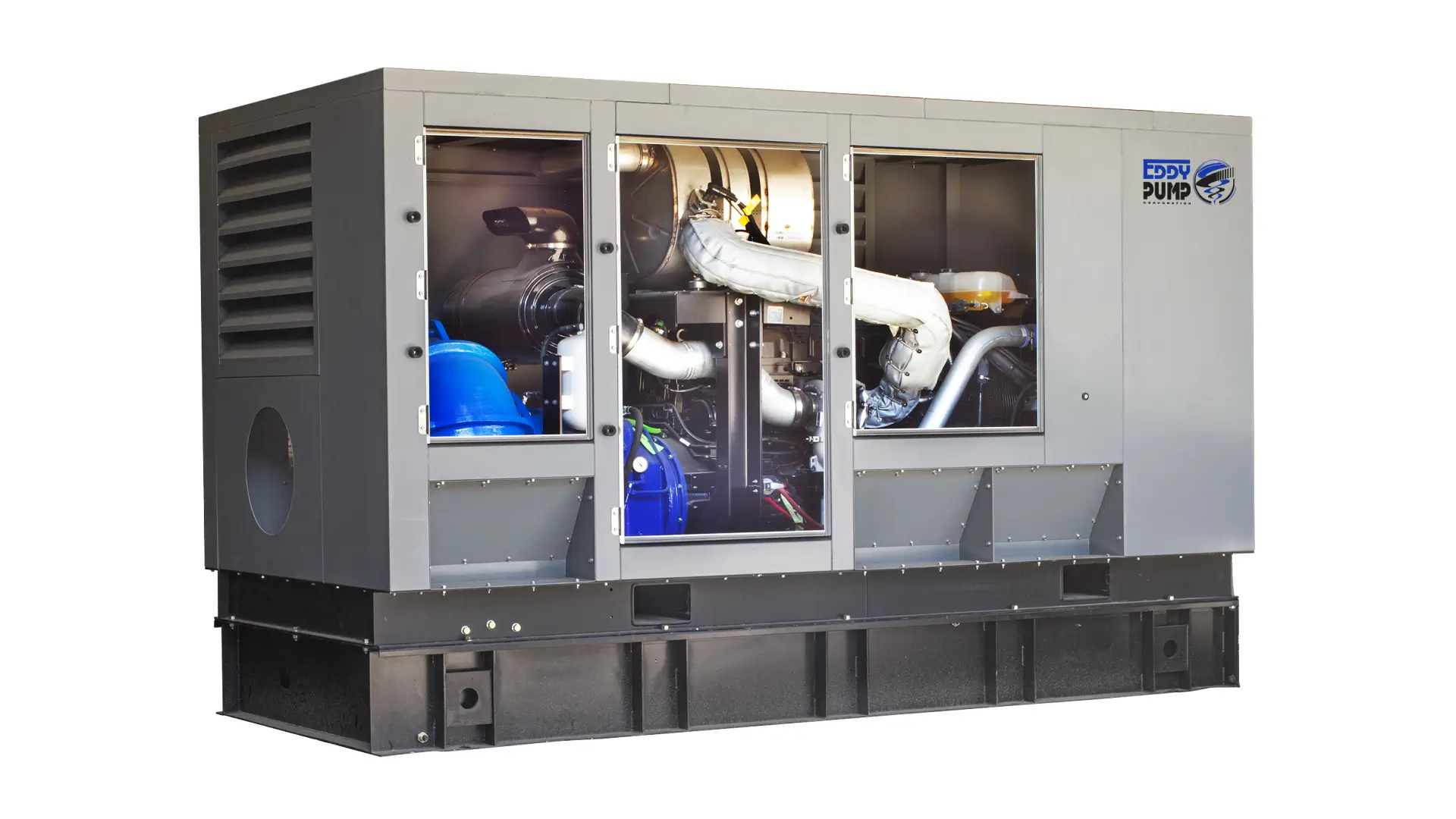

Key Features / Advantages
- Flow range 1,600–5,000 GPM with head up to 240 ft
- Handles 40–70% solids by volume
- Passes solids up to 9 inches in diameter
- Non-clog design for high viscosity, abrasive, and low pH slurries
- Heavy-duty construction with high chrome, stainless, and duplex stainless steel materials
- Boosts slurry transport distance and pipeline efficiency
- Production rate up to 300–350 yd³ material per hour
- Diesel direct drive for continuous heavy-duty pumping operations
- Available in alternative power options for custom applications
10-Inch 550HP Diesel-Powered Booster Pump
Technical Specifications
Pump Performance
- Flow Range: 1,600–5,000 GPM
- Head Range: Up to 240 ft
- Motor Speed: 1200 RPM
- Solids Handling: Up to 9 inches
- Percent Solids: 40–70%
- Production Rate: 300–350 yd³/hr
Pump Construction
- Rotor: High Chrome 28%, Ductile Iron, Stainless, Duplex Stainless (custom metals available)
- Volute Casing: High Chrome 28%, Ductile Iron, Stainless, Duplex Stainless
- Shaft: Chromoly or Stainless Steel
- Mechanical Seal: Dual Tungsten or Silicon Carbide with flushing system
- Bearing Housing: Ductile Iron or Stainless Steel
Power Specs
- Engine: 550 HP diesel-powered direct drive
- Mounting: Skid- or trailer-mounted, depending on project requirements
Standard Configuration
- 10-Inch HDX 10000 EDDY Pump with 550 HP diesel engine
- Heavy-duty skid or trailer frame for mobility and stability
- Integrated lifting bales for safe handling
- Dual mechanical seal with flushing system
- Over-the-road light and tie-down package (if trailer-mounted)
- Monitoring accessories: optional flow gauge, work lights, and performance meters
PUMP CURVE
A pump curve helps show how the DSH-6000 responds to different operating conditions, allowing teams to match system requirements with expected flow and head performance. For this 6 inch dredge sled, using the correct curve confirms the unit will maintain steady slurry movement, handle high solids consistently, and deliver reliable production across shallow water and lagoon dredging applications where controlled, predictable output is essential.
Comparison Table
| Specification | HDX 4000 – 4-Inch | HDX 6000 – 6-Inch | HDX 8000 – 8-Inch | HDX 10000 – 10-Inch | HDX 12000 – 12-Inch |
|---|---|---|---|---|---|
| Engine Power | 150 HP Diesel | 325 HP Diesel | 550 HP Diesel | 550 HP Diesel | 700 HP Diesel |
| Min Flow | 250 GPM | 450 GPM | 1400 GPM | 1600 GPM | 2600 GPM |
| Max Flow | 1200 GPM | 2500 GPM | 3600 GPM | 5000 GPM | 7300 GPM |
| Head Range | Up to 160 ft | Up to 200 ft | Up to 230 ft | Up to 240 ft | Up to 180 ft |
| Discharge Size | 4 in | 6 in | 8 in | 10 in | 12 in |
| Suction Size | 6 in | 8 in | 10 in | 12 in | 14 in |
| Solids Handling | Up to 3 in | Up to 5 in | Up to 7 in | Up to 9 in | Up to 11 in |
| Motor Speed | 1800 RPM | 1800 RPM | 1200 RPM | 1200 RPM | 900 RPM |
| Percent Solids | 40–70% | 40–70% | 40–70% | 40–70% | 40–70% |
| Production Rate | 75–150 yd³/hr | 150–200 yd³/h | 250–300 yd³/hr | 300–350 yd³/hr | 500–600 yd³/hr |
| Applications | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash | Mining, Chemical, Sand & Agg, Oil & Gas, Paper & Pulp, Fly Ash |
| Fluids Pumped | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures | Sludge, Slurry, Drilling Mud, Mine Tailings, Grit, Sand Mixtures |
Industries Served
Dredging
Mining
Oil & Gas
Chemical & Industrial
Sand & Aggregates
Power & Utilities
Agriculture
Environmental Remediation
Municipal Wastewater
Case Study
The Challenge
A coastal reclamation project required moving dredged sand and sediment from the seabed to a designated fill site located nearly four miles inland. The primary dredge pumps lost efficiency over the extended pipeline length, leading to reduced slurry velocity and frequent blockages. Adding multiple smaller booster stations would have significantly increased costs and complicated operations.
The Solution
The project team deployed an EDDY Pump 10-inch 550hp diesel-powered booster pump inline with the dredge system. Capable of handling up to 70% solids and passing 9-inch debris, the booster maintained high slurry velocity and prevented material settlement throughout the long pipeline. Built with abrasion-resistant high-chrome components and a dual mechanical seal system, the pump operated continuously under heavy loads with minimal downtime.
The Result
The heavy-duty booster pump extended the effective pipeline reach by over 45%, enabling efficient material transport without the need for additional stations. Production rates averaged 300–350 cubic yards per hour, meeting project deadlines ahead of schedule. Operational costs were reduced by eliminating redundant pumps, while maintenance crews reported significantly fewer clogging incidents. The result was a more efficient, cost-effective, and reliable coastal reclamation operation.
Operating Levels
| IN FLOW | 1600 GPM |
| MAX FLOW | 5000 GPM |
| HEAD RANGE | Up to 240 ft |
| DISCHARGE SIZE | 10 inch |
| SUCTION SIZE | 12 inch |
| SOLIDS HANDLING | Solids up to 10 inches |
| MOTOR SPEED | 1200 RPM |
| PERCENT SOLIDS | Up to 40-70% Solids |
Sales Quote With Custom Pump Curve
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Frequently Asked Questions
What is the flow capacity of the 10-Inch 550HP Diesel-Powered Booster Pump?
This booster pump delivers between 1,600 and 5,000 gallons per minute (GPM), depending on slurry density, pipeline conditions, and operating head. It is designed to maintain consistent flow in demanding long-distance pumping applications.
How far can this booster pump extend a dredging pipeline?
While distance varies with project conditions, the heavy-duty booster pump is capable of extending pipeline reach by several miles. It maintains slurry velocity and prevents settlement, reducing the need for multiple smaller pump stations along the line.
What is the maximum solid size it can handle?
The 10-inch diesel booster pump can pass solids up to 9 inches in diameter, making it suitable for dredging, mining, and aggregate applications where debris, rocks, or other large particles are present.
Is this dredging booster pump suitable for abrasive or corrosive materials?
Yes. The pump is built from abrasion- and corrosion-resistant materials such as high-chrome, stainless steel, and duplex stainless steel. These options allow it to handle abrasive slurries like mine tailings or coal ash, as well as corrosive chemical streams.
What is the maximum head pressure this unit can achieve?
The 10-Inch 550HP Booster Pump is rated for heads up to 240 feet, ensuring reliable performance across extended pipeline distances, even in high-resistance conditions.
What is its production rate?
Under standard operating conditions, this unit achieves 300–350 cubic yards of material per hour, making it one of the most efficient diesel-powered booster pumps available for large dredging and industrial operations.
Can the 550 hp booster pump run continuously for 24/7 operations?
Yes. The diesel-powered, direct-drive system and heavy-duty build are designed for continuous, around-the-clock operation, provided that routine maintenance schedules are followed. This makes it highly reliable for long-term dredging and mining projects.
How is the mechanical seal protected from wear and failure?
The heavy-duty booster pump uses a dual mechanical seal system with tungsten or silicon carbide faces. It includes a self-contained flushing system to keep the seals lubricated and cool, significantly extending service life even in abrasive slurry environments.
What industries most benefit from this heavy-duty booster pump?
This model is widely used in dredging, mining, oil & gas, sand and aggregate processing, chemical plants, power utilities, agriculture, wastewater treatment, and environmental remediation. Its versatility comes from its ability to handle both long-distance pumping and high-solids content.
Are alternative power options available?
Yes. While this model is configured with a 550HP diesel direct-drive engine, EDDY Pump can customize industrial booster pump with electric or hydraulic power options depending on project needs, local regulations, or site-specific requirements.
