Electric Cable Deployed Pump With Water Jetting Agitator – 12 Inch

Model: 12-Inch JPE 12000 Electric Cable Deployed Pump with Jetting Ring

dredgesled

OPERATING LEVELS

MIN FLOW1800 GPM
MAX FLOW7000 GPM
HEAD RANGEUp to 200 ft
DISCHARGE SIZE12 inch
SUCTION SIZE14 inch
SOLIDS HANDLINGSolids up to 11 inches
MAX SPEED1800 RPM
PERCENT SOLIDSUp to 40-70% Solids
CU YD MATERIAL HR500-600
DREDGING DEPTHUp to 100 ft

RECOMMENDED SENSORS

  • Doppler Wireless Slurry Flow Meter to maintain stable plug free pipeline flow and maximize production



REQUIRED EQUIPMENT TO OPERATE ATTACHMENT

  • Jetting Ring Agitator. Water Pump Requirements, GPM 400-1000 at 150 PSI Max.
  • 12” material handling discharge hose



OPTIONAL EQUIPMENT TO ENHANCE OPERATION OF DREDGE

  • Doppler Wireless Slurry Flow Meter
  • Discharge line pressure gauge (0-150 psi)
  • “Quick Prime” Valve (requires small 24-volt air system)
  • Pivot mounted Discharge hose carrier (adaptable to most machines)
  • Cable Hung Unit Can Convert to be Compatible with Liner Safe Roller Attachment and Self Cleaning Mud Guard
  • Recirculation system for pre-mixing applications (requires small 24-volt air system)

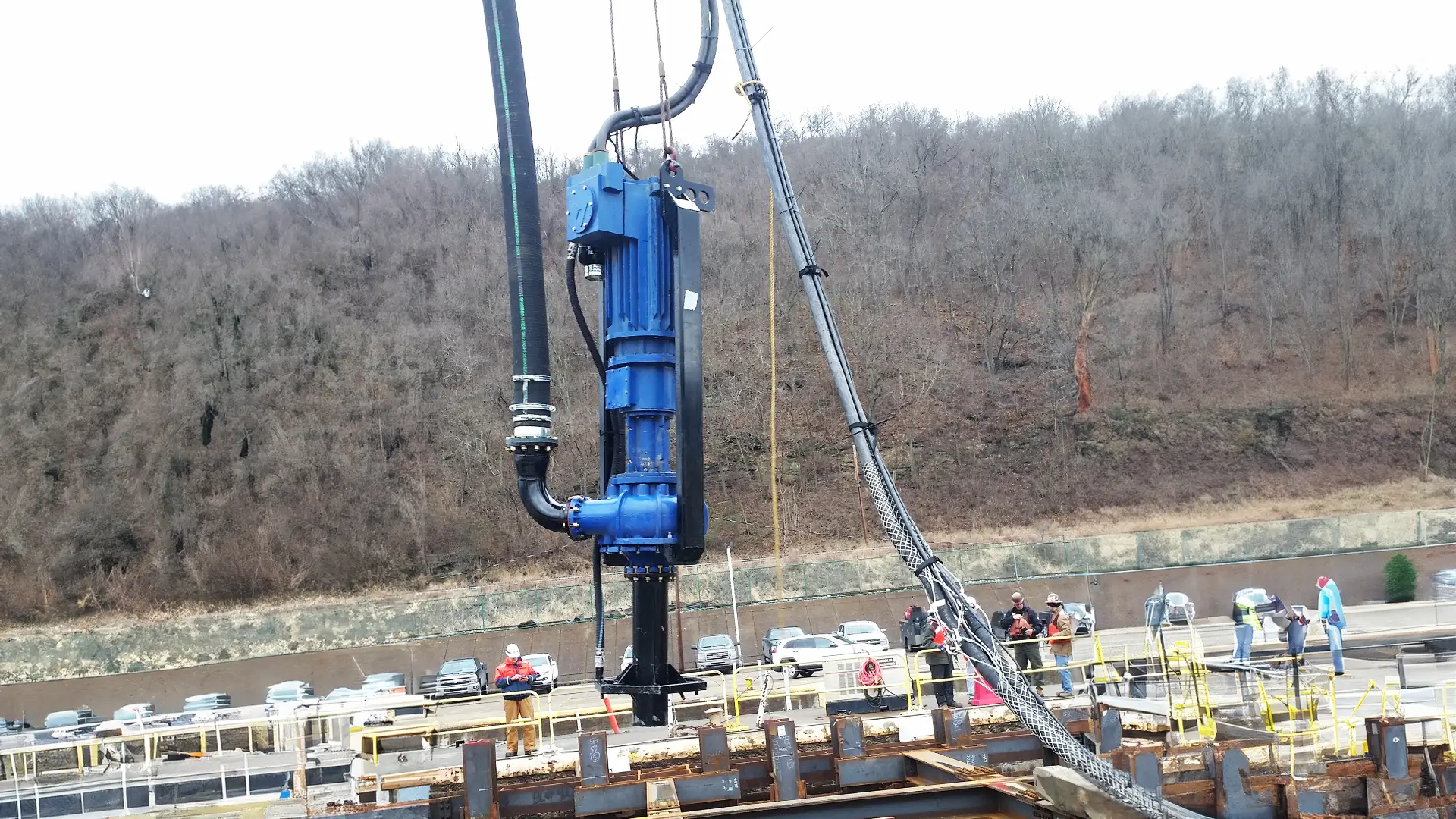

The Cable Deployed Pump with Jetting Ring Agitator is a non-clog pump designed for high solids industrial pumping applications. Our patented pump technology outperforms all centrifugal, vortex and positive displacement pumps in a variety of the most difficult pumping applications. Increase or decrease water flow and adjust jetting pattern to suit your project demands

Available in alternative power options and pump sizes depending on your application.

APPLICATIONS
• Barge Unloading
• Deep Water Dredging
• Mining
• Sand & Agg
• Oil & Gas
• Fly ash & Coal Ash

FEATURES & BENEFITS
• Non-Clog, High Viscosity, High
Specific Gravity, High Abrasives,
Low pH Pumping Design
• Transport 40-70% Solids
• Ability to pump objects of up to
9-inches in diameter

Fluid Pumped
• Sludge
• Slurry
• Drilling Mud
• Mine Tailings
• Grit
• Sand Mixtures​

GENERAL SPECS

Production: 4000-7000 GPM or 500-600 cubic yards of material per hour
Head with 700cc hydraulic motor (16” rotor) Up to 200 feet Up to 60.95m
Overall Weight (without optional equipment) 9,500 lbs 4,310 kg
Overall Length 191 inches 4.85 m
Overall Height 60 inches 1.5 m
Overall Width with discharge pipe removed 58 inches 1.47 m
Overall Width with discharge pipe mounted (right side) 71 inches 1.80 m
Carrier Weight Range 30 + tons 27,215+  kg
Standard Jetting Ring Diameter 36 inches .91m
Double seal with Sealed Barrier fluid tank (allow dry run) 3.5 inches 89 mm



JETTING RING HEAD SPEC SHEET





**GPM & VELOCITY CALCULATION BASED ON
4″ CENTRIFUGAL WATER PUMP, 760 GPM WITH 81′ HEAD

SIZE JETS PART #
EXF4K 16 16025
EXF6K, EXF8K, EXF10K 28 12882

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF EDDY PUMP CORPORATION. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF EDDY PUMP CORPORATION IS PROHIBITED.

PUMP CURVE

A pump curve is a graphical representation of a pumps ability to produce flow against a certain head. The science is matching a curve that is accurate for your project, leading to the proper pump selection and best efficiency. EDDY Pumps are primarily used for high solids, slurry, sludge, and dewatering.



EDDY Pump – 12 Inch HD 12000 Heavy Duty Slurry Pump – Pump Curve

4 inches electric dredge sled Graph

WE PUMP SOLIDS, NOT WATER
