Hydraulic Cable Deployed Pump With Water Jetting Agitator – 6 Inch
The JPH 6000 – 6-Inch Hydraulic Cable Deployed Pump with Jetting Ring is a heavy-duty, non-clog dredging system designed to handle solids ranging from 40% to 70% and pump objects up to 5 inches in diameter. Delivering up to 2,500 GPM at depths of 100 feet, it utilizes patented EDDY Pump technology and a jetting ring agitator to maximize production in demanding applications, such as deep-water dredging, mining, and barge unloading. With a robust double seal system, flexible hydraulic power options, and U.S.-made durability, the JPH 6000 sets the standard for efficiency and reliability in high-solids pumping.

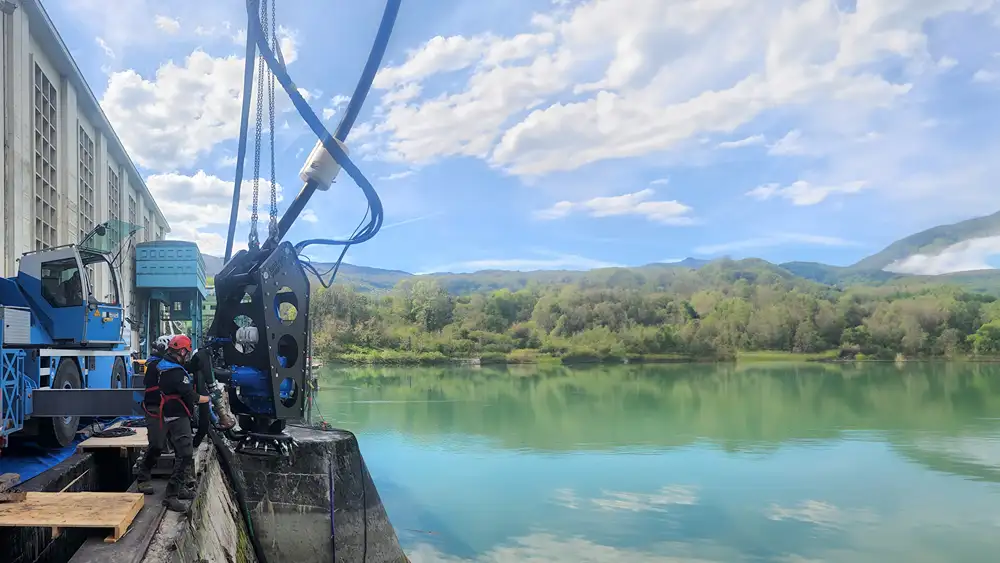

Key Features / Advantages
- Non-Clog Design – Patented EDDY Pump technology handles high-viscosity, high-specific-gravity, abrasive, and low-pH materials without clogging.
- High Solids Handling – Transports 40–70% solids by volume and can pump objects up to 5 inches in diameter, minimizing downtime caused by clogging.
- Strong Production Capacity – Delivers up to 2,500 GPM (150–200 cubic yards of material per hour) with dredging depths reaching 100 feet.

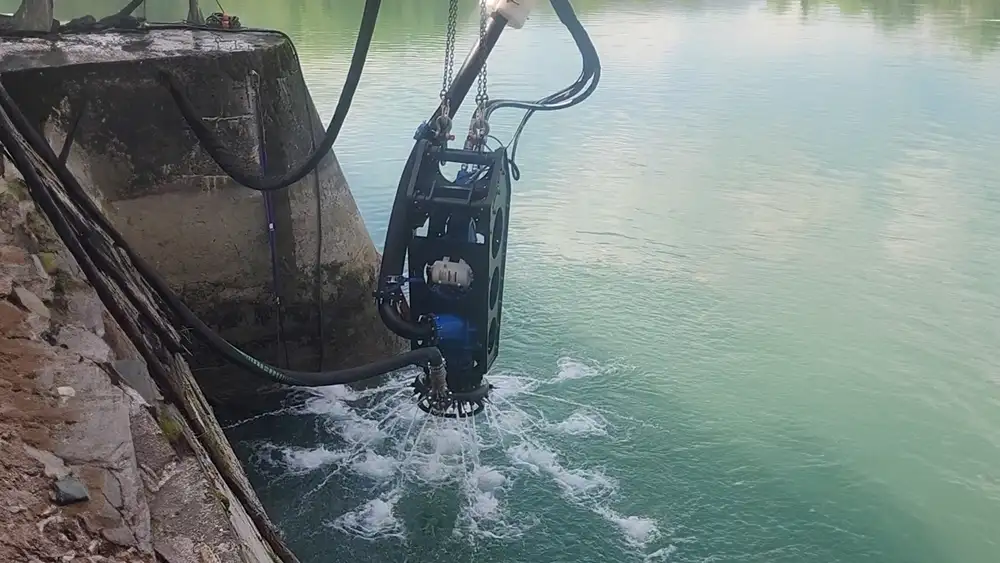

- Versatile Jetting Ring Agitator – Adjustable water flow and nozzle pattern improve material agitation and slurry consistency, optimizing production.
- Heavy-Duty Performance – Withstands harsh environments including mining, oil & gas, barge unloading, sand & aggregate, and ash handling applications.
- Durable Build – Built with a double mechanical seal system and sealed barrier fluid tank, allowing safe dry-run capability.
- Flexible Power Options – Compatible with excavator auxiliary hydraulic circuits or a dedicated hydraulic power unit (HPU).
- Modular & Adaptable – The cable-hung design can be easily converted with optional liner-safe roller attachments, self-cleaning mud guards, and recirculation systems.
- Enhanced Monitoring – Recommended integration with hydraulic pressure gauges, magnetic flow meters, and discharge line gauges for safe, efficient operation.
- Made in the USA – Designed and manufactured domestically, ensuring high quality, fast support, and reliability.

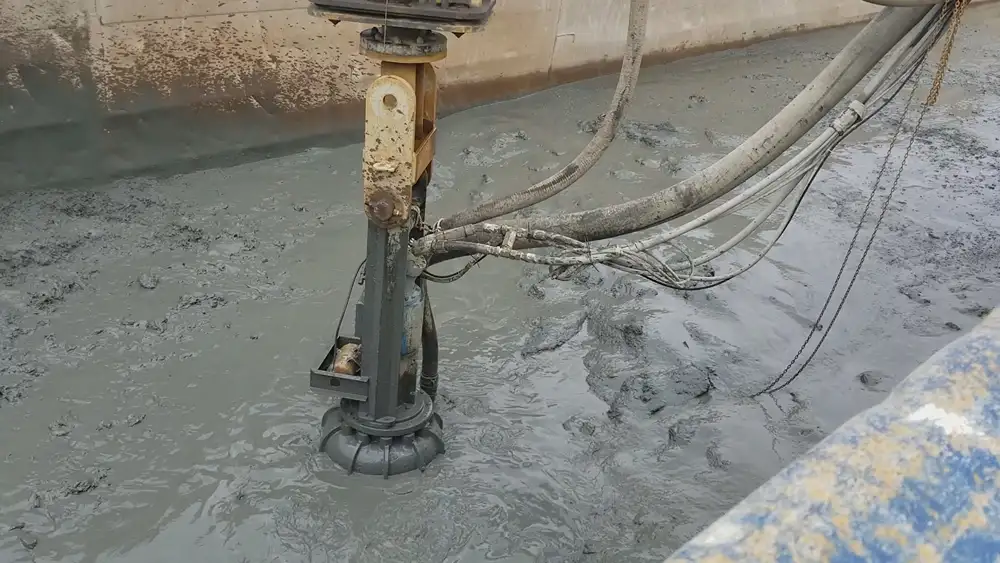

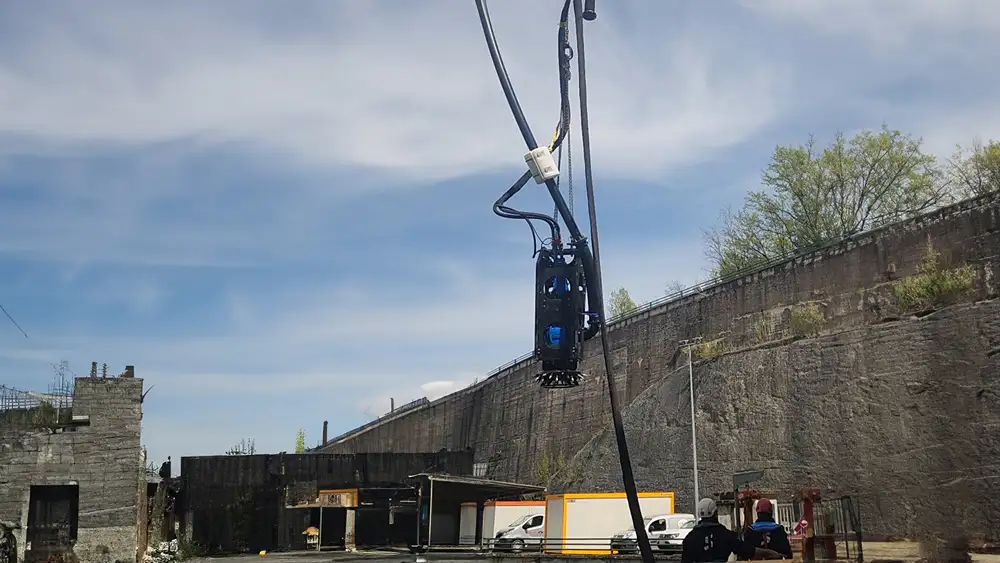

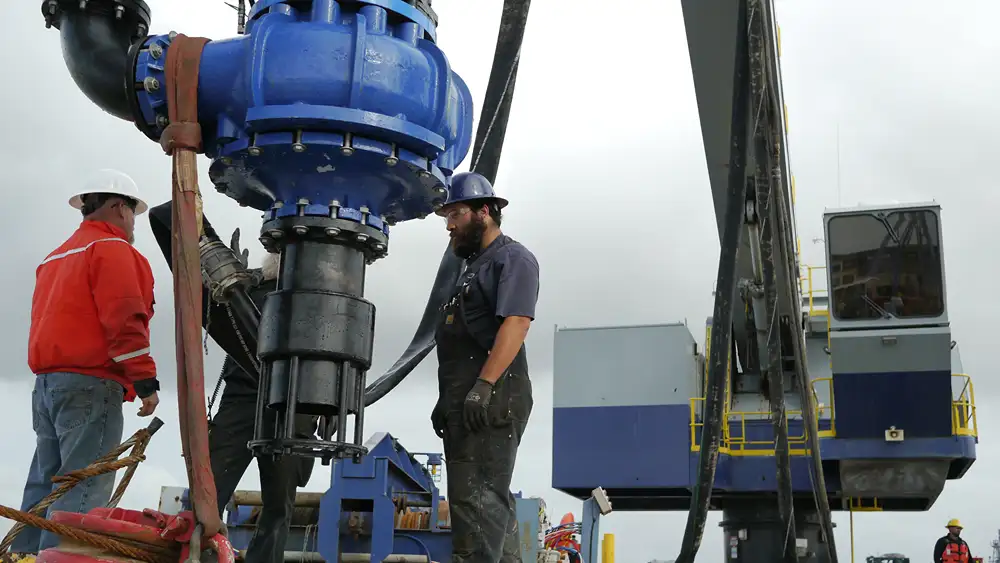

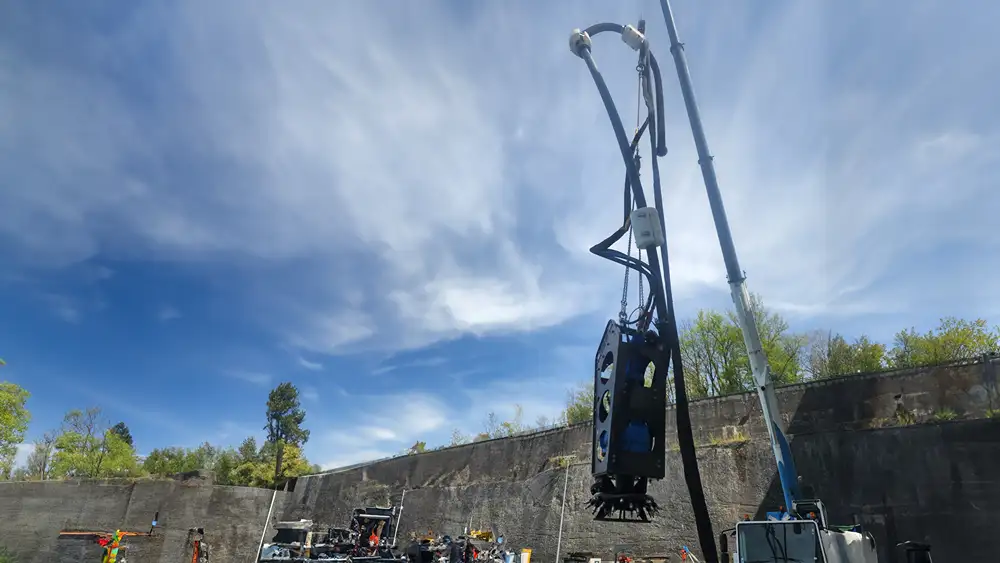

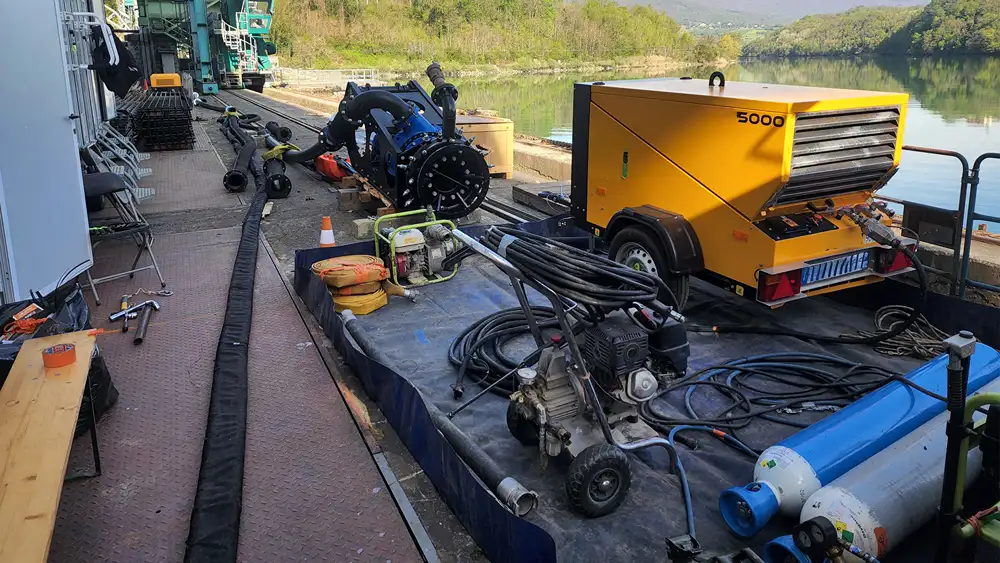

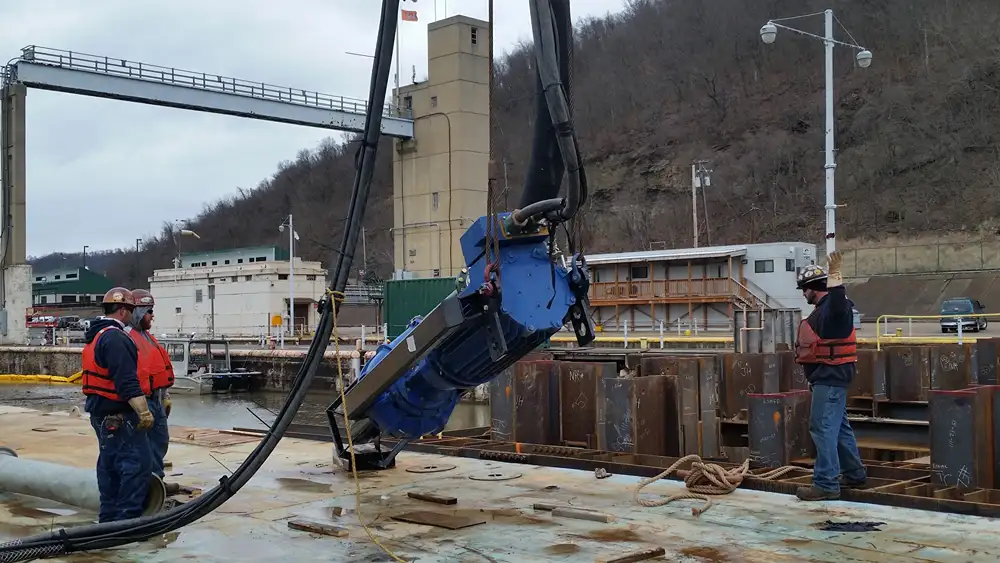

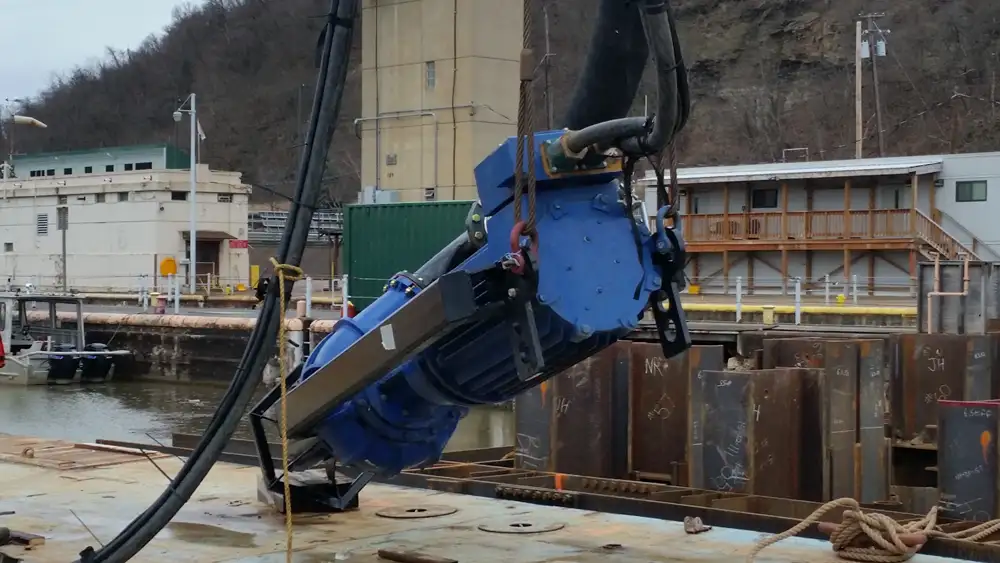

Gallery
Hydraulic Cable Deployed Pump With Water Jetting Agitator – 6 Inch
Technical Specifications
Performance Specifications
- Flow Capacity: 450 – 2,500 GPM
- Head Range: Up to 200 ft (61 m)
- Solids Handling: Up to 5-inch solids, 40–70% solids by volume
- Production Rate: 150–200 cubic yards of material per hour
- Maximum Speed: 1,800 RPM
- Dredging Depth: Up to 100 ft (30 m)
Physical Specifications
- Discharge Size: 6 inch (152 mm)
- Suction Size: 8 inch (203 mm)
- Overall Weight (without options): 4,800 lbs (2,177 kg)
- Overall Length: 113 in (2.87 m)
- Overall Height: 37 in (0.94 m)
- Overall Width: 28 in (0.71 m) without discharge pipe, 38 in (0.96 m) with pipe
- Carrier Weight Range: 20–45 tons (18,000–40,000 kg)
- Standard Jetting Ring Diameter: 36 in (0.91 m)
- Double mechanical seal system with sealed barrier fluid tank, allowing safe dry-run operation
Required Equipment
- Hydraulic Power: 75 GPM at 4,000 PSI (from excavator auxiliary circuit or HPU)
- Jetting Ring Water Pump: 400–1,000 GPM at max 150 PSI
- 6-inch material handling discharge hose and hydraulic lines plumbed to the boom tip
- Crossover check valve to protect the hydraulic motor and prevent rotor damage
Recommended Accessories
- Hydraulic Pressure Gauge: 0–6,000 PSI for pump circuit monitoring
- Magnetic Flow Meter: Ensures stable, plug-free pipeline flow and production efficiency
- Discharge Line Pressure Gauge: 0–150 PSI for system performance tracking
- “Quick Prime” Valve (requires a small 24V air system) for faster start-up
- Pivot-Mounted Discharge Hose Carrier, adaptable to most carriers
- Liner-Safe Roller Attachment and Self-Cleaning Mud Guard for specialized dredging
- Recirculation System for pre-mixing applications (requires 24V air system)
Jetting Ring Specifications
| Jetting Ring Size | Number of Jets | Flow per Jet (GPM) | Total Flow (GPM) | Velocity (ft/sec) | Inlet Flange Size | Inlet Flange Bolts | Part Number |
| Small Ring | 16 | 47.5 | 760 | 108 | 3″ | 4 Bolt, 150# Class | EXF4K 16 16025 |
| Large Ring | 28 | 27 | 760 | 62 | 4″ | 8 Bolt, 150# Class | EXF6K/8K/10K 28 12882 |
EDDY Pump – 6 Inch HD 6000 Heavy Duty Slurry Pump – Pump Curve
PUMP CURVE
A pump curve provides a clear view of how the pump performs across varying head and flow levels, guiding correct system configuration. For the 6 Inch JPH 6000 Hydraulic Cable Deployed Pump, selecting the correct curve ensures dependable output, strong solids transport, and efficient slurry movement in deep water or high load conditions supported by the jetting ring agitator.
Technical Drawings & Resources
EDDY Pump 16-Jet Ring Head Specs Sheet – 3″ Inlet
EDDY Pump 28-Jet Ring Head Specs Sheet – 4″ Inlet
Hydraulic Cable-Deployed Jetting Ring Pump
Comparison Table
| Model | Discharge Size | Flow Range (GPM) | Max Head (ft) | Solids Handling (inches) | Production Rate (yd³/hr) | Max Speed (RPM) | Percent Solids | Dredging Depth (ft) | Pump Weight (lbs) | Carrier Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| JPH 4000 | 4 inch | 250–1200 | 160 | 3 | 75–150 | 1800 | 40–70% | 100 | 3,300 | 20–45 tons |
| JPH 6000 | 6 inch | 450–2500 | 200 | 5 | 150–200 | 1800 | 40–70% | 100 | 4,800 | 20–45 tons |
| JPH 8000 | 8 inch | 1400–3600 | 230 | 7 | 250–300 | 1200 | 40–70% | 100 | 6,800 | 60–94 tons |
| JPH 10000 | 10 inch | 1600–5000 | 240 | 9 | 300–350 | 1200 | 40–70% | 100 | 7,500 | 20+ tons |
| JPH 12000 | 12 inch | 2600–7300 | 180 | 11 | 500–600 | 900 | 40–70% | 100 | 9,500 | 30+ tons |
Industries Served
Deep-Water Dredging
With the capability to operate at depths of up to 100 feet, the JPH 6000 is purpose-built for deep-water dredging projects in rivers, lakes, and coastal zones. Its non-clog rotor design and powerful jetting ring agitator allow efficient removal of compacted sediments, silt, and sand, ensuring consistent production even in challenging marine environments where standard dredges face limitations.
Mining Operations
Mining sites produce highly abrasive slurries such as mine tailings, ores, and high-specific-gravity materials that can quickly wear out conventional pumps. The JPH 6000 is engineered to withstand these extreme conditions, handling up to 70% solids and reducing downtime by reliably transporting dense slurries, which helps mining operations maintain continuous production and control operating costs.

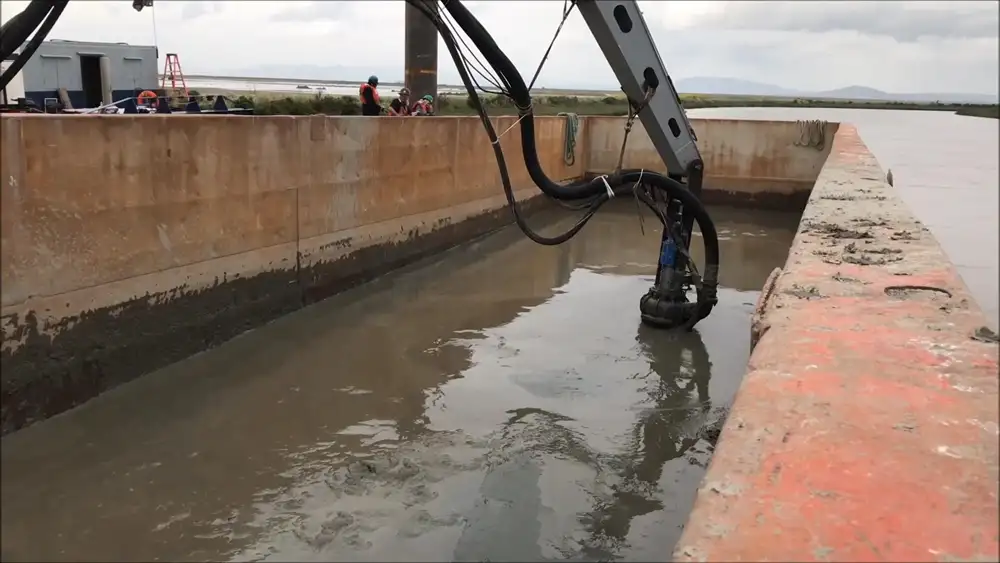

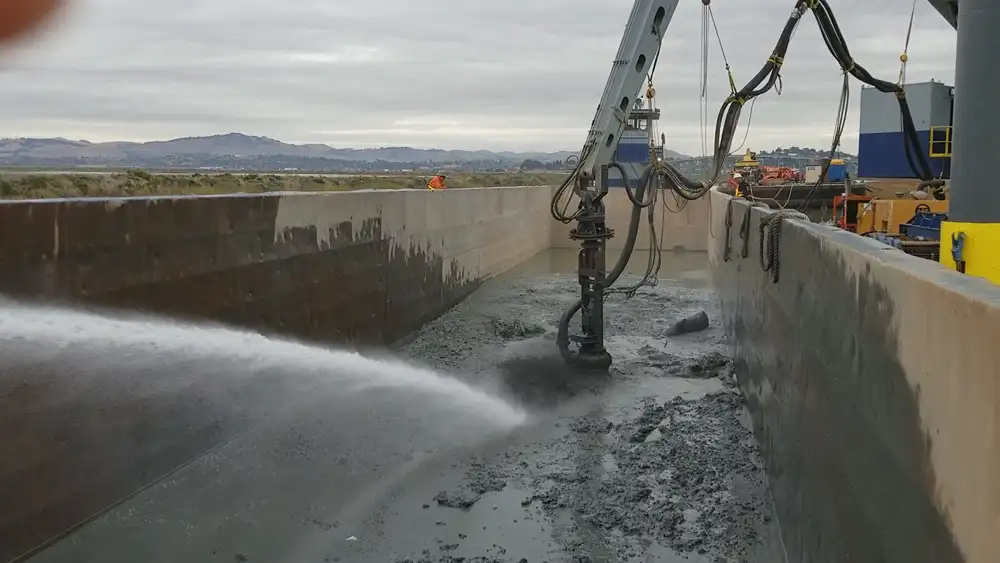

Barge Unloading
Unloading barges of dredged sediment, coal, or aggregates can be time-consuming without the right equipment. The JPH 6000 accelerates the process with its ability to pump 40–70% solids and pass objects up to 5 inches in diameter, significantly reducing unloading times while minimizing the risk of clogs. Its high flow rates make it an efficient solution for ports, terminals, and bulk material handling facilities.
Sand and Aggregate Processing
Sand and aggregate operations rely on equipment that can endure highly abrasive environments. The JPH 6000 offers high-capacity pumping of sand, gravel, and slurry mixtures while reducing wear and tear on its components. This reliability makes it an essential tool for quarries, sand pits, and aggregate processing plants where continuous throughput and minimized downtime are critical.
Oil and Gas Industry
Drilling activities and production facilities generate large volumes of drilling mud, produced water, and slurries with varying levels of abrasives and solids. The JPH 6000 is designed to efficiently move these heavy mixtures, supporting waste management, site cleanup, and environmental compliance. Its corrosion-resistant and non-clog design ensures dependable operation in both onshore and offshore environments.
Fly Ash and Coal Ash Handling
Power plants generate fly ash and bottom ash slurries that are highly abrasive and difficult to transport. The JPH 6000 is specifically suited for these conditions, delivering consistent pumping performance that enables the safe transfer of ash for disposal or beneficial reuse in construction and land reclamation. Its durability and high solids-handling capability reduce maintenance costs and increase operational uptime.
Municipal Sludge Management
Wastewater treatment facilities require reliable pumping of thick sludge, grit, and biosolids. The JPH 6000 provides an efficient solution with its non-clog rotor and high-solids handling design, ensuring uninterrupted operation even with challenging municipal waste streams. This reliability translates into improved plant efficiency, reduced downtime, and better overall performance in sludge management systems.
Land Reclamation and Coastal Protection
Large-scale projects such as beach nourishment, wetland restoration, and shoreline stabilization demand pumps that can move vast quantities of sand and sediment. The JPH 6000 delivers the power and endurance needed to transport dredged material over long distances, making it ideal for environmental and infrastructure applications where consistent output and reliability are critical for success.
Coastal Land Reclamation Project
Case Study
Challenge
A large-scale coastal development initiative required the transfer of millions of cubic yards of sand for land reclamation and shoreline stabilization. Conventional dredging pumps on-site were unable to sustain the required flow rates, and frequent clogging from abrasive sand mixtures caused costly delays and downtime. The project required a high-performance dredge pump capable of withstanding continuous, heavy-duty operation in an abrasive marine environment.
Solution
The contractor deployed the EDDY Pump JPH 6000 – a 6-inch hydraulic cable deployed pump with a Jetting Ring to meet the project’s demanding requirements. With the ability to pump up to 2,500 GPM and handle 40–70% solids, the EDDY Pump system provided the power and reliability needed to move sand efficiently over extended discharge distances. The integrated jetting ring agitator maintained consistent slurry suspension, while the patented non-clog rotor design minimized interruptions caused by blockages.
Result
The use of the EDDY Pump JPH 6000 enabled uninterrupted high-volume sand pumping throughout the reclamation project. Production goals were met on schedule, land reclamation was completed successfully, and shoreline reinforcements were established with reduced equipment downtime. By integrating EDDY Pump technology, the contractor achieved significant operational efficiency, extended equipment life, and lowered overall project costs.
Call for sales or support
If you need assistance with pump selection, sales or engineering support, call 619-404-1916.
Talk To About Any Question?
Frequently Asked Questions
What makes the EDDY Pump 6-inch hydraulic cable deployed pump different from conventional dredge pumps?
The JPH 6000 hydraulic pump uses EDDY Pump’s patented non-clog rotor technology, which allows it to pump higher percentages of solids (40–70%) and larger objects (up to 5 inches in diameter) compared to standard centrifugal or vortex pumps. This design ensures more uptime, less clogging, and superior performance in abrasive and viscous applications.
What types of material can the JPH 6000 hydraulic pump handle?
This 6-inch hydraulic agitator pump is designed for the most demanding slurry applications, including sand, silt, grit, drilling mud, mine tailings, fly ash, coal ash, sludge, and other high-viscosity or abrasive mixtures. Its heavy-duty design makes it suitable for industries such as mining, dredging, oil and gas, power generation, and wastewater treatment.
What is the maximum dredging depth for the hydraulic cable deployed dredge pump?
The 6-inch hydraulic agitator pump is capable of dredging at depths of up to 100 feet, making it well-suited for deep-water projects where standard pumps are unable to maintain performance or reliability.
How much production can the hydraulic pump with jetting ring deliver?
Depending on site conditions, the hydraulic submersible pump with jetting system can achieve flow rates of up to 2,500 GPM and production rates of 150–200 cubic yards of material per hour. This ensures efficient sediment removal and high output for demanding projects.
What are the hydraulic power requirements to operate the 6-inch hydraulic cable deployed pump?
The pump requires 75 GPM at 4,000 PSI from an excavator’s auxiliary circuit or a dedicated hydraulic power unit (HPU). The jetting ring agitator also requires 400–1,000 GPM at 150 PSI from a separate water pump to ensure optimal slurry agitation.
Can the JPH 6000 handle abrasive and corrosive materials?
Yes. The pump is designed specifically for abrasive, corrosive, and low-pH materials. Its non-clog rotor, durable construction, and double mechanical seal system, along with a sealed barrier fluid tank, provide superior protection in extreme operating environments.
What accessories are recommended for the best performance?
To maximize efficiency and protect the system, EDDY Pump recommends accessories such as magnetic flow meters for monitoring slurry movement, hydraulic pressure gauges, discharge line pressure gauges, and optional systems like quick-prime valves, recirculation systems, and liner-safe roller attachments.
Is the cable-deployed pump with jetting ring easy to integrate with existing equipment?
Yes. The JPH 6000 hydraulic pump can be cable-deployed and is compatible with excavator auxiliary hydraulics or stand-alone HPUs. Optional attachments, such as pivot-mounted hose carriers and self-cleaning mud guards, also enhance adaptability to different machines and site conditions.
What maintenance requirements should be expected?
The EDDY Pump 6-inch hydraulic cable deployed pump is designed to minimize maintenance needs compared to traditional pumps. Routine checks of hydraulic pressure, seals, and accessory instruments are recommended, but the non-clog design and abrasion-resistant construction significantly reduce the frequency of shutdowns and repairs.
Where is the cable-deployed slurry pump with agitator manufactured?
All EDDY Pump equipment, including the JPH 6000 hydraulic pump, is proudly designed and manufactured in the USA, ensuring high-quality engineering, reliable support, and compliance with U.S. standards for heavy-duty industrial equipment.
